Hanwha Samsung SMT Chip Mounter SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2 Pick And Place Machine

Product Details

Place of Origin: South Korea

Brand Name: SAMSUNG

Model Number: S1 S2

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.carton box with foam protect 2.as your order

Delivery Time: 3-5 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000 Piece/Pieces per Week

Get Best Price
Highlight:

Pick And Place Samsung Chip Mounter

,

SM471PLUS Samsung Chip Mounter

,

SM482PLUS SMT Chip Mounter

Product Name:
SAMSUNG Hanwha DECAN S1 S2 Pick And Place Machine
Brand Name:
Samsung Hanwha
Model:
SM471PLUS SM481PLUS SM482PLUS,DECAN S1 S2
Type:
Smt Pick And Place Machine
Core Components:
Hanwha DECAN S1
Model Number:
DECAN S1 S2
PCB Size:
L510xW460mm
Place Of Origin:
South Korea
Application:
For Smt Line
High Speed:
92,000 CPH(HS10 Head)
Product Name:
SAMSUNG Hanwha DECAN S1 S2 Pick And Place Machine
Brand Name:
Samsung Hanwha
Model:
SM471PLUS SM481PLUS SM482PLUS,DECAN S1 S2
Type:
Smt Pick And Place Machine
Core Components:
Hanwha DECAN S1
Model Number:
DECAN S1 S2
PCB Size:
L510xW460mm
Place Of Origin:
South Korea
Application:
For Smt Line
High Speed:
92,000 CPH(HS10 Head)
Hanwha Samsung SMT Chip Mounter SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2 Pick And Place Machine

SMT Pick And Place Machine SAMSUNG Hanwha SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2



Decan S1 S2 Pick And Place Machine

Building upon the success of the DECAN S1, the Hanwha DECAN S2 takes performance to the next level. This advanced pick and place machine incorporates even more features and improvements, offering enhanced precision and productivity. With its dual-gantry design and increased number of placement heads, the DECAN S2 can handle complex assembly requirements and achieve even higher placement speeds.



Both the DECAN S1 and DECAN S2 machines from Hanwha are known for their reliability, versatility, and efficiency. They are designed to meet the demanding needs of electronics manufacturers, delivering outstanding performance and quality results. Whether you are producing small-scale electronics or high-volume production, Hanwha DECAN S1 and DECAN S2 pick and place machines are capable of meeting your specific requirements and optimizing your manufacturing processes.



Specification of Hanwha DECAN S1 S2

Product name SAMSUNG Hanwha DECAN S1 S2 pick and place machine
Brand Name samsung hanwha
Model DECAN S1 S2
Type smt pick and place machine
Core Components Hanwha DECAN S1
Model Number DECAN S1 S2
PCB Size L510xW460mm
Place of Originl South Korea
Application for smt line
High Speed 92,000 CPH(HS10 head)



Model Name SM471plus SM481plus SM482plus
Spindles 10 Spindles ×2 Gantry 10 Spindles ×1 Gantry 6 Spindles ×1 Gantry
Placement Speed 78,000CPH(Optimum) 40,000CPH(Optimum) 30,000CPH(Optimum)
Placement Accuracy ±50μm@μ±3σ ±30μm@μ±3σ ±30μm@μ±3σ
Applicable Parts 0402 ~ 14mm(H 12mm) 0402 ~ 42mm(H15mm) 0402 ~ 55mm(H 15mm)



Applicable PCB

Max. 510(L) x 460(W)(Standard) Max. 460(L) x400(W)(Standard) Max. 460(L) x400(W)(Standard)
  Max. 610(L) x 460(W)(Option) Max. 1500(L) x 460(W)(Option) Max. 1200(L) x 510(W)(Option)
Dimension(mm) 1650×1690×1458 1650×1680×1530 1650×1680×1458

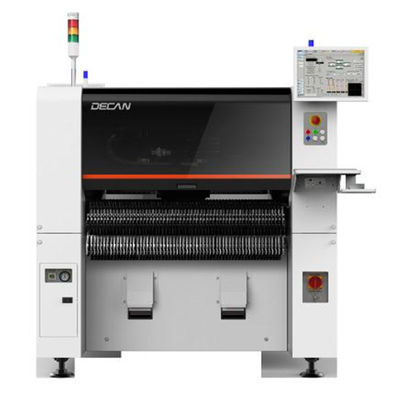

Hanwha DECAN S1 S2 CHIP MOUNTER MACHINE

Hanwha Pick and place machine DECAN S2, Samsung Pick and place machine DECAN S2, Hanwha chip mounter

DECAN S2, Hanwha (Samsung chip mounter) chip mounter DECAN S2 has better area capacity than competitors'

similar equipment, * optimized High-speed placement of small components; The DECAN S2 high-speed chip

placement machine is equipped with 10 shafts per head and is suitable for dual cantilever, magnetically levitated

high-performance placement machines, which can achieve the highest speed in the world's same-class products.

92,000CPH. Welcome to "Hanwha decan s2, original Samsung high speed placement machine, Hanwha magnetic

suspension pick and place machine"

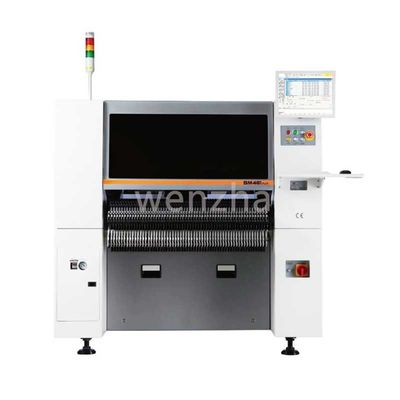

The SM482PLUS can perform high-speed placement of chips at 40,000CPH and QFPs at one per 1.1 seconds, respectively (each at optimum speed) by applying the on-the-fly recognition technology patented by Techwin, which enables component placement at the highest speed among all medium speed component placers. With one-gantry structure having a high-speed piano head with 10 nozzles,the machine can be operated with minimum manpower using one side of the machine. Being able to produce long boards with lengths of up to 1,500mm, the machine boasts of its applicability to the largest PCBs among SM series component placers.



Hanwha Samsung SMT Chip Mounter SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2 Pick And Place Machine 0



Hanwha Samsung SMT Chip Mounter SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2 Pick And Place Machine 1Hanwha Samsung SMT Chip Mounter SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2 Pick And Place Machine 2



Hanwha Samsung SMT Chip Mounter SM471PLUS SM481PLUS SM482PLUS DECAN S1 S2 Pick And Place Machine 3
