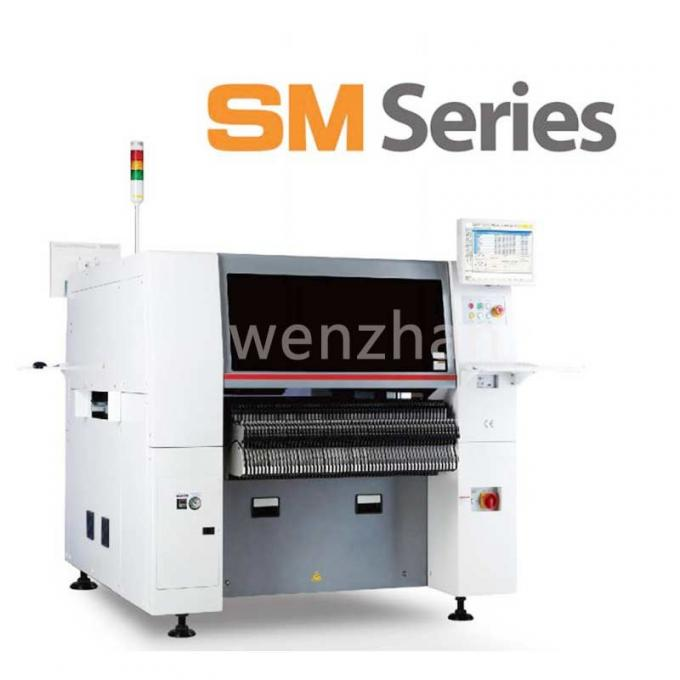

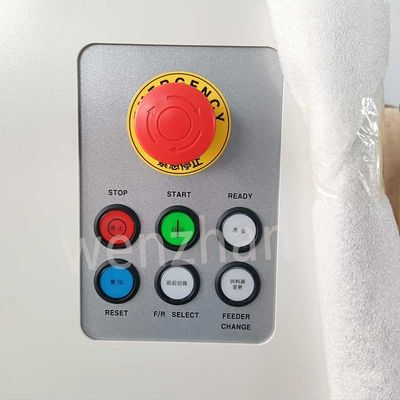

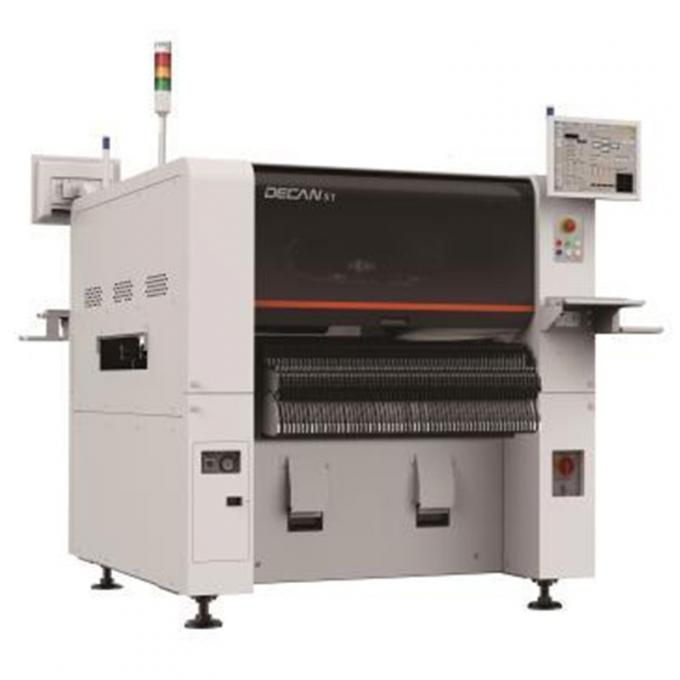

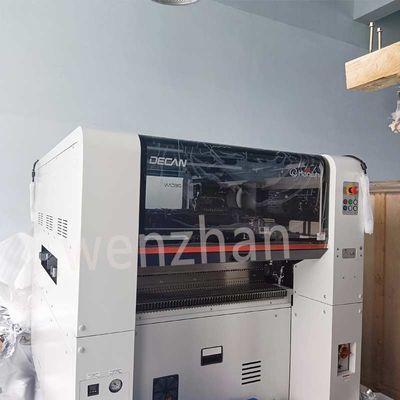

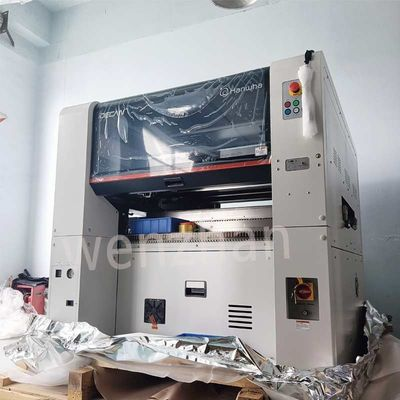

The machine integrates multiple functional designs to support stable daily operation of SMT production lines, covering placement consistency, production efficiency, and maintenance convenience.

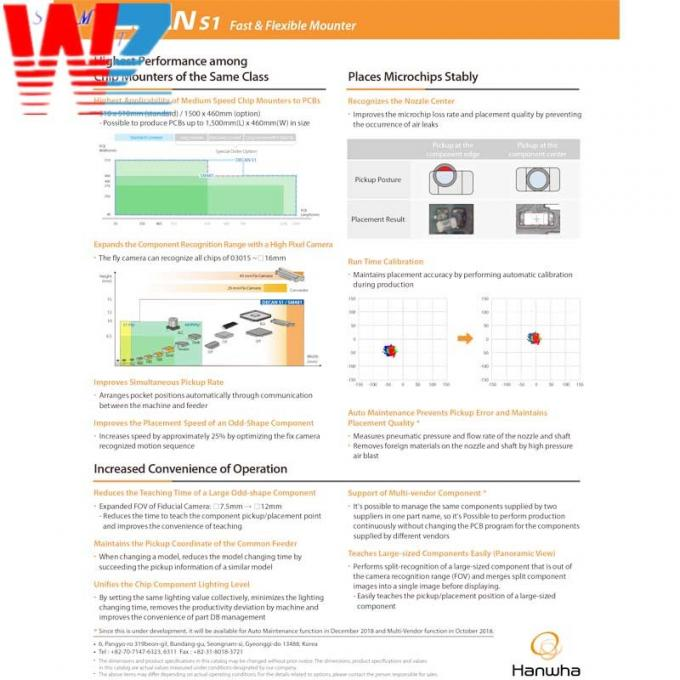

The DECAN S1 is equipped with a nozzle center recognition function, which reduces microchip loss rate and improves placement consistency by identifying nozzle position during operation. A real-time calibration mechanism runs automatically during production to maintain long-term placement accuracy, reducing the frequency of manual calibration. The fly camera system recognizes chip components ranging from 03015 to 16mm, supporting fast recognition for small-sized components.
For odd-shaped and large-sized components, the machine optimizes the motion sequence of the fly camera recognition process, increasing placement speed by approximately 25% compared with unoptimized modes. For components that exceed the camera’s field of view (FOV), the panoramic view function performs split recognition and merges split component images into a complete display, supporting visual teaching for large-sized components and simplifying setup procedures.
The machine communicates with feeders automatically to adjust pocket positions, which improves the simultaneous pickup rate of components. It retains pickup coordinate data for common feeders, so that when switching between similar product models, the system inherits existing pickup information to reduce changeover time. A unified lighting level setting for chip components allows batch adjustment of lighting parameters, minimizing lighting adjustment time during model switch and reducing productivity deviation between different machines.
The built-in auto-maintenance system measures pneumatic pressure and flow rate of nozzles and shafts in real time. It removes foreign materials on nozzle and shaft surfaces via high-pressure air blast, reducing manual cleaning frequency. The machine also supports multi-vendor component management: components supplied by two different vendors can be managed under one part name, enabling continuous production without modifying component programs for different supply sources.

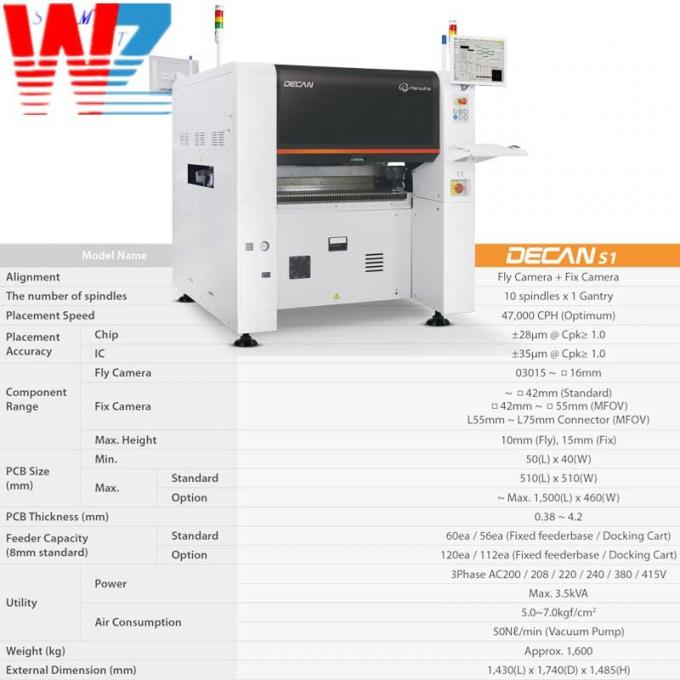

Product name | SAMSUNG Hanwha DECAN S1 pick and place machine |
|---|---|
Brand Name | samsung hanwha |
Model | DECAN S1 |
Type | smt pick and place machine |
Core Components | Hanwha DECAN S1 |
Model Number | DECAN S1 |
PCB Size | L510xW460mm |
Place of Originl | South Korea |
Application | for smt line |
High Speed | 92,000 CPH(HS10 head) |
Model Name | SM471plus | SM481plus | SM482plus |
|---|---|---|---|
Spindles | 10 Spindles *2 Gantry | 10 Spindles *1 Gantry | 6 Spindles *1 Gantry |
Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
Dimension(mm) | 1650*1690*1458 | 1650*1680*1530 | 1650*1680*1458 |
Parameter | Specification | Test Condition |
|---|---|---|
Placement Speed | 47,000 CPH | Optimum operating condition |
Spindle & Gantry | 10 spindles × 1 gantry | Standard configuration |
Chip Placement Accuracy | ±28μm | Cpk ≥ 1.0 |
IC Placement Accuracy | ±30μm | Cpk ≥ 1.0 |
Place of Origin | South Korea | - |
Category | Specification |
|---|---|
Standard PCB Size | L510 × W510mm |
Maximum PCB Size (optional configuration) | L1,500 × W460mm |
Component Size Range | 03015 - □55mm (H15mm), L75mm for long components |
The DECAN S1 is suitable for SMT assembly lines in multiple industrial sectors, including consumer electronics, automotive electronics, industrial control, and communication equipment. It supports both standard PCB production and long PCB production, adapting to both multi-variety small-batch and mid-to-high volume production modes. For electronic manufacturing service providers and in-house production facilities, the machine balances placement speed and precision to meet conventional SMT assembly requirements.
Relevant support services are available for commercial procurement users. The supplier provides technical support from factory-certified engineers, along with matching SMT consumables and spare parts supply. Warranty service and delivery terms can be confirmed through consultation according to specific procurement requirements.
Under optimum operating conditions with the standard 10-spindle single gantry configuration, the Hanwha DECAN S1 achieves a placement speed of 47,000 CPH.
The standard configuration supports PCBs up to L510 × W510mm. With optional configuration, the machine can handle long PCBs up to L1,500 × W460mm.
The machine processes components from 03015 package to 55mm square components with a maximum height of 15mm, and supports long components up to 75mm in length.
Yes, the multi-vendor management function allows components from two different suppliers to be managed under one part name, supporting continuous production without adjusting component programs.
