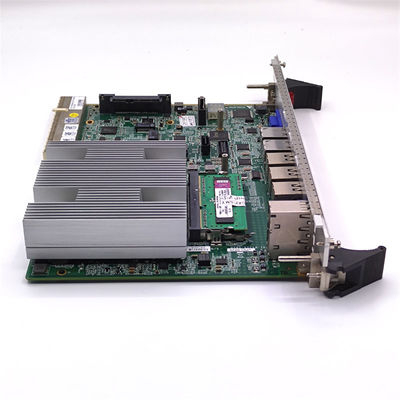

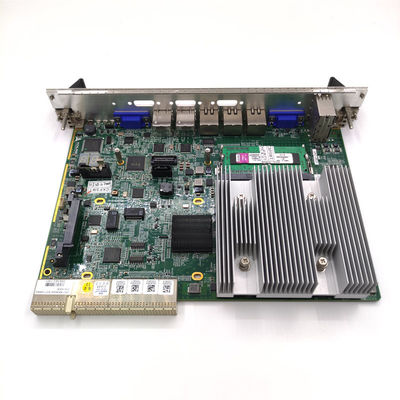

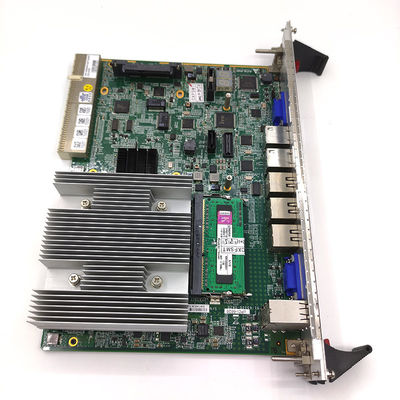

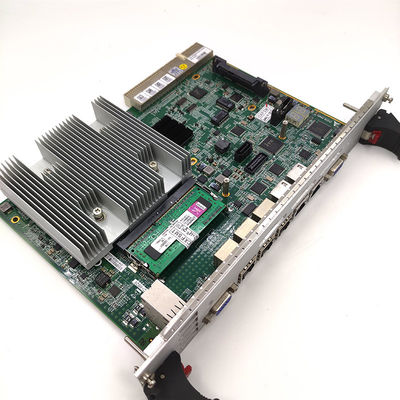

The Samsung SM482 head control board is a dedicated SMT machine part designed for the Samsung SM482 series surface mounter. As a core electronic component of the placement head system, the board card is responsible for transmitting control signals, managing head motion instructions, and coordinating the operation of suction nozzles and related actuators. It serves as a direct replacement part for equipment maintenance, fault repair, and component upgrade in SMT production lines.
This head control board is designed to fit the original hardware interface of Samsung SM482 surface mounters. It is suitable for electronic manufacturing plants, SMT equipment maintenance service providers, and industrial component distributors that operate Samsung SMT equipment. For production lines that run continuous SMT assembly tasks, having a spare head control board on hand can reduce equipment downtime caused by component failure and support consistent line operation.

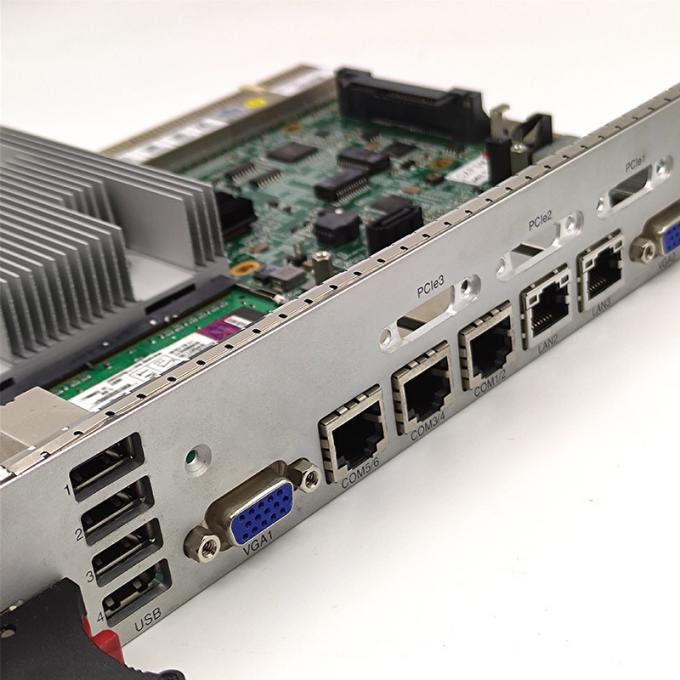

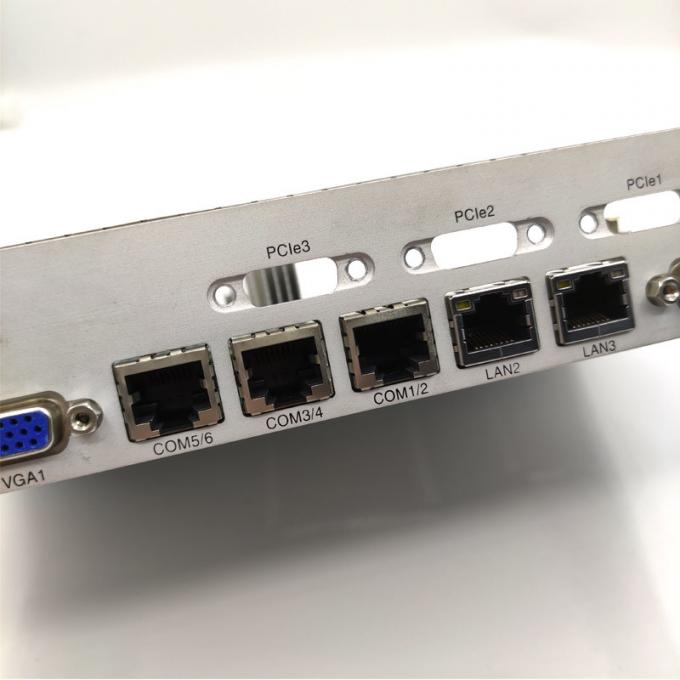

The board card is equipped with multiple standard interfaces to connect with different modules of the placement machine. It includes three PCIe slots labeled PCIe1, PCIe2 and PCIe3, which are used for expansion connection and data transmission with internal functional modules. For network communication, the board provides two LAN ports marked LAN2 and LAN3, supporting data interaction with the machine host and production line control system.
For serial communication, the board is configured with three sets of COM ports: COM1/2, COM3/4 and COM5/6, which adapt to the connection requirements of different sensors and actuator components. It also integrates one VGA1 interface for debugging display and one USB interface for parameter configuration and data import. All interface positions follow the layout of the original machine, which supports direct installation without additional modification to the equipment housing.
Item | Specification |
|---|---|
Name | Samsung SM482 Head Control Board Card |
Model | Sm482 Board Card |
Brand | SAMSUNG |
Specification | Smt Machine Parts |
Condition | New, New/used |
Stock | Large |
Package | Carton Box With Foam Protect |
Delivery | Ups,dhl,fedex,as Required |
Warranty | 3 Months |
Payment | T/T before shipment |
Shipment | on-time shipment |
Quality | Top Qualiy |
 |  |
Each board card is packed in a carton box with foam protection inside. The foam lining is shaped to fit the board contour, which can fix the product position during transportation and reduce impact from vibration and collision. The outer carton provides additional physical protection against moisture and extrusion during long-distance transit.
For delivery, multiple international express options are available including UPS, DHL and FedEx. Business buyers can select the corresponding carrier according to their destination, delivery cycle requirements and cost budget. Products with available stock can be arranged for shipment after payment confirmation. For bulk purchase orders, the shipment schedule will be confirmed with the buyer in advance to match their production planning.
This product comes with a 3-month warranty period. The warranty covers manufacturing defects in components and workmanship that appear under normal use conditions. During the warranty period, buyers can contact the supplier for support regarding product quality issues confirmed by technical inspection. Damage caused by improper installation, unauthorized modification, or artificial misoperation is not covered by the warranty.
The payment term is T/T before shipment. Buyers need to complete the payment according to the proforma invoice provided by the supplier. After the payment is received and verified, the warehouse will arrange product inspection and delivery procedures. For repeat enterprise customers, alternative payment arrangements can be discussed based on cooperation history.
This head control board is primarily designed for the Samsung SM482 series surface mounter. Buyers are recommended to confirm the original board model and interface layout of their equipment before placing an order, to ensure matching with the product specifications.
For in-stock items, the product can be shipped within 1 to 3 working days after payment confirmation. The total delivery time depends on the destination address and the selected express carrier. For orders with special requirements, the specific delivery schedule will be confirmed separately.
Each board card undergoes basic functional inspection before shipment to verify interface connectivity and power-on status. The inspection process follows standard spare parts delivery procedures to ensure the product matches the listed specifications when it leaves the warehouse.
