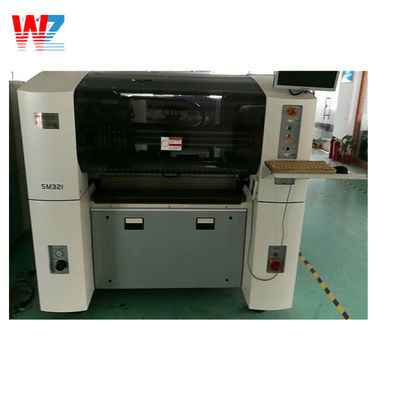

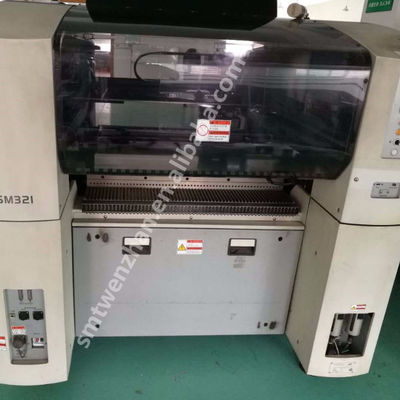

SAMSUNG HANWHA CHIP MOUNTER SM321 PICK AND PLACE MACHINE

Quantity:




Inquire Add to Basket

52000CPH samsung pick place machine SM321 samsung pick place machine 52000CPH samsung chip mounter

Product Details

Highlight:

52000CPH samsung pick place machine

,

SM321 samsung pick place machine

,

52000CPH samsung chip mounter

Product Name: SAMSUNG SM321 Pick And Place Machine

Model Number: SM321

Brand: Samsung

Condition: Used, New

Core Components: Motor

Quality: Top

Warranty: 3 Months

Type: SMT Machine Related Products

Port: Shenzhen

Delivery: Ups,dhl,fedex,as Your Order

Product Description

Detailed Specifications And Features

SAMSUNG SM321 Pick And Place Machine Smt Mounter

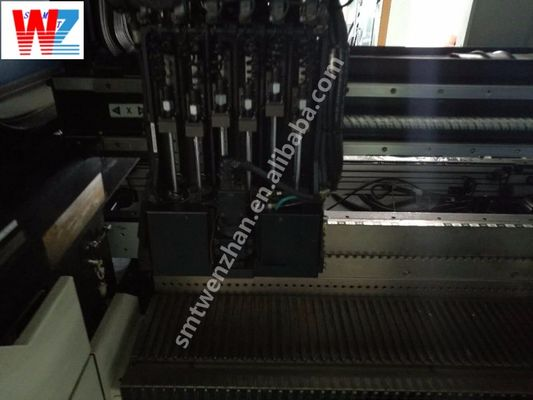

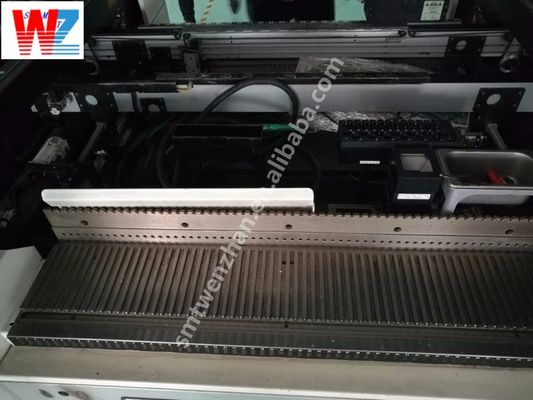

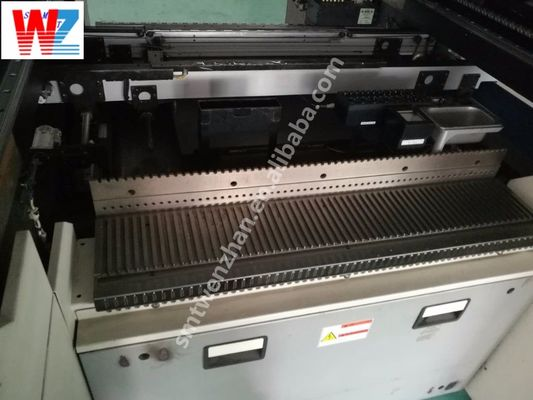

Samsung SMT SM321S using Windows XP operating system, the best production speed of 52,000 CPH, Dual-arm Y-axis dual-servo drive system, arms a total of 16 placement head, high-speed flight image recognition system,Components to adapt to: 0402mm Chip to12mm, placement accuracy: ± 50μm, non-stop refueling,For the new SM feeding system, LED display feeder status, dual transmission system, can be put 84 8mm feeders,With front and back for the operation of the LCD display, automatic mouth change device.

Specifications

Chip theoretical speed: 21,000CPH
Mounting range: 0402mm Chip to 55mm
Placement accuracy: ± 0.03mm
PCB size: 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Equipment size: L1,650 * D1,680 * H1,530
Power: 4.7KVA
Equipment weight: 1800kg
Maximum height H: 15mm (fixed vision)
Narrow Pitch Mounting: 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of feeders: Max.120EA
PCB size (mm) (L * W * T): Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions: L1,650 * D1,680 * H1,530
Weight (KG): 1,800kg
Energy consumption: 3phase AC200 / 208/220/240/380/415 4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption: 5KG / cm2 260NI / min
