Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine

Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine
Brand Name
SAMSUNG
Product Model
SM320 SM321 SM421 SM431
MOQ
1pcs
Unit Price
21116$~28169$
Payment Method
T/T,Western Union,Paypal,Credit card
Supply Capacity
3000
Product Details
Name: Samsung SM320 SM321 SM421 SM431
Brand: SAMSUNG
Model: SAMSUNG SM320 SM321 SM421 SM431
Specification: SMT PICK AND PLACE MACHINE
Condition: Original
Stock: Large
Shipment: On-time Shipment
Warranty: 1 Year
Delivery: Fedex,ups,dhl,as Required
Package: Wooden Case
Product Description
Detailed Specifications And Features
Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine

SMT pick and place machine, generally speaking, is the most critical and expensive equipment in SMT. It is a device for mounting electronic components. It is all high-tech equipment composed of rack, PCB transmission and bearing organization, drive system, positioning and alignment system, feeder, optical recognition system, sensor and computer control system.

Product Application
  • Name:Samsung SM320 SM321 SM421 SM431
  • Brand:SAMSUNG
  • Model:SAMSUNG SM320 SM321 SM421 SM431
  • Specification:SMT PICK AND PLACE MACHINE
  • Condition:original
  • Quality:top qualiy
  • Stock:large
  • Payment:T/T before shipment
  • Shipment:on-time shipment
  • Warranty: 1 year
  • Delivery:fedex,ups,dhl,as required
  • Package:wooden case
samsung sm431 machine
  • PCB size: 460 x 460 (1PCB)
  • Patch speed: 21,000CPH
  • Component: 0402mm Chip to 12mm
  • Feeders: 84pcs 8mm feeders
Samsung SM431 parameters
  1. Speed 55,000CPH (Best condition)
  2. dual-arm Y-axis dual servo drive system
  3. arms a total of 16 placement head
    High-speed flight image recognition system
    - Components to adapt to: 0402mm Chip to □ 12mm
    - Mounting accuracy: ± 50μm @ 3σ
  4. For new SM feeding system
    - For non-stop feeder
    - for the rail way feeder
    -LED Displays feeder status
  5. dual transmission system
    - Dual transfer mode: 330 x 250 (2 PCBs)
    - Single transfer mode: 460 x 460 (1PCB)
  6. Can put 84 8mm feeders
  7. LCD display with front and rear operation
  8. automatic mouth change device
  9. Windows XP operating system
  10. Safety cover
  11. Kit
Model SAMSUNG SM320
Component Recognition mode FLYING VISION +STAGE VISION
Components CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed Camera Vision System 1.4 SEC/QFP208(TRAY SUPPLY STANDARD)
Mounting accuracy CHIP/QFP ±50 18500cph/h
FLYING VISION

1005~22mmIC

(Option:0603~12mmIC/0402~7mmIC)
Standard stage vision(FOV 35) 32mmIC(Pitch 0.4mmQFP/0.75mmBGA/~55mm(MFOV))
Standard stage vision(FOV 45) 42mmIC(Pitch 0.5mmQFP/1.0mmBGA/~55mm(MFOV))
Standard stage vision(FOV 20) 17mmIC(Pitch 0.3mmQFP/0.5mmBGA) Min.lead pitch (QFP)
FOV10 0.3mm(QFP)/0.65mm(BGA) Min.Ball pitch (BGA)
FOV15 0.5mm(QFP)/0.75mm(BGA)
FOV25 0.5mm(QFP)/0.75mm(BGA)
Max.Height H12mm(Flying camera standard)
H15mm(Flying camera standard)
PCB size Min size:50(L)*40(W)

Max.size:460(L)*400(W)

Option:510*460,640*510
PCB thickness 0.38mm-4.2mm
Feeder quantity 120ea/112ea(docking cart)
Power supply AC220/220/240V(50/60HZ,3 PHASE)(Option:340/380/415V)
Air compressor 260 NI/MIN
Weight 1800KG
Dimension 1650 L*1680 D*1530 H

Popular SM320. Highly Flexible, user friendly machine and highly reliable. Full vision with 6 placement heads, each with individual illumination allowing 6 totally different components to be aligned on the fly. Upward looking camera allowing placement of components down to 0.4mm Lead pitch.

Model Name Samsung SM421
Alignment

Flying Vision + Stage Vision

(If a large conveyor is installed, only one stage vision can be installed)
Number of spindles 6 Spindles × 1 Gantry
Placement Rate Flying Vision

Chip 1608 21,000 CPH (IPC9850)

SOP 15,000 CPH (IPC9850)

QFP 5,500 CPH (IPC9850)
Placement Accuracy Chip/QFP

Accuracy : ±50@±3σ/Chip

±30@±3σ/QF

(Based on the standard chips)
Component Flying Vision 0603 ~ 22mm IC

Standard Stage Vision (FOV35)

~32mm IC (Lead Pitch 0.3mm)

~55mm (MFOV)

Optional Stage Vision (FOV45)

~42mm IC (Lead Pitch 0.4mm)

~55mm (MFOV)

Max. Height

H = 12mm (Flying Camera Standard)

H = 12mm (Stage Camera Standard)
Board Dimension Minimum 50(L)*40(W)

Single Lane (maximum)

400mm(L)*400mm(W)

510mm(L)*460mm(W) (Option)

610mm(L)*510mm(W) (Option)

Dual Lane (maximum) -

PCB Thickness 0.38~4.2mm
Feeder Capacity 120ea/112ea (Docking Cart)
Utility Power AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)


Max. 4.7kVA

Air Consumption 0.5 ~ 0.7MPa (5.1 ~ 7.1kgf/cm2)


260N/min
Mass (kg) Approx. 1,680
External Dimension (mm) 1,650(L) x 1,690(D) x 1,535(H)
Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine 0 Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine 1 Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine 2 Samsung SMT SM320 SM321 SM421 SM431 Pick And Place Machine 3

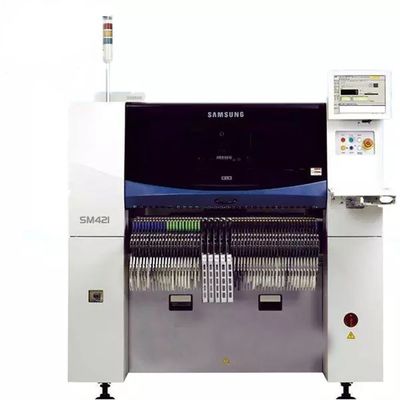

smt pick and place machine 6 head smt421
  1. Pick-up-displace-position-placement and other functions
  2. quickly and accurately
  3. Different sizes pcb boards can be used
  4. Improve production efficiency and reduce manufacturing costs
Other products

Our company supply all kinds of SMT machines and related products:

  • SMT equipment and accessories, nozzles, feeder, feeder parts, filter, guide, tape, mortor, belt, cylinder, smt grease/lubricant, sensor etc.
  • Nozzles & feeders&their parts for fuji, for Juki, for Yamaha, for Samsung, for Siemens, for ,for Sony....etc,all of them have large stock.
