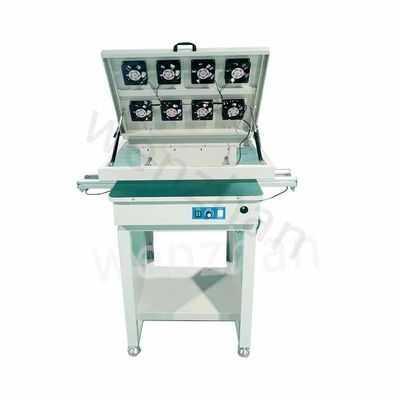

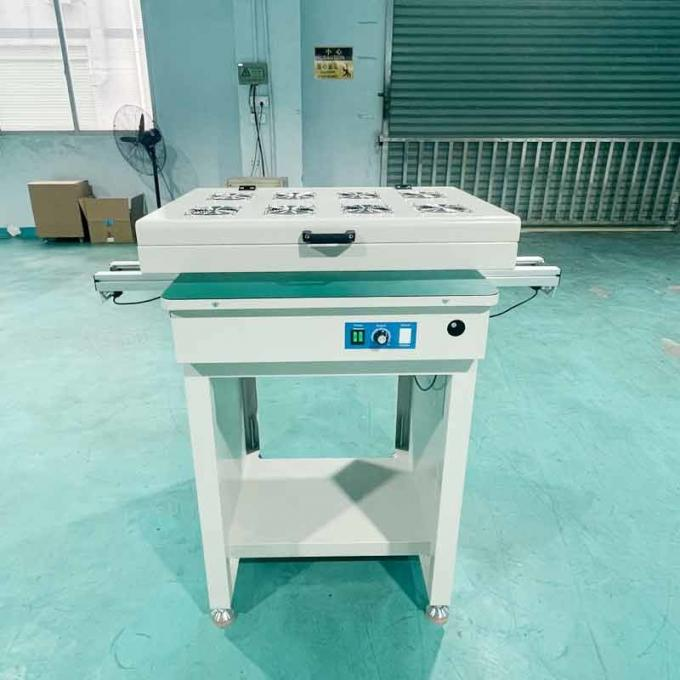

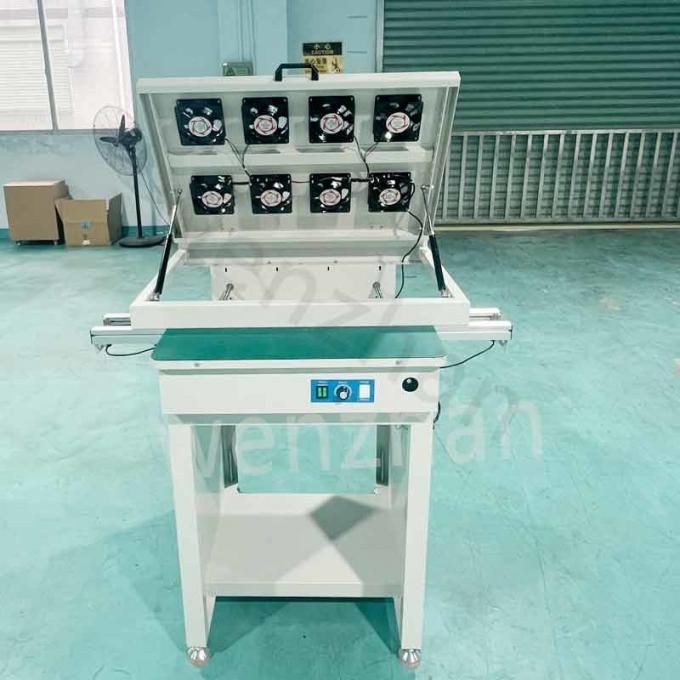

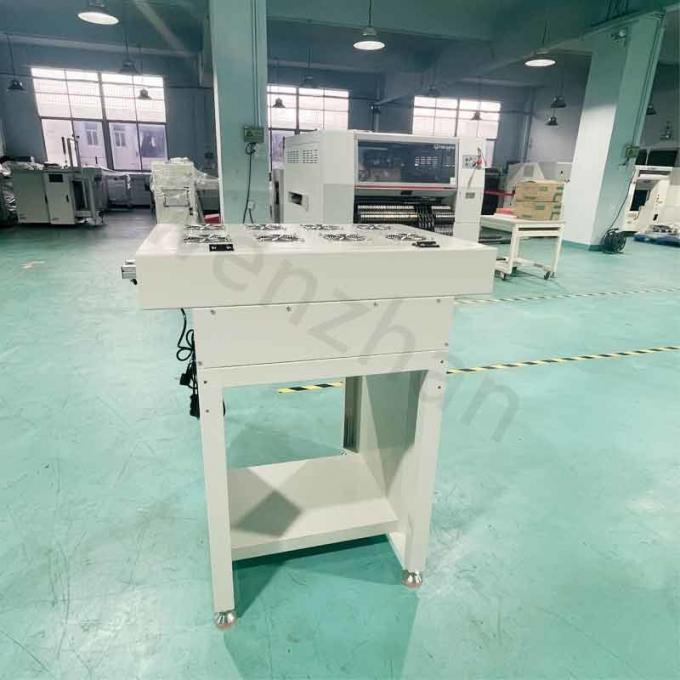

SMT 1M PCB Inspection Conveyor Speed Adjustable Reflow Oven Pcb Conveyor With Cooling

Product Details

Place of Origin: Guangdong, China

Brand Name: ODM

Model Number: TDX-1000

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.wooden case 2.As your order

Delivery Time: 3 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 5000 Piece/Pieces per Week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                1M PCB Inspection Conveyor, SMT PCB Inspection Conveyor, Speed Adjustable pcb Conveyor


Product Name:	SMT 0.5M 0.6M 0.8M 1M 1.2M 1.5M PCB CONVEYOR With Cooling	Model Number:	TDX-1000
Quality:	Top	Package:	Wooden Case
Condition:	NEW	Type:	SMT Machine Related Products
Brand:	ODM	Warraty:	3 Month
Delivery:	Ups,dhl,fedex,as Your Order	Port:	Shenzhen

Product Name:	SMT 0.5M 0.6M 0.8M 1M 1.2M 1.5M PCB CONVEYOR With Cooling
Model Number:	TDX-1000
Quality:	Top
Package:	Wooden Case
Condition:	NEW
Type:	SMT Machine Related Products
Brand:	ODM
Warraty:	3 Month
Delivery:	Ups,dhl,fedex,as Your Order
Port:	Shenzhen

SMT 1M PCB Inspection Conveyor Speed Adjustable Reflow Oven Pcb Conveyor With Cooling

SMT PCB customized conveyor smt reflow oven 1M pcb conveyor with cooling

The PCB conveyor is a specialized equipment used in the electronics manufacturing industry for transporting printed circuit

boards (PCBs) along the production line. It offers functionality that ensures smooth and efficient movement of PCBs between

different stages of the assembly process.

High quality SMT PCB customized conveyor

Product Name	PCB Inspection Conveyor
Rail Length(mm)	500 mm	1000 mm	1200 mm	2000 mm
Dimension (mm)	500700950	1000700950	1200700950	2000700950
PCB Width	50 to 350 mm
PCB Direction	L to R or R to L
Speed	Adjustable
Control System	PLC
Track Fixed Edge	Front Fixed or Back Fixed
Communication	SMEMA for both in & out
Power Supply	1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight	70 Kg	95 Kg	105 Kg	150 Kg

Functionality:

1. PCB Transport: The conveyor system is designed to transport PCBs from one workstation to another within the production line. It utilizes a continuous belt or chain system to carry the PCBs, ensuring a steady and controlled movement without causing damage or misalignment.

2. Speed Control: The conveyor system allows for adjustable speed control to match the specific requirements of the assembly process. Operators can set the conveyor speed based on factors such as 3 PCB size, process time, or equipment compatibility, ensuring optimal efficiency and preventing errors or delays.

3.PCB Orientation: The conveyor system ensures the correct orientation of the PCBs during transportation. It may incorporate guides, sensors, or alignment mechanisms to maintain the proper alignment and prevent PCB rotation or misplacement.

4. Line Integration: The conveyor system seamlessly integrates with other equipment and machines in the production line. It synchronizes with upstream and downstream processes, allowing for smooth transfer of PCBs between different stages of assembly, such as solder paste printing, component placement, and reflow soldering.

5. Flexibility and Customization: The conveyor system offers flexibility and customization options to adapt to various PCB sizes, shapes, and assembly requirements. It can be adjusted or configured to accommodate different conveyor widths, lengths, and PCB handling specifications.

6. PCB Inspection or Rework: Some conveyor systems are equipped with additional features for PCB inspection or rework. These systems may include inspection stations, automated optical inspection (AOI) machines, or rework stations integrated into the conveyor line, enabling real-time inspection or rework of PCBs during transportation.

Usage Instructions:

1. Setup: Ensure that the conveyor system is properly installed and connected to the power supply. Adjust the conveyor's height, width, and length to match the production line's requirements. Make sure all safety features, such as emergency stop buttons and guards, are in place.

2. Loading PCBs: Place the PCBs onto the conveyor belt or chain. Ensure that the PCBs are properly aligned and positioned for smooth transportation. If necessary, use guides or fixtures to secure the PCBs in place.

3. Conveyor Speed Adjustment: Set the conveyor speed according to the requirements of the assembly process. Consider factors such as PCB size, process time, and equipment compatibility. Test the conveyor's speed to ensure that it is running smoothly and without any issues.

4. PCB Transfer: Monitor the movement of the PCBs along the conveyor line. Ensure that the PCBs are transferred smoothly from one workstation to the next, without any misalignments or collisions. Address any issues promptly to avoid disruptions in the assembly process.

5. Inspection or Rework Integration: If the conveyor system includes inspection or rework features, follow the manufacturer's guidelines or procedures for utilizing these additional functionalities. Ensure that proper inspection or rework protocols are followed during PCB transportation.

6. Maintenance: Regularly inspect the conveyor system for signs of wear, damage, or malfunction. Keep the conveyor clean and free from debris that may affect its performance. Follow the manufacturer's maintenance guidelines for any required lubrication or component replacement.

The PCB conveyor system enables efficient and controlled transportation of PCBs along the assembly line. By following the proper usage instructions, it ensures smooth movement and transfer of PCBs between workstations, contributing to a streamlined and efficient production process.
