Removable PCB Inspection Conveyor 0.5M-1.5M for SMT Assembly Line

Removable PCB Inspection Conveyor — Customizable 0.5M-1.5M for SMT Lines

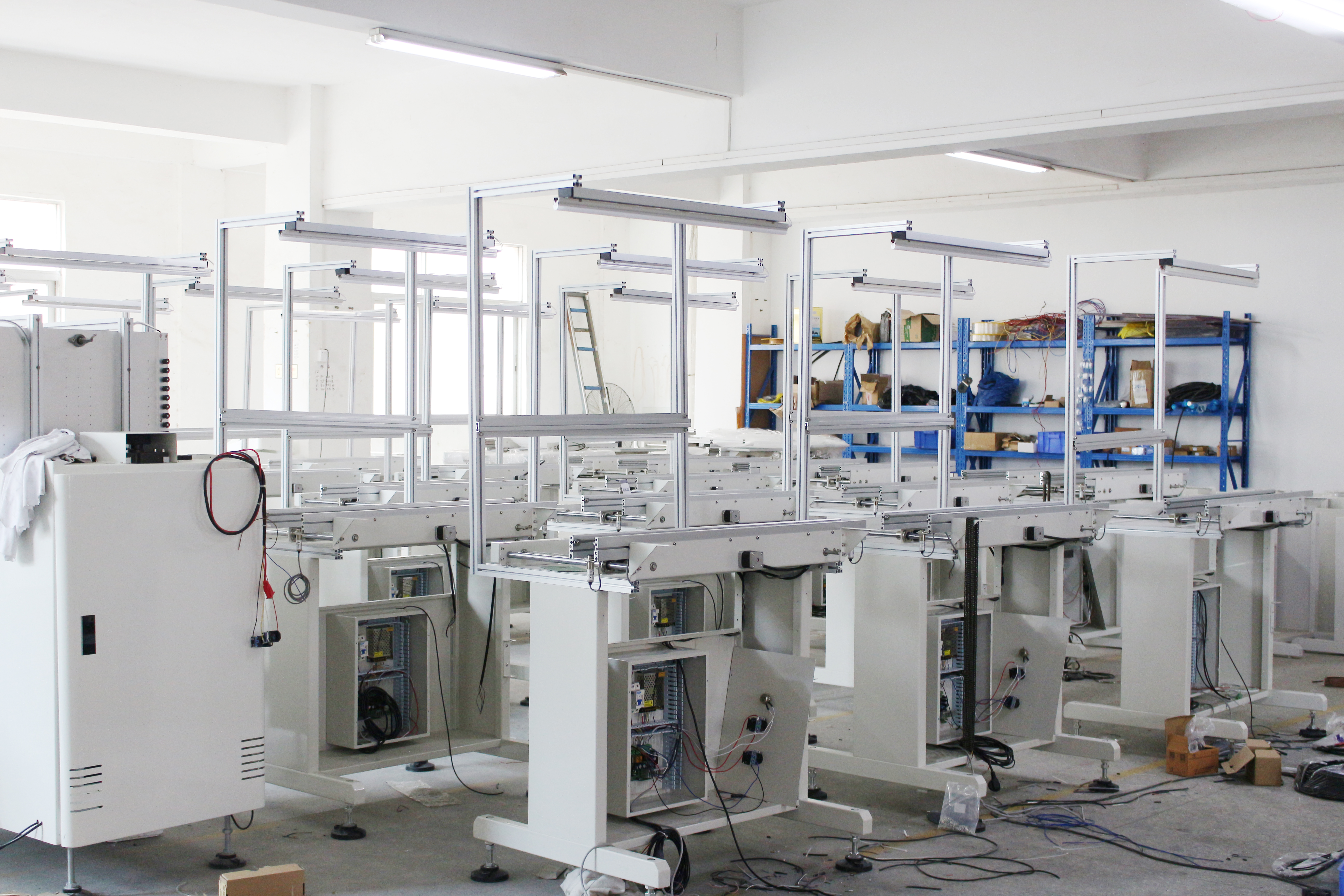

This is a removable PCB inspection conveyor for SMT assembly lines, available in six customizable lengths: 0.5M, 0.6M, 0.8M, 1M, 1.2M and 1.5M.

Designed for PCB transfer between stations and inspection positions, it is supplied brand new with wooden case packing, ready for export.

Key Features

1. Removable Design — the conveyor section can be installed, repositioned and removed as your line layout requires.

2. Customizable Lengths — choose from 0.5M, 0.6M, 0.8M, 1M, 1.2M or 1.5M to match your inspection station and line spacing.

3. Built for PCB Inspection & Transfer — a dedicated section for moving PCBs between SMT line stations and inspection positions.

4. Brand New Condition — supplied as new, not refurbished.

5. Top Quality — quality-rated Top with stable construction for production-line use.

6. ODM Support — customized options available; brand and configuration can be discussed with our engineers.

7. Export Wooden Case Packing — secure wooden case packing for safe international shipping.

8. International Delivery — shipped from Shenzhen by UPS, DHL, FedEx or as per your order.

Specifications

Product name: SMT removable PCB conveyor, 0.5M/0.6M/0.8M/1M/1.2M/1.5M lengths

Model: SMT Removable Conveyor

Condition: NEW

Quality: Top

Brand: ODM

Type: SMT machine related products

Package: Wooden case

Delivery: UPS, DHL, FedEx or as per your order

Port: Shenzhen

Detailed specification sheets and drawings are available on request.

Length Selection Guide

- 0.5M — compact section for short transfer or single inspection position.

- 1M / 1.2M — common lengths for standard inspection and buffer stations.

- 1.5M — longer section when more buffer space is needed.

- Fixed-length options are also available as separate listings on this site (0.5M, 1M with cooling section, and 1.5M belt type) — see the related products section.

- Not sure which length fits your line? Send us your station layout or required transfer length and we will confirm the right configuration.

Packaging, Delivery & Warranty

- Package: wooden case

- Delivery: UPS, DHL, FedEx or as per your order (from Shenzhen port)

- Warranty: 3 months — contact us for the detailed policy

1. Setup: Ensure that the conveyor system is properly installed and connected to the power supply. Adjust the conveyor's height, width, and length to match the production line's requirements. Make sure all safety features, such as emergency stop buttons and guards, are in place.

2. Loading PCBs: Place the PCBs onto the conveyor belt or chain. Ensure that the PCBs are properly aligned and positioned for smooth transportation. If necessary, use guides or fixtures to secure the PCBs in place.

3. Conveyor Speed Adjustment: Set the conveyor speed according to the requirements of the assembly process. Consider factors such as PCB size, process time, and equipment compatibility. Test the conveyor's speed to ensure that it is running smoothly and without any issues.

4. PCB Transfer: Monitor the movement of the PCBs along the conveyor line. Ensure that the PCBs are transferred smoothly from one workstation to the next, without any misalignments or collisions. Address any issues promptly to avoid disruptions in the assembly process.

5. Inspection or Rework Integration: If the conveyor system includes inspection or rework features, follow the manufacturer's guidelines or procedures for utilizing these additional functionalities. Ensure that proper inspection or rework protocols are followed during PCB transportation.

6. Maintenance: Regularly inspect the conveyor system for signs of wear, damage, or malfunction. Keep the conveyor clean and free from debris that may affect its performance. Follow the manufacturer's maintenance guidelines for any required lubrication or component replacement.

The PCB conveyor system enables efficient and controlled transportation of PCBs along the assembly line. By following the proper usage instructions, it ensures smooth movement and transfer of PCBs between workstations, contributing to a streamlined and efficient production process.

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,feeder, nozzle,smt pick and place machine,PCB Conveyor, cylinder,and vibration feeder,anything you need ,just tell me!

1. SMT lubricating oil

2. SMT parts

3. Nozzle and feeder

4. SMT belt and other parts in the machine

FAQ

Q1: What lengths are available for this conveyor?

A: Six lengths: 0.5M, 0.6M, 0.8M, 1M, 1.2M and 1.5M — tell us your line layout and we will confirm the right option.

Q2: Is the conveyor removable?

A: Yes. It is designed as a removable PCB conveyor section that can be positioned and relocated as your SMT line layout requires.

Q3: What is the condition of this machine?

A: Brand new (Condition: NEW), quality-rated Top.

Q4: How is it packed for shipping?

A: In a wooden case, suitable for international export.

Q5: What are the delivery terms?

A: Shipped from Shenzhen port by UPS, DHL, FedEx, or as per your order.

Q6: What is the warranty?

A: 3 months. Please contact us for the detailed warranty policy.

Q7: Can it be customized (ODM)?

A: Yes — ODM and customization options are supported. Send us your requirements and we will evaluate with our engineers.

Q8: Which length should I choose, or is a fixed-length model better?

A: It depends on your inspection station and buffer needs — see the Length Selection Guide above. Fixed 0.5M, 1M (with cooling) and 1.5M belt-type conveyors are also listed on this site; contact us with your layout for a recommendation.

Q9: Where can I get the full specification sheet?

A: Detailed specification sheets and drawings are available on request — contact us and we will send them for evaluation.
