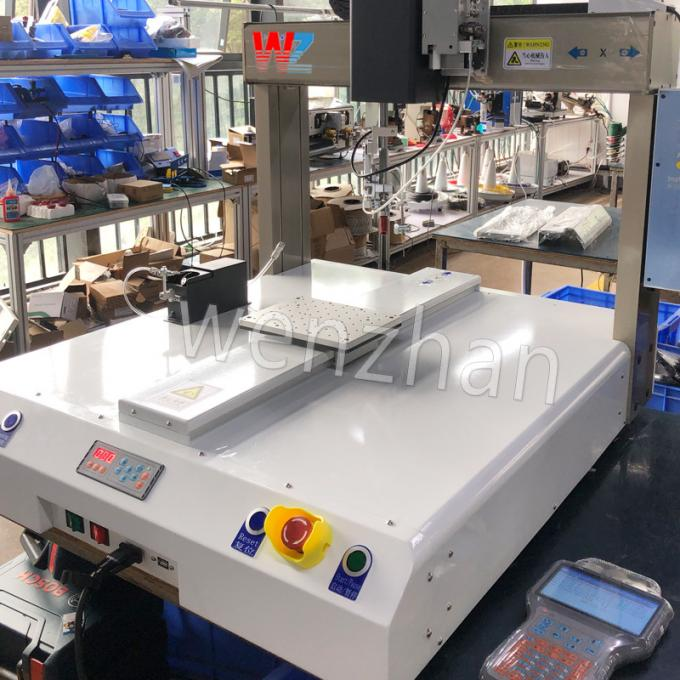

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision

MOQ: 1
Price: Negotiable
Standard Packaging: wooden box
Delivery Period: 3-5 day
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 1000
Detail Information
Place of Origin
CHINA
Brand Name
WZ
Model Number
WZ-551
Product Name:
Dual Desktop PCB Soldering Machine With Vision
Model:
WZ-551
Application:
SMT PCB Assembly Production Line
Displacement Speed (unit: Mm/sec):
5-800mm/sec
Repeatability:
±0.02mm
Input Power:
AC220V 50 - 60HZ 350W
Single Package Size:
50X50X50 Cm
Package:
Wooden Case
Product Description

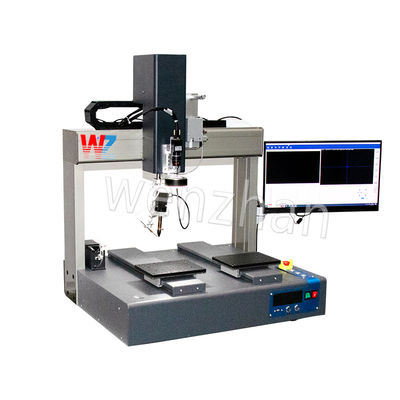

Dual head Robotic iron Station Solder 5 Axis Desktop PCB Soldering Machine With Vision

The Dual-Unit Desktop PCB Soldering Machine is an advanced tool designed for soldering printed circuit boards (PCBs) in a compact and efficient manner. This machine is especially suited for small to medium-sized production runs, as well as for prototyping and repair tasks. Its dual-unit design allows for simultaneous soldering of multiple components, enhancing productivity and efficiency.

Introduction:

This soldering machine typically features two independent soldering heads, each equipped with precise temperature controls and interchangeable tips. This flexibility enables operators to work on different types of components and soldering techniques, including through-hole and surface-mount soldering. The machine is user-friendly, often featuring an intuitive interface that allows for easy adjustment of settings.

Usage:

1. Preparation: Start by setting up the machine according to the manufacturer's instructions. Ensure that it is connected to a stable power source and that the workspace is clean and organized.
2. Tool Selection: Choose the appropriate soldering tips for the components being soldered. Install the tips onto the soldering heads based on the requirements of the project.
Temperature Settings: Adjust the temperature settings for each soldering head according to the specifications of the solder and components being used. This is crucial for achieving optimal solder joints.
3. Placing Components: Position the PCB on the work surface and secure it if necessary. Place the components in their designated positions on the PCB.
4. Soldering Process: Activate the soldering heads to begin the soldering process. Use the dual units to solder multiple components simultaneously, ensuring consistency and efficiency.
5. Inspection: After soldering, inspect the joints for quality and integrity. Look for any solder bridges, cold joints, or other defects that may need correction.
6. Clean-Up: Once the soldering is complete, clean the workspace and the soldering tips to maintain the machine's performance and longevity.

In summary, the Dual-Unit Desktop PCB Soldering Machine is a valuable tool for efficient and precise soldering in electronics assembly. Its dual functionality enhances productivity, making it ideal for both small-scale production and repair tasks. Proper usage ensures high-quality solder joints and overall effectiveness in PCB assembly.

Technical Parameters
Number of axes five axis
Stroke (unit: mm) X 500MM
Y1 300MM
Y2 300MM
Z 100MM
R(rotate) 360°
Displacement speed (unit: mm/sec) 5-800mm/sec
Repeatability ±0.02mm
control method Teach
Programmatically Direct entry/teaching
rated power Max.350W
Y bearing heavy 10KG
Z bearing heavy 5kg
Input power AC220V 50 - 60HZ 350W
transfer method guide Taiwan Hiwin Linear Guide
Lead screw Japan THK grinding
Motor/R-axis motor Servo/closed loop



Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 0Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 1

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 2

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 3



Shenzhen Wenzhan Electronic Technology Co., Ltd. was established in 2009,more than 15 years of working experiences in SMT area, Is a professional SMT pick&place machine and the machine parts service providers. Our products are sold all over the world, and we have made many foreign friends all over the world.
Company mainly provide SAMSUNG /YAMAHA / FUJI / PANASONIC /JUKI SMT machine parts’ sales and maintenance services.
We stick to the principle of "quality first, service first, continuous improvement and
innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Comprehensive after-sales service, with professional technicians readily available to answer your questions, ensures you can have peace of mind.


other machine
We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .
wenzhan Techonologies Co.,Ltd
In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.

In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.



Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 4Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 5

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 6

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 7Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 8Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 9Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 10Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 11

Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 12Dual head 5 Axis Desktop Robotic iron Station Solder PCB Soldering Machine With Vision 13



Why Choose Us?
It is precisely because wenzhan technology has the following advantages over the same industry that
more and more customers choose wenzhan as their preferred supplier.

1. Professional pre-sales advice support

2. Excellent after-sales technical service

3. Flexible payment and return policy

4. One stop solution for SMT accessories

5. Stock in the factory with sufficient stock and fast delivery
