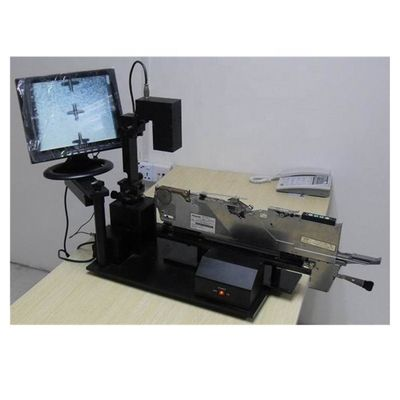

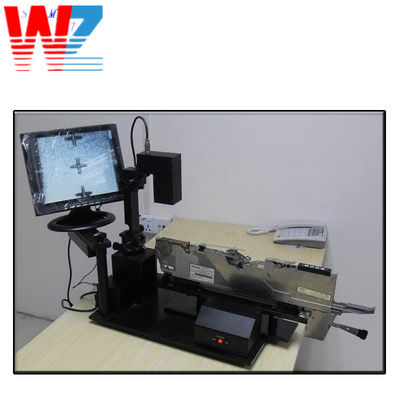

L500mm Feeder Calibration Jig , CM602 Replacement Parts

L500mm Feeder Calibration Jig , CM602 Replacement Parts
Brand Name
ODM
Product Model
CM402,CM602
Country Of Origin
Guangdong, China
MOQ
1pcs
Unit Price
Negotiable
Payment Method
T/T,Western Union,Paypal,Credit card
Supply Capacity
5000 Piece/Pieces per Week
Product Details
Highlight:

CM602 feeder calibration jig

,

L500mm feeder calibration jig

,

CM602 replacement parts
Product Name: SMT MACHINE CM402 FEEDER CALIBRATION JIG
Model Number: CM402,CM602
Condition: New, Original
Core Components: Motor
Warranty: 3 Months
Quality: Top
Package: Wooden Case
Type: SMT Machine Related Products
Delivery: Ups,dhl,fedex,as Your Order
Product Description
Detailed Specifications And Features
PROFESSIONAL SMT MACHINE CM402 CM602 FEEDER CALIBRATION JIG
SPECIFICATION:
Working Voltage
220V/AC(50Hz) 60W
Machine Size
350*500*550 mm
Machine Weight
45Kg
KME CM402 CM602 Feeder Calibration JIG

SMT equipment and accessories: SMT Feeders, Smt nozzles, SMT feeder parts, Yamaha feeder storage cart, SMT nozzle cleaning machine, SMD parts counter, solder paste mixer, nozzle filter, THK grease gun, grease, lubricant, bearing, motor, cylinder,sensor, belt etc.

Available Sizes

Specification:
Dimension: 500 x 350 x 550 mm , L x W x H
Type: Electric
Monitor : 12" LED display, with cross mark
Camera : CCD, 50 times magnification
Appliable: KME CM402 CM602 Feeder

Feeder Calibration JIG Feature:
  • It is essential for this equipment that enhanced productivity , installation and quality improvement
  • As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position which results from the modification and wear of tape feeder in the SMD device.
  • The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously because it has relatively close correclation with the quality of a current line, production efficiency and loss
Convenience in use:
  • The acquisition for the rectangular coordinate of X-Y direction.
  • Check for the existence, transformation, user in the feeder
  • The installation is to euip it with actual device and consolidation in feeder base
  • Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis
  • The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)
  • The simple calibration for removing or taking feeder easily
  • It is correction as measurement with CCD Camera.
  • Timer control make it pssible to change the IC pick-u time.
  • The use pressure is able to control in the regulator and air cylinder.
  • Verification and correction available worker`s convenience and well carriage by the work desk.

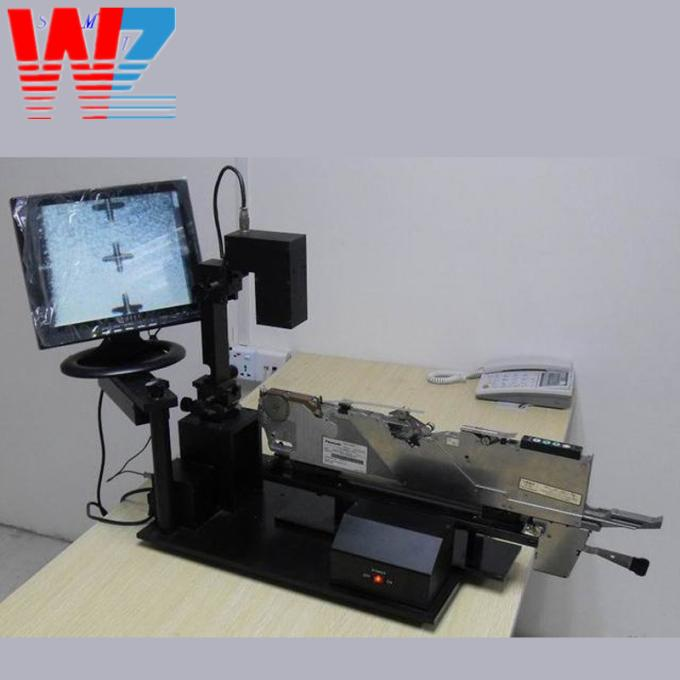

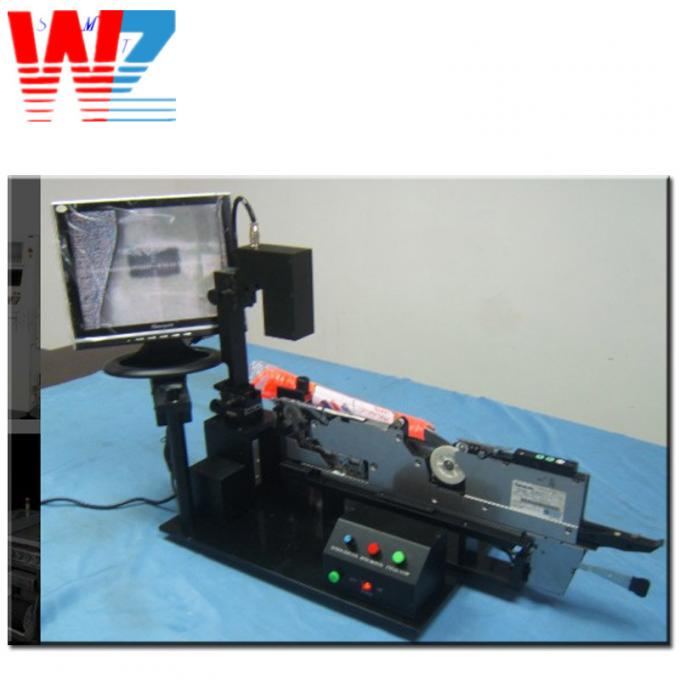

L500mm Feeder Calibration Jig , CM602 Replacement Parts 0 L500mm Feeder Calibration Jig , CM602 Replacement Parts 1
L500mm Feeder Calibration Jig , CM602 Replacement Parts 2
Box list:
Name and Description
Quantity
Use Manual
1 Pcs
12 Inch LCD Monito
1 Set
Machine Unit
1 Set
Calibration ruler
1 Pcs
SMT related products,such as feeder calibration jig,feeder storage cart,IC tray,pcb conveyor,
and so on
L500mm Feeder Calibration Jig , CM602 Replacement Parts 3
