Home > products > SMT Machines > HP-100 Hios Digital Torque Meter 1000N.Cm Turning Off Automatically Rechargeable

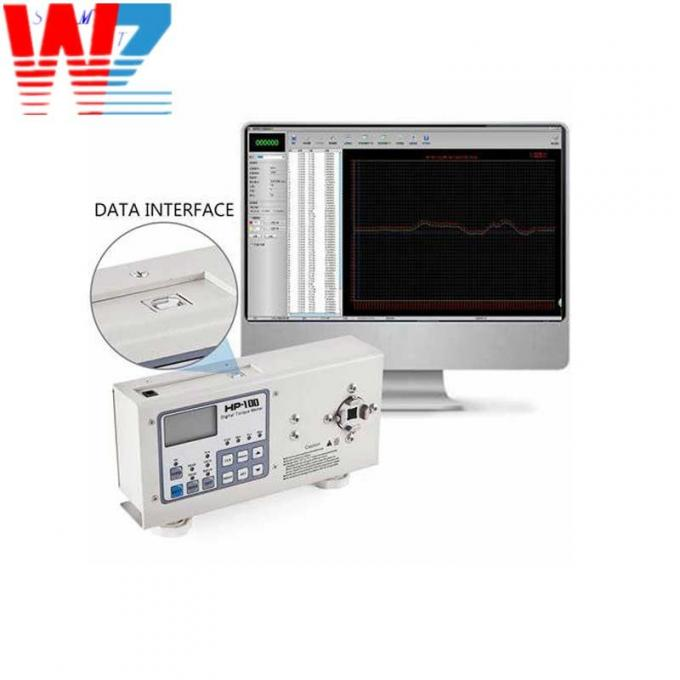

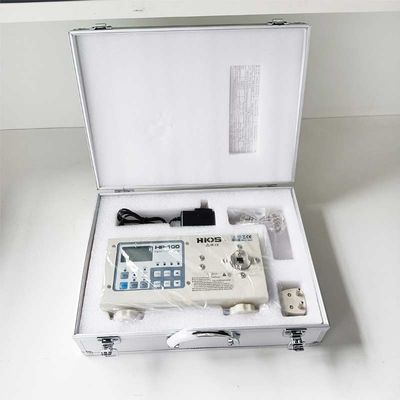

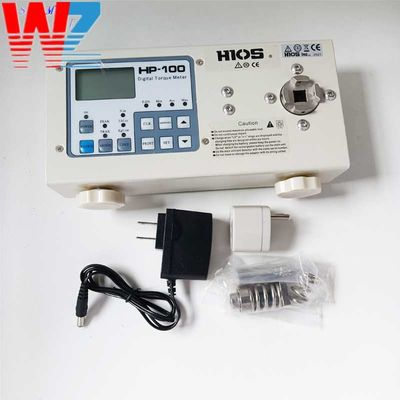

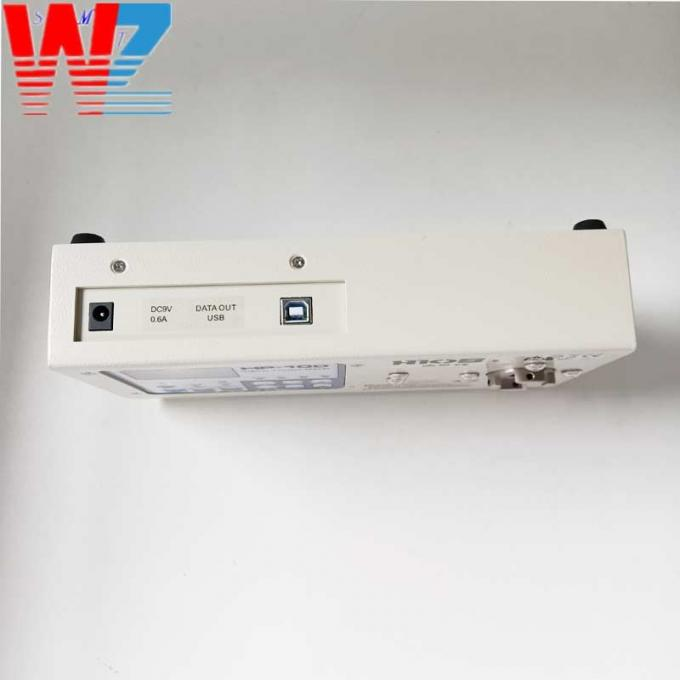

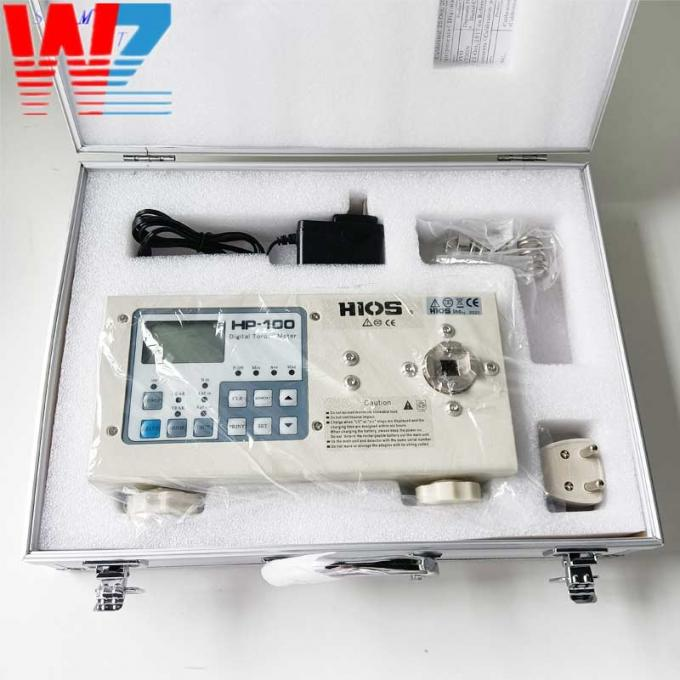

HP-100 Hios Digital Torque Meter 1000N.Cm Turning Off Automatically Rechargeable

Product Details

Place of Origin: Japan

Brand Name: Hios

Model Number: HP-100

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 3 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 5000

Get Best Price
Highlight:

hios digital torque meter

,

1000N.Cm hios digital torque meter

,

Rechargeable hios torque meter

Product Name:
HP-100 Hios Digital Torque Meters
Model:
HP-100
Peak Range(N.m):
0.15-.10.00
Peak Range(Lbf.in):
1.5-90.0
Accuracy:
In The Range Of ± 0.5% (full Scale)
Peak Range(Kgf.cm):
1.5-100.0
Peak Range(N.cm):
15-1000
Size:
W230MM*H50MM*D120MM
Product Name:
HP-100 Hios Digital Torque Meters
Model:
HP-100
Peak Range(N.m):
0.15-.10.00
Peak Range(Lbf.in):
1.5-90.0
Accuracy:
In The Range Of ± 0.5% (full Scale)
Peak Range(Kgf.cm):
1.5-100.0
Peak Range(N.cm):
15-1000
Size:
W230MM*H50MM*D120MM
HP-100 Hios Digital Torque Meter 1000N.Cm Turning Off Automatically Rechargeable

Hios Digital Torque Meters HP-100 Features;
. 1. Turning off automatically(it will automatically turn off 10 minutes after
leaving it without use)

. 2. Storing data(it can record 100 torque data,and can store, browse
partly delete and completely delete them)

. 3. It can calculate the MAX, MIN and AVE

. 4. Deleting torque data automatically(it can adjust the time of automatic
reset with the seitch)

. 5. Adjusting zero automatically(it can automatically adjust zero)

. 6. Setting torque data and reminding workers with the buzzer



Model

HP-10
HP-50
HP-100
peak range
N.m
0.015-1.000
0.15-5.00
0.15-.10.00

N.cm
1.5-100.0
15-500
15-1000
Lbf.in
0.15-9.00
1.5-45.0
1.5-90.0
(Kgf.cm)
0.15-10.00
1.5-50.0
1.5-100.0
Accuracy
In the range of ± 0.5% (full scale)
Power
5 1.2V 1000mA Ni-MH battery
Working hours after fully charged

(Continuous use)
About 16 hours
Battery Life
Around 500 times rechargeable
Size
Si See Dimension Chart
Weight
1.8Kg
AC Adapter
In the 100-240V AC (50 or 60Hz) to work

Output 7.5-8.5V DC (0.5A))



HP-100 Hios Digital Torque Meter 1000N.Cm Turning Off Automatically Rechargeable 0HP-100 Hios Digital Torque Meter 1000N.Cm Turning Off Automatically Rechargeable 1HP-100 Hios Digital Torque Meter 1000N.Cm Turning Off Automatically Rechargeable 2
