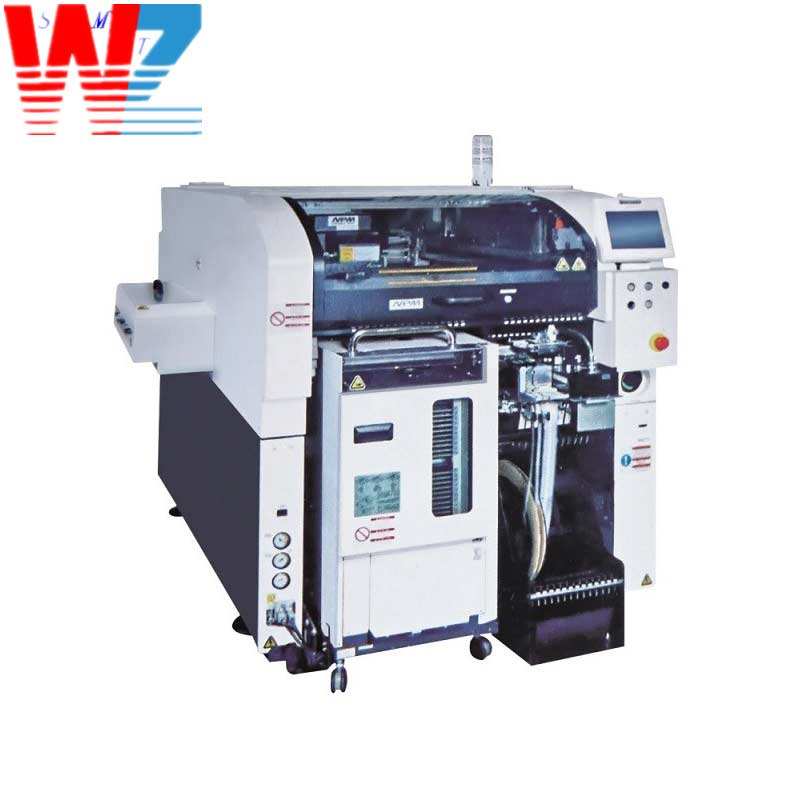

NPM TT2
Panasonic
Full-Automatic SMT Production Line for Drone PCB Assembly — from Wenzhan
This is a full-automatic SMT production line for drone PCB assembly, supplied by Wenzhan as a complete line solution. The line is configured around your board and output requirements — PCB printer, chip mounter, reflow oven and AOI in one integrated flow — with customizable line size and new or used machine options.
Key Features
1. Full-Automatic SMT Line — an integrated, automated flow from printing to inspection for continuous PCB assembly production.
2. For Drone PCB Assembly — line design and configuration oriented to drone PCB production, and suitable for general SMT PCB assembly.
3. Four-Stage Line Composition — PCB printer, chip mounter, reflow oven and AOI, linked as one production line.
4. Configured to Your Requirements — machine selection and line layout are based on your PCB design and target output; we configure the line accordingly.
5. Wenzhan Brand — line equipment supplied under the Wenzhan brand with SMT industry experience.
6. New or Used Options — available as new machines or used machines, per your budget and requirement.
7. Customizable Line Size — line dimensions and station layout can be customized for your factory space.
8. Export Packing & Multiple Carriers — wooden case packing with delivery by DHL, UPS, FedEx, TNT or EMS.
Line Composition
- PCB Printer — solder paste printing for the assembly process.
- Chip Mounter — component placement for SMT parts.
- Reflow Oven — solder reflow for reliable joints.
- AOI — automated optical inspection for quality control.
Specific models, quantities and optional stations are configured according to your PCB and output requirements — send us your board details and capacity target and we will propose the line configuration.
Customization
- Line configuration (printer/mounter/reflow/AOI selection) — based on your PCB and output.
- Line size and layout — customizable to your factory space.
- Machine condition — new or used options available.
- Board handling and optional stations — evaluated with our engineers on request.
Packaging, Delivery & Warranty
- Package: wooden case
- Delivery: DHL, UPS, FedEx, TNT, EMS
- Lead time and warranty: depend on configuration — contact us for a confirmed quotation
| Model | NPM-TT2 | |
| Board size | PC Single-track | L50 x W50 mm - L510 x W590mm |
| PC Double-track | L50 x W50 mm - L510 x W300mm | |
| PC Single-track | L50 x W50 mm - L510 x W510mm | |
| PC Double-track | L50 x W50 mm - L510 x W260mm | |
| Machine dimensions | W1300 x D2798 x H1444mm | |
| Weight | approx. 2690kg | |
| 8 Nozzle Placing Head | 3 Nozzle Placing Head V2 | ||
| Speed | PC | 18,000CPH | 7200PH;5900CPH/QFP |
| M | 17,460CPH | 6980PH;5720CPH/QFP | |
| Placement accuracy (Cpk≥1) | ±0.040mm | ±0.040mm/Chip; ±0.030mm/QFP | |
| Component size | 0402 - L32mm x W32mm x T12mm | 0603 - L150mm x W25mm x T30mm | |
Why Choose Wenzhan
- SMT solution provider with 20+ years of experience supporting complete SMT lines
- Complete line supply with technical support for installation, commissioning and line integration
- Supporting equipment and spare parts across the SMT process (printers, mounters, reflow, wave soldering, AOI/SPI, conveyors, feeders and related accessories)
FAQ
Q1: Which machines are included in this SMT line?
A: The core composition is PCB printer + chip mounter + reflow oven + AOI. Specific models and optional stations are configured according to your PCB and output requirements.
Q2: Is this line only for drone PCBs?
A: The line is oriented to drone PCB assembly and is also suitable for general SMT PCB assembly — tell us your product type and board details and we will confirm the configuration.
Q3: Are the machines new or used?
A: Both options are available — new machines or used machines, depending on your budget and requirement.
Q4: Can the line be customized?
A: Yes — configuration, line size and layout can be customized; contact us with your factory space, PCB details and capacity target.
Q5: Do you provide installation and technical support?
A: Yes — full-line supply includes installation and commissioning guidance plus technical support from Wenzhan engineers for your production line.
Q6: What is the delivery method?
A: Wooden case packing, shipped by DHL, UPS, FedEx, TNT or EMS.
Q7: What about lead time and warranty?
A: Both depend on the final configuration — contact us with your requirements and we will confirm in a formal quotation.
Q8: What information do you need for a quotation?
A: Your PCB size and layer count, target output/cycle time, component types, new or used preference, and destination — with these we can propose a line configuration and quotation.
