Despite the rapid advancement of SMT (Surface Mount Technology), wave soldering remains an indispensable process in the electronics manufacturing industry, particularly for power-dense boards and products requiring through-hole components. As global standards for lead-free production and energy efficiency tighten, manufacturers are seeking equipment that can deliver uncompromising quality at scale.

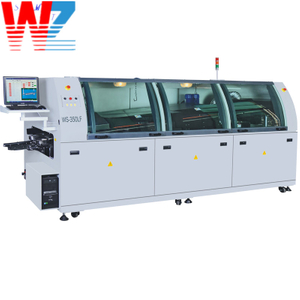

The WS-350PC Automatic Wave Soldering Machine represents the pinnacle of modern welding technology. Designed with the "Efficiency First" philosophy, it combines a massive 2000mm preheating capacity with precision automation to ensure that every solder joint meets the highest industrial standards.
Traditional wave soldering often becomes a bottleneck in high-speed production lines due to several persistent technical challenges:
Inconsistent Thermal Profiles: Standard machines with short preheating zones often fail to ramp up the PCB temperature gradually. This leads to "thermal shock" when the board hits the molten solder, resulting in cracked components or cold solder joints.
Bridging and Excess Solder: Achieving the perfect wave height and stability is a constant struggle. Poorly controlled waves frequently cause "bridging" (solder shorts between pins) or "icicles," requiring expensive manual rework.
High Energy and Flux Consumption: Many older systems lack precise PID control and automatic flux management, leading to significant waste of both electricity and expensive chemical consumables.
The WS-350PC is specifically engineered to bridge this "Quality Gap" through advanced thermal management and a sophisticated dual-wave architecture.
The WS-350PC isn't just a soldering pot; it's a precisely controlled thermal environment.

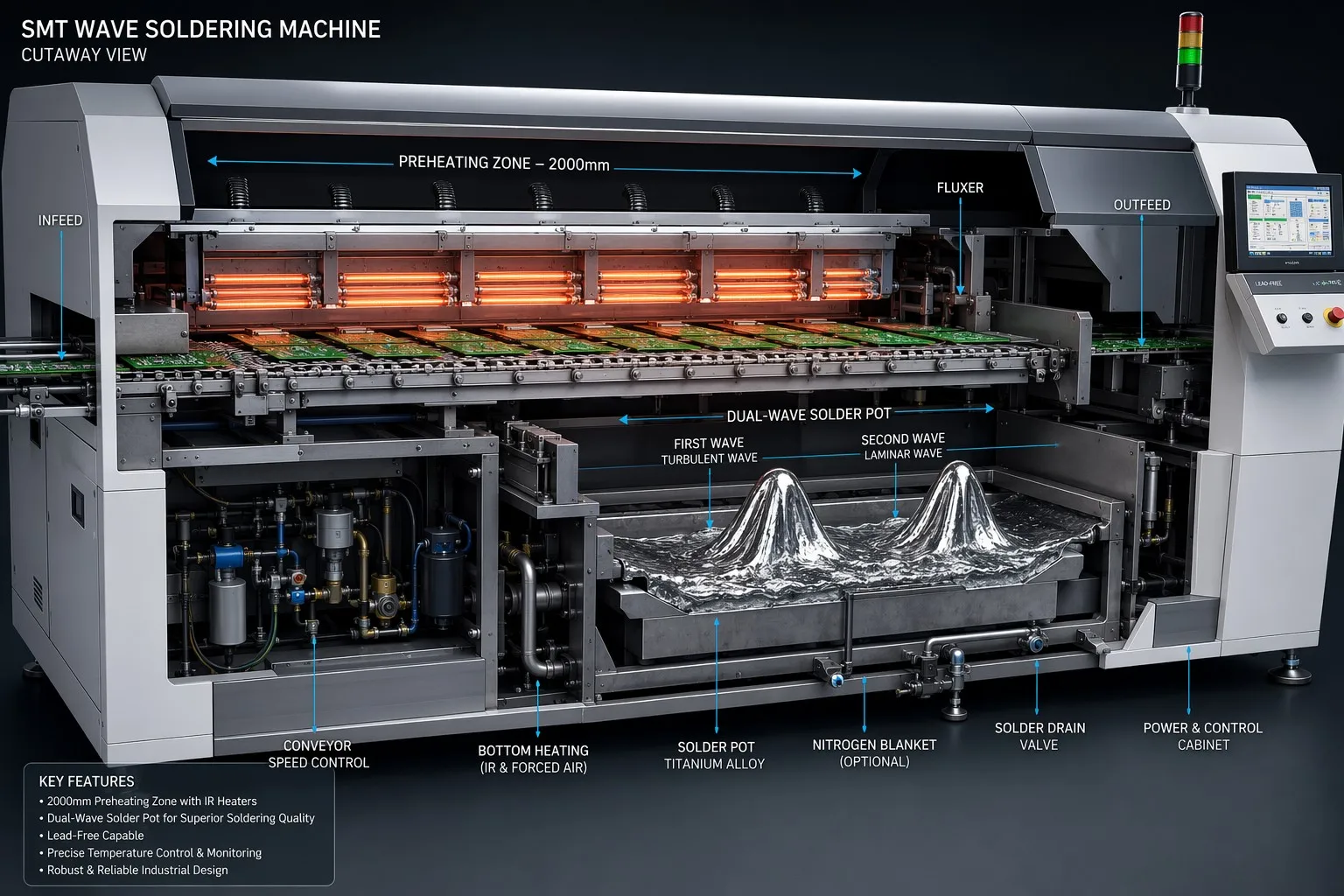

Quality soldering starts before the board even touches the solder. The WS-350PC features a massive 2000mm long preheating zone (typically divided into 4 independent sections). This length allows for a gentle, linear temperature increase, ensuring that the flux is properly activated and the PCB is thermally prepared for the lead-free soldering peak.

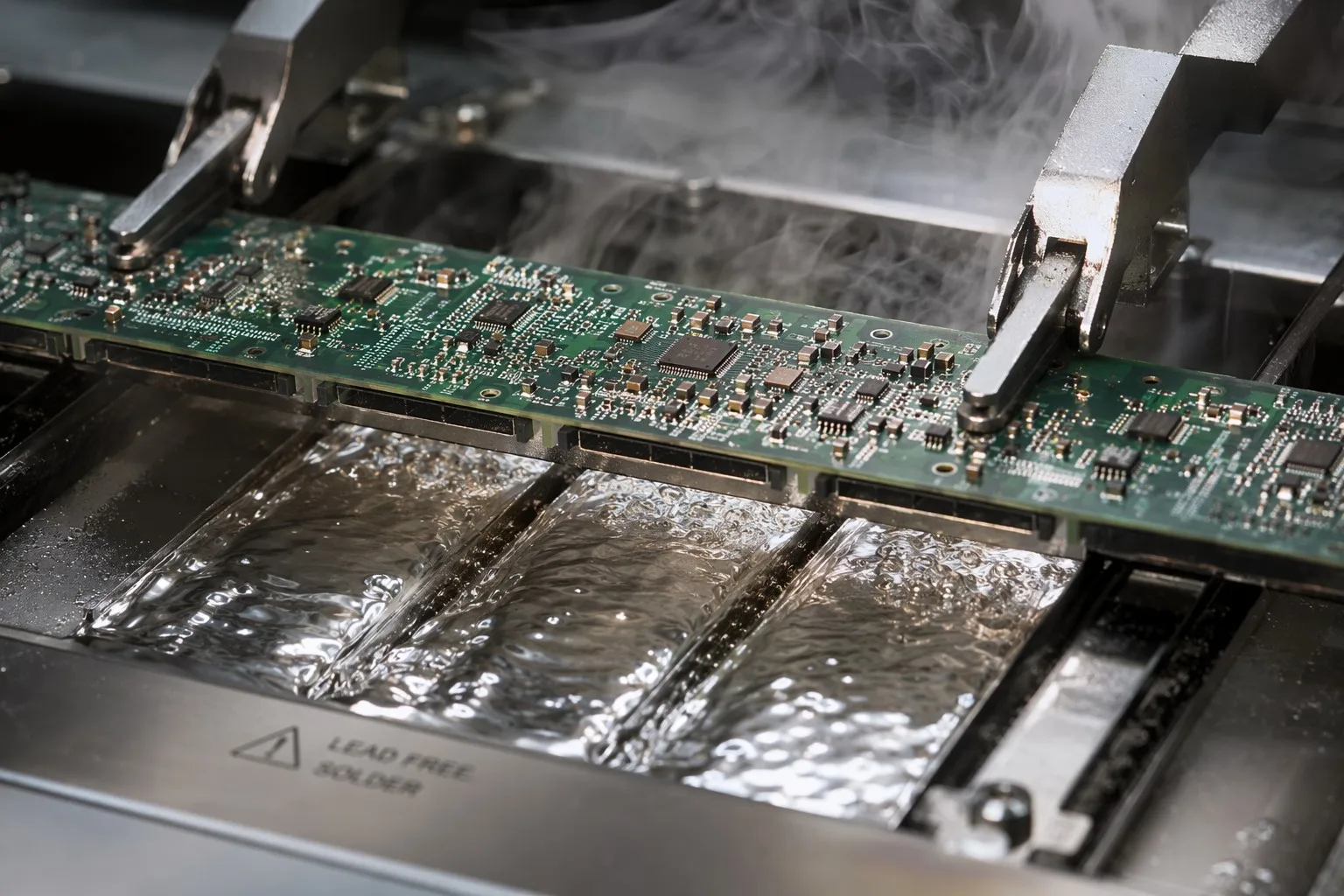

The machine utilizes a dual-wave design with titanium alloy nozzles. The first "turbulent" wave ensures that solder reaches even the most hidden pins in dense layouts, while the second "smooth" wave removes excess solder and eliminates bridging. This two-step process provides the highest first-pass yield in its class.
Reliability is powered by a Siemens PLC control system. Combined with an intuitive touch screen interface, operators can precisely set, monitor, and save temperature profiles for hundreds of different PCB designs. The system also includes PID temperature control, maintaining the solder pot temperature within ±1°C of the setpoint.
The WS-350PC’s robustness and accuracy make it the preferred choice for sectors where high-volume reliability is paramount:

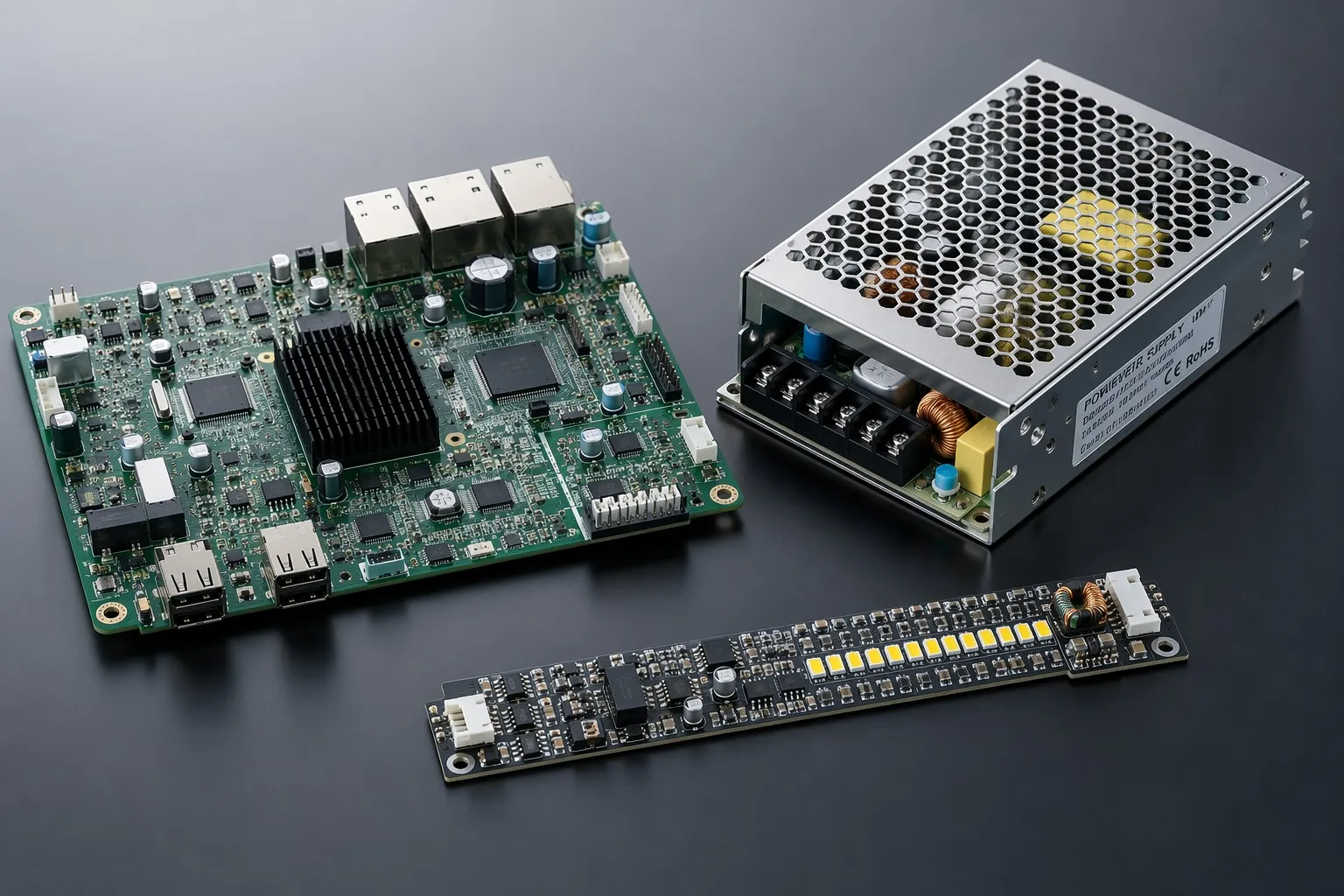

From washing machine controllers to smart refrigerator boards, home appliances require durable through-hole connections that can withstand vibrations and thermal cycles. The WS-350PC provides the deep solder penetration needed for these high-density power boards.
LED driver boards often feature long strips or dense clusters of through-hole LEDs. The 350mm wide conveyor and consistent wave stability of the WS-350PC ensure that thousands of LEDs are soldered perfectly in a single pass.
Industrial-grade power units use heavy components and thick copper traces. The extended preheating of the WS-350PC ensures that these "heat-sink" boards are properly heated, preventing the cold joints that often plague industrial electronics.
We understand that integrating a wave soldering machine is just one part of your production strategy. Our team is dedicated to providing the complete SMT and DIP ecosystem.
Our professional engineers don't just sell equipment; we design productivity. We can configure a full turn-key production line tailored to your factory layout, combining the WS-350PC with automatic fluxers, conveyors, and AOI inspection systems to maximize your automation level.
Every manufacturing environment is unique. We offer personalized service packages that include on-site installation, deep-dive technical training for your staff, and regular maintenance check-ups to ensure your WS-350PC operates at peak efficiency for years to come.
With a global network of technical experts, we provide 24/7 support. Whether you need a remote consultation on a temperature profile or an on-site service visit, our professional team is ready to ensure your production never stops.
The WS-350PC Automatic Wave Soldering Machine is more than a piece of hardware—it is a commitment to quality and efficiency. By investing in a 2000mm preheating platform and a world-class control system, you are future-proofing your DIP production line.
Ready to optimize your assembly process? Contact our professional SMT team today for a free technical consultation and a customized production line proposal.
