8-72mm Tape Feeder for Fuji NXT Machines

CP7 Feeder Product Overview

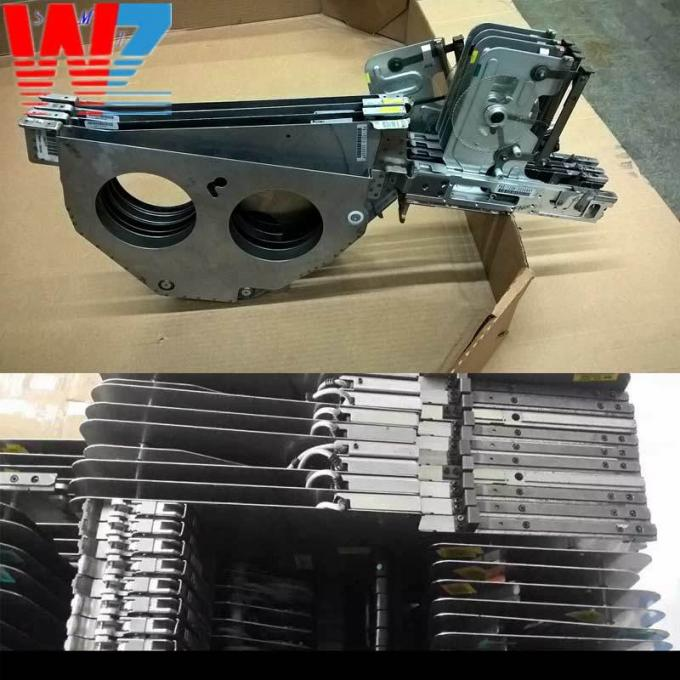

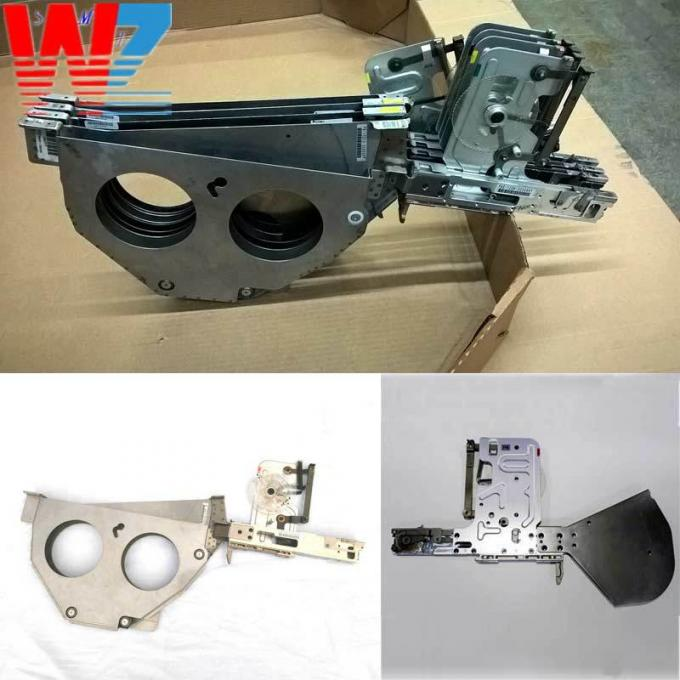

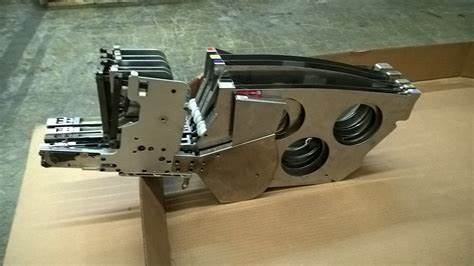

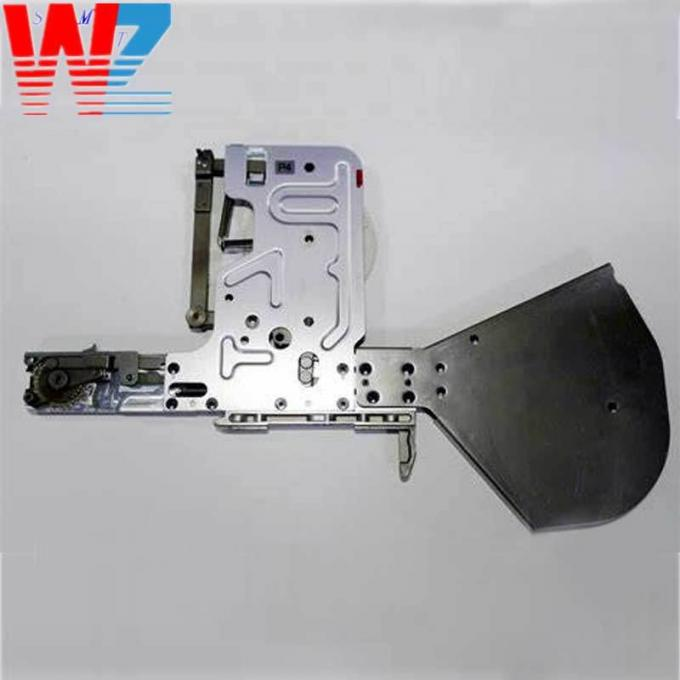

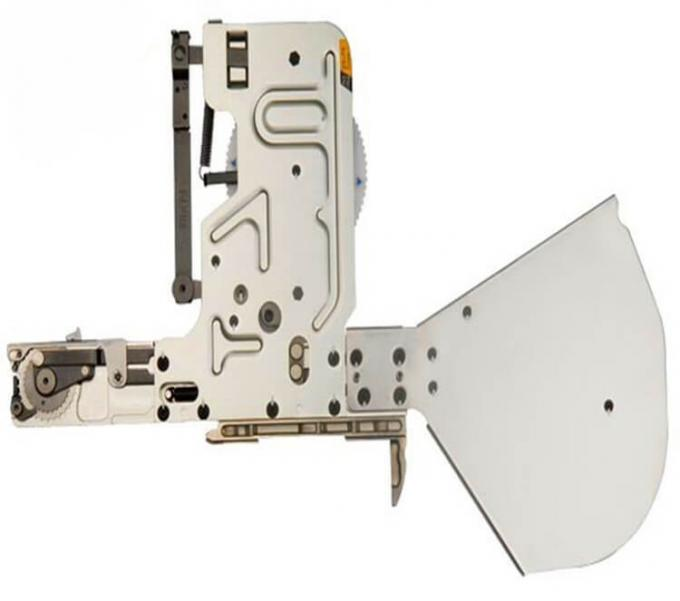

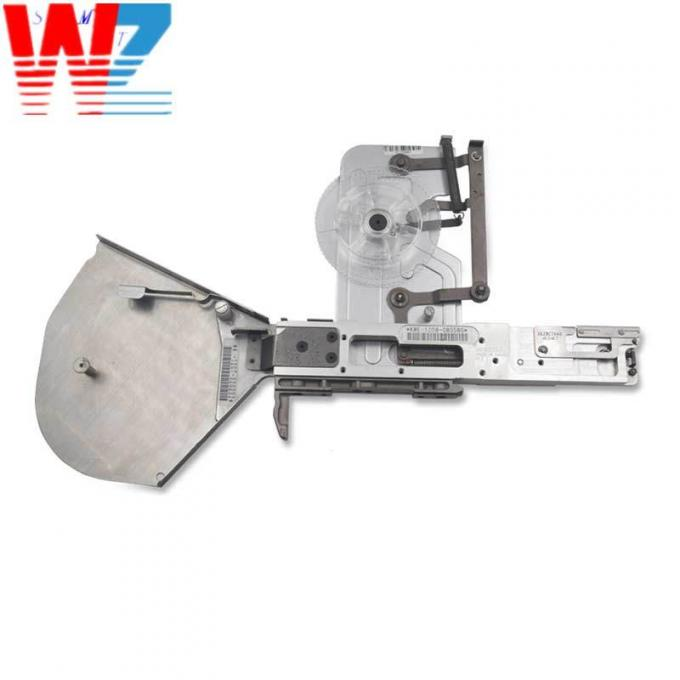

The FUJI CP7 series SMT feeder is a component supply unit designed for FUJI CP7-series pick and place machines. It delivers tape-wound surface mount components to the pick-up position of placement heads, supporting continuous component feeding during SMT assembly workflows. This feeder fits into standard CP7-series machine feeder slots, supporting stable component supply for high-volume and mixed-product production lines in industrial applications.

The CP7 series feeder is designed for full compatibility with FUJI CP7, CP742, and CP743 model pick and place machines. It mounts directly to the feeder bay of these machines, with no structural modification required for installation. The feeder communicates with the machine control system via standard interface protocols, supporting normal feeding function and parameter recognition.

CP7 Feeder Technical Specifications

Item	Specification
Product Name	FUJI CP7 SMT Feeder
Brand	FUJI
Condition	Copy New
Available Tape Widths	8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm
Compatible Machine Series	CP7, CP742, CP743
Package	Carton box with foam protection
Warranty Period	3 months
Delivery Options	UPS, DHL, FedEx, as required
Product Type	SMT Machine Part

CP7 Feeder Design Features

Precision Feeding Structure

The CP7 feeder uses a mechanical indexing structure to advance component tape at fixed intervals, aligning each component with the pick-up position of the placement head. The indexing mechanism maintains consistent pitch accuracy across continuous feeding cycles, which supports stable pick-up success rates during production runs. The feeder structure matches the positioning interface of compatible machine models for direct installation.

Multi-Width Tape Compatibility

The CP7 feeder series is available in multiple width specifications, from 8mm up to 72mm, to accommodate different component package sizes. Each width variant corresponds to standard SMT component tape dimensions, covering small chip components up to larger integrated circuit packages. Procurement teams can select matching width specifications based on their component portfolio.

Accessible Maintenance Design

The feeder structure is designed for disassembly and adjustment, with accessible wear parts and adjustment points. Maintenance personnel can perform routine adjustments, part replacement, and cleaning without specialized custom tools, which reduces downtime during feeder maintenance and calibration. The design supports on-site troubleshooting for common feeding issues.

CP7 Feeder Application Scenarios

CP7 series feeders are used across electronic manufacturing facilities with FUJI CP7-series placement lines. In consumer electronics assembly plants, they support high-volume feeding of chip components for mobile accessories, household appliance boards, and digital product PCBs. In automotive electronics production, they handle component feeding for vehicle control modules and sensor circuit boards.

They also apply to telecommunications equipment assembly lines, including feeding components for network device boards and communication terminal assemblies. For medical device manufacturing facilities, the feeders support consistent component supply for precision circuit board assembly. They are also suitable for mixed-product production lines that handle multiple component sizes across different product batches.

Packaging & Delivery Specifications

Each feeder undergoes functional testing before shipment, including indexing accuracy checks and installation interface verification. Feeders are packaged in carton boxes with internal foam padding to prevent damage during transport. The product comes with a 3-month warranty covering functional defects under normal operating conditions. Delivery options include UPS, DHL, and FedEx, with custom shipping arrangements available upon request for enterprise customers.

FAQ

What tape widths are available for CP7 feeders?

The CP7 feeder series is available in 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, and 72mm width variants, covering standard SMT component tape dimensions.

Which FUJI pick and place models work with CP7 feeders?

CP7 series feeders are compatible with FUJI CP7, CP742, and CP743 model pick and place machines, with direct installation and full functional compatibility.

What is the warranty period for this feeder?

The warranty period for the CP7 series feeder is 3 months from the date of delivery, covering functional defects under normal operating and maintenance procedures.
