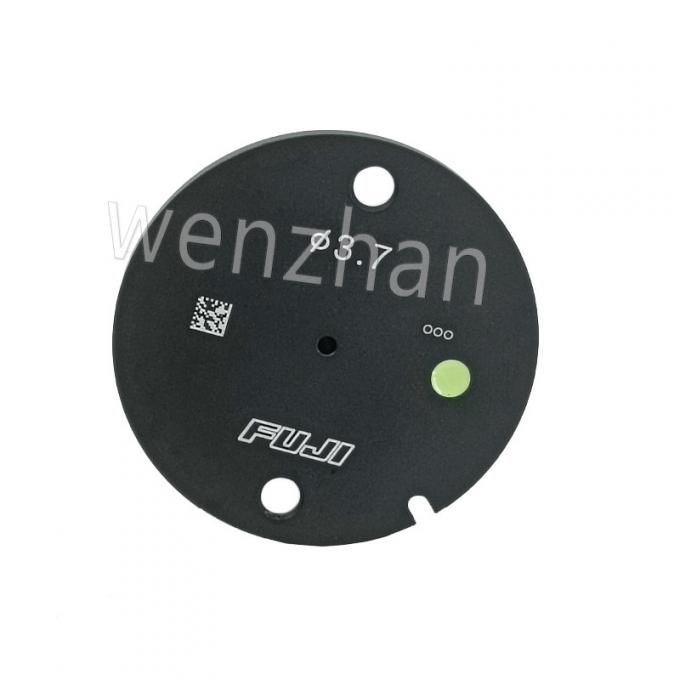

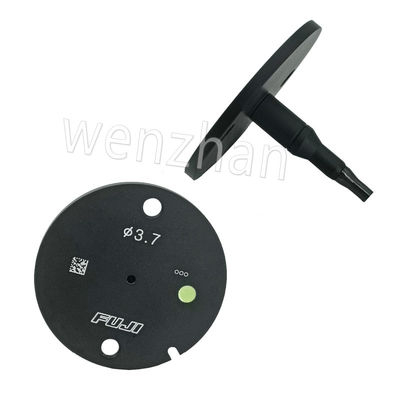

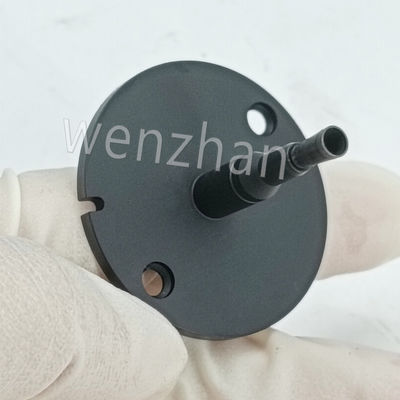

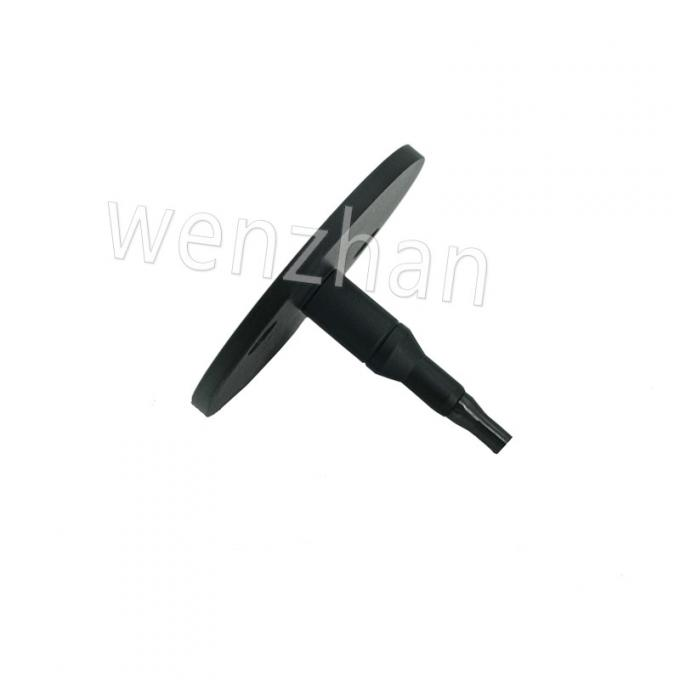

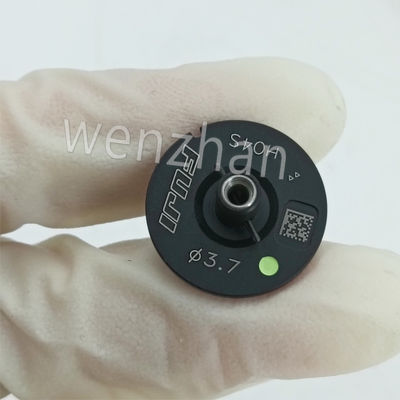

The FUJI AA0HN11 is a 3.7 specification SMT placement nozzle designed for FUJI SMT pick and place machines. It is compatible with H01, H02 and H04S series placement heads used on FUJI NXT platform machines. As a consumable part for SMT production lines, this nozzle is used for picking and placing surface mount components during automated PCB assembly.
This nozzle model is intended for commercial procurement and production line maintenance, serving as a direct replacement for original equipment nozzles to maintain normal production throughput and placement accuracy. It supports routine replacement and backup inventory for SMT assembly workshops.
This nozzle type applies to standard SMT assembly lines for electronic products, including consumer electronics, automotive electronic components, and industrial circuit board production. It works in high-cycle production environments, supporting continuous placement operations for medium and high volume production runs.
Fuji NXT / XP Series | NXT Head Specific Nozzles | Special and Custom Nozzles |
|---|---|---|
Fuji NXT nozzle | NXT H01 nozzle | Fuji H24HS nozzle |
Fuji XP141 nozzle | NXT H02 nozzle | Fuji H24S nozzle |
Fuji XP142 nozzle | NXT H04 nozzle | fuji special nozzle |
Fuji XP143 nozzle | NXT H08 nozzle | fuji customized nozzle |
Fuji XP242 nozzle | NXT H12 nozzle | nxt special nozzle |
FUJI CP6 nozzle | NXT H24 nozzle | nxt customized nozzle |
FUJI CP7 nozzle | Fuji H12HS nozzle | |
FUJI CP8 nozzle | Fuji H12S nozzle | |
 |  |  |
Each AA0HN11 nozzle undergoes 100% functional inspection before shipment, including vacuum pickup test, dimensional check, and mounting interface verification. The inspection process confirms that the nozzle fits corresponding placement heads and maintains stable pickup performance for standard components.
Inventory is maintained in warehouse for immediate shipment, with stock levels monitored to support both single unit replacement and bulk procurement for production line backup.
The 3.7 specification nozzle supports pickup and placement of standard surface mount chip components within its designed size range. It mounts directly onto FUJI H01, H02 and H04S placement heads without modification, allowing direct replacement of original nozzles without additional adjustment to machine programs.
For production lines operating multiple FUJI machine platforms, the full range of nozzle models listed in the reference table can be supplied as a consolidated procurement order to simplify purchasing management.
The AA0HN11 3.7 nozzle is kept in large stock, allowing shipment within standard lead times after order confirmation. For bulk orders for enterprise customers, stock availability and delivery schedules can be confirmed prior to order placement.
Each nozzle is packed in a foam insert and plastic box, with outer carton packaging for transit. This packaging structure protects the nozzle tip and mounting interface from physical damage and dust contamination during international shipping.
Delivery is available via UPS, DHL, FedEx, or other carriers specified by the purchaser.
The AA0HN11 3.7 nozzle is compatible with FUJI H01, H02 and H04S series placement heads, which are used on NXT platform SMT machines. Buyers should confirm their head type before placing orders.
Yes, this 3.7 specification nozzle is designed for standard surface mount chip components within its applicable size range, matching the performance parameters of original equipment nozzles.
Yes, a full range of FUJI SMT nozzles are available, including models for NXT, XP and CP series machines, as well as special and customized nozzles for specific component types. All listed models are available for procurement inquiry.
