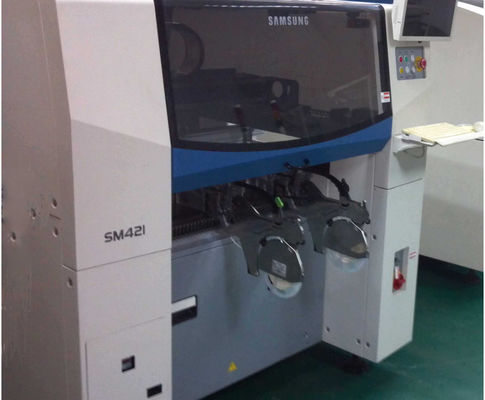

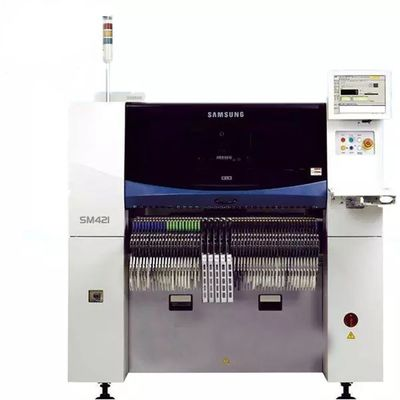

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE

MOQ: 1pcs
Price: Negotiable
Standard Packaging: 1.wooden case 2.As your order
Delivery Period: 3-5 days
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 10 Piece/Pieces per Week
Detail Information
Place of Origin
South Korea
Brand Name
SAMSUNG/ HANWHA
Model Number
SM421
Product Name:
SAMSUNG SM421 Pick And Place Machine
Model Number:
SM421
Quality:
Top
Package:
Wooden Case
Condition:
New, New/used
Type:
SMT Machine Related Products
Brand:
Samsung
Delivery:
Ups,dhl,fedex,as Your Order
Highlight:

21000CPH smt chip mounter

,

IPC9850 smt chip mounter

,

21000CPH samsung chip mounter

Product Description

Good condition SMT pick and plac machine SAMSUNG SM421

Name: SAMSUNG Pick And Place Machine
Brand: SAMSUNG
Model: SAMSUNG SM421 Pick And Place Machine
Specification: SAMSUNG SM421 Pick And Place Machine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect



SM421S powerful function advantages:

1: Maximum PCB support: 750X500 optional standard: 610×400 Greater PCB adaptability (LED lighting)

2: High precision and low noise design, stronger and faster device library

Three: Powerful Chinese and English Windows NT operating system

Four: Bad board and bad point recognition system

Five: The smallest device 0402-22MM / 32MM (35MM fixed camera)

Six: Non-stop electronic feeder system



Samsung SM421 parameters

Mounting Speed: 21,000 CPH / Chip (IPC9850 Reference)
5,500 CPH / QFP (IPC9850 Baseline)
- Placement: ± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP
- Component Range: Max, 0402 (01005) Chip ~ □ 55mm
0603 (0201) Chip ~ 55mm (standard)
Chip Theoretical Speed 21,000 CPH / Chip
Mounting range 0603 tiny chip to □ 22mmIC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) x 400 (W) mm
Device Size 1650 (L) x 1690 (D) x 1485 (H)
- PCB:
460 (L) x 400 (W) mm
510 (L) x 460 (W) mm (option)
610 (L) x 510 (W) mm (option)
-IT and batch tracking system
- Feeder: Max. 120 (8mm feeders)
- Feeder: Max. 60 (8mm feeders) SM421S
- Dimensions: 1650 (L) x 1690 (D) x 1485 (H)



SM421 uses Samsung’s patented On The Fly identification system for fast placement, which can support from 0603 microchips to 22mmIC components. It is also equipped with high-pixel vision in the Stage Camera, so that 45mm cameras can recognize standard precision micro-pitch components of 42mm and 0.4mm.



The SM421 uses the Samsung's patented On The Fly identification system, which fits quickly from
0603 tiny chips to 22mmIC components. It also features high pixel vision in the Stage Camera to
identify standard 42mm, 0.4mm precision micro-pitch components with a 45mm camera.

IC components can be mounted with high precision of 30 microns, and polygon recognition
algorithms are also supported. Components with complex shapes can be easily mounted.
The best performance at the same level, the production capacity of 20-40% higher than the same level.

New non-stop refueling feeder to improve efficiency, semi-electric operation, stability and high

reliability. Easy operation, programming line changing speed Fast. Offline programming,
Line balancing and other software functions are complete, with Chinese display less wearing parts,
low maintenance costs, low noise, low energy consumption and cost savings.

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE 0
SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE 1

Advanced
High Speed Flexible Mounter
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip
shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized
a chip placement speed of 39,000 CPH, the highest among the same class component placers, by applying a head
with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion. In
addition, it is applicable up to 0402(01005 inch) chips and 42mm ICs. It has improved actual productivity and
placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is
designed to be compatible with SM series pneumatic feeders, it maximizes the customer's operational convenience.

39,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable Parts : 0402(01005 inch)
~ 42mm(H15mm)
Applicable PCB : 460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
High Speed, High Precision and Electrically
Driven Feeder
- Automatic pick-up position alignment function
- Compatible with SM pneumatic feeders
New Vacuum System and Optimized Pickup/
Placement Motion
SMART Feeder
- World's first Auto Loading and Auto Splicing
Fresh Energy in Your Business
Applies a New Vacuum System
July. 2013
Advanced High Speed Flexible Mounter
Part Polarity Recognition BGA and CSP Recognition
Realizes the highest placement speed among the same

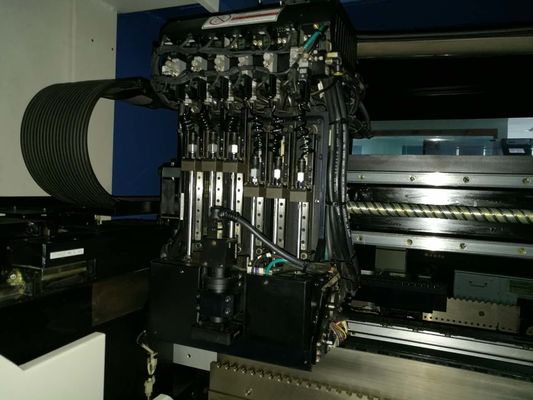

class chip placers by applying a new flying head
mechanism with 10 spindles as well as optimized
pickup/placement motion
Since it allows part recognition without stopping after part pickup by
applying its original On-the-Fly image recognition technology, the SM481
model maximizes the part placement speed by minimizing the time to
move between the pickup position and placement position and by
reducing the recognition time to almost zero.
Realizes Super-high
Placement Speed of 39,000 CPH
Placement accuracy correction system
Chip ±50μm(Cpk ≥1.0)
The newly upgraded placement accuracy calibration
system automatically checks and corrects the
pickup point offset, head offset, C/V offset, etc.
to allow reliable part placement.
Absolute Accuracy of±50μm(Cpk 1)
Electrically Driven High Speed
and High Precision Feeder
Electrically driven SM feeder
• Allows integrated use of 0603/2P/4P
• Equipped with a function to automatically align
the pickup position between feeders to improve
the simultaneous pickup rate.
• Able to set various part supply speeds to
improve the stability of part supply.
• Automatic feeding pitch recognition function
 Compatible with SM pneumatic feeders
SM smart feeder
• The world's first feeder equipped with Auto Splicing
and Auto Loading functions
- Maximizes work convenience and actual
productivity by automating the splicing
process for part reel replacement normally
performed by hand.

Specifications
Model SM481
Alignment Flying Vision + Stage Vision(Option)
Number of Spindles 10 Spindles x 1 Gantry
Placement Speed 39,000 CPH(Optimum)
Placement
Accuracy
Chip/QFP
±50μm@μ+3σ/Chip, ±30μm@μ+3σ/QFP
(Based on the standard chips)
Component
Range
Flying
Vision
FOV 24
0402(01005 inch) ~ 16mm IC, Connector(Lead Pitch 0.4mm)
* BGA, CSP(Ball Pitch 0.4mm)
Stage
Vision
Board
Dimension
(mm)
Minimum 50(L) x 40(W)
Maximum
460(L) x 400(W) 510(L) x 460(W)(Option)
610(L) x 510(W)(Option) 740(L) x 460(W)(Option)
PCB Thickness 0.38 ~ 4.2
Feeder Capacity 120ea / 112ea(Docking Cart)
Utility
Power
AC 200 / 208 / 220 / 240 / 380 / 415 V
(50/60Hz, 3Phase) Max. 4.7kVA
Air Consumption
Mass Approx. 1,655kg
External Dimension(mm) 1,650(L) x 1,680(D) x 1,530(H)
Present Reel
New Reel
• Minimized delay of part placement due to optimization
of pneumatic path
• Realizes stabilized part pickup and minimized air
consumption by applying a vacuum pump

Reinforced Applicability to Parts and PCBs
Applies a New Illumination System
• Applicable to parts from 0402(01005 inch) to
42mm(H15mm) as well as BGA/CSP parts
• Applicable to Max. 740(L) x 460(W) PCBs for long
boards applied to LEDs and displays
• Supports automatic recognition of the entire pickup
position by being equipped with a fiducial camera at
the left and right respectively
Reinforced applicability to odd-shaped parts including
BGA, CSP, etc., by applying three-staged illumination
systems(Side, Coaxial and Outer illumination).

Related Product

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,

nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!

The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE 2
products
PRODUCTS DETAILS
SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE
MOQ: 1pcs
Price: Negotiable
Standard Packaging: 1.wooden case 2.As your order
Delivery Period: 3-5 days
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 10 Piece/Pieces per Week
Detail Information
Place of Origin
South Korea
Brand Name
SAMSUNG/ HANWHA
Model Number
SM421
Product Name:
SAMSUNG SM421 Pick And Place Machine
Model Number:
SM421
Quality:
Top
Package:
Wooden Case
Condition:
New, New/used
Type:
SMT Machine Related Products
Brand:
Samsung
Delivery:
Ups,dhl,fedex,as Your Order
Minimum Order Quantity:
1pcs
Price:
Negotiable
Packaging Details:
1.wooden case 2.As your order
Delivery Time:
3-5 days
Payment Terms:
T/T, Western Union, Paypal, Credit card
Supply Ability:
10 Piece/Pieces per Week
Highlight

21000CPH smt chip mounter

,

IPC9850 smt chip mounter

,

21000CPH samsung chip mounter

Product Description

Good condition SMT pick and plac machine SAMSUNG SM421

Name: SAMSUNG Pick And Place Machine
Brand: SAMSUNG
Model: SAMSUNG SM421 Pick And Place Machine
Specification: SAMSUNG SM421 Pick And Place Machine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect



SM421S powerful function advantages:

1: Maximum PCB support: 750X500 optional standard: 610×400 Greater PCB adaptability (LED lighting)

2: High precision and low noise design, stronger and faster device library

Three: Powerful Chinese and English Windows NT operating system

Four: Bad board and bad point recognition system

Five: The smallest device 0402-22MM / 32MM (35MM fixed camera)

Six: Non-stop electronic feeder system



Samsung SM421 parameters

Mounting Speed: 21,000 CPH / Chip (IPC9850 Reference)
5,500 CPH / QFP (IPC9850 Baseline)
- Placement: ± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP
- Component Range: Max, 0402 (01005) Chip ~ □ 55mm
0603 (0201) Chip ~ 55mm (standard)
Chip Theoretical Speed 21,000 CPH / Chip
Mounting range 0603 tiny chip to □ 22mmIC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) x 400 (W) mm
Device Size 1650 (L) x 1690 (D) x 1485 (H)
- PCB:
460 (L) x 400 (W) mm
510 (L) x 460 (W) mm (option)
610 (L) x 510 (W) mm (option)
-IT and batch tracking system
- Feeder: Max. 120 (8mm feeders)
- Feeder: Max. 60 (8mm feeders) SM421S
- Dimensions: 1650 (L) x 1690 (D) x 1485 (H)



SM421 uses Samsung’s patented On The Fly identification system for fast placement, which can support from 0603 microchips to 22mmIC components. It is also equipped with high-pixel vision in the Stage Camera, so that 45mm cameras can recognize standard precision micro-pitch components of 42mm and 0.4mm.



The SM421 uses the Samsung's patented On The Fly identification system, which fits quickly from
0603 tiny chips to 22mmIC components. It also features high pixel vision in the Stage Camera to
identify standard 42mm, 0.4mm precision micro-pitch components with a 45mm camera.

IC components can be mounted with high precision of 30 microns, and polygon recognition
algorithms are also supported. Components with complex shapes can be easily mounted.
The best performance at the same level, the production capacity of 20-40% higher than the same level.

New non-stop refueling feeder to improve efficiency, semi-electric operation, stability and high

reliability. Easy operation, programming line changing speed Fast. Offline programming,
Line balancing and other software functions are complete, with Chinese display less wearing parts,
low maintenance costs, low noise, low energy consumption and cost savings.

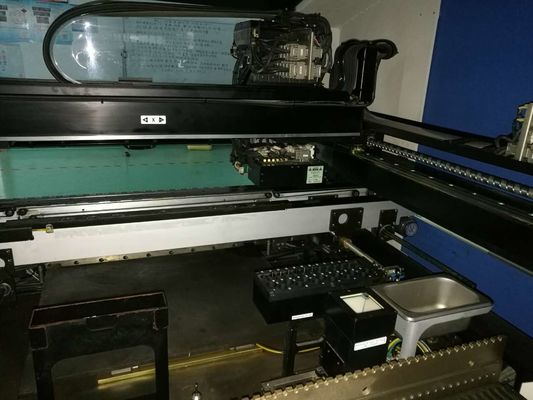

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE 0

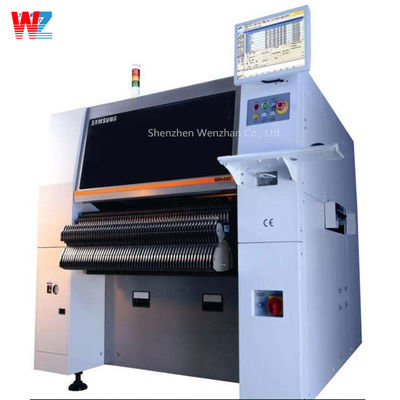

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE 1

Advanced
High Speed Flexible Mounter
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip
shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized
a chip placement speed of 39,000 CPH, the highest among the same class component placers, by applying a head
with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion. In
addition, it is applicable up to 0402(01005 inch) chips and 42mm ICs. It has improved actual productivity and
placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is
designed to be compatible with SM series pneumatic feeders, it maximizes the customer's operational convenience.

39,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable Parts : 0402(01005 inch)
~ 42mm(H15mm)
Applicable PCB : 460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
High Speed, High Precision and Electrically
Driven Feeder
- Automatic pick-up position alignment function
- Compatible with SM pneumatic feeders
New Vacuum System and Optimized Pickup/
Placement Motion
SMART Feeder
- World's first Auto Loading and Auto Splicing
Fresh Energy in Your Business
Applies a New Vacuum System
July. 2013
Advanced High Speed Flexible Mounter
Part Polarity Recognition BGA and CSP Recognition
Realizes the highest placement speed among the same
class chip placers by applying a new flying head
mechanism with 10 spindles as well as optimized
pickup/placement motion
Since it allows part recognition without stopping after part pickup by
applying its original On-the-Fly image recognition technology, the SM481
model maximizes the part placement speed by minimizing the time to
move between the pickup position and placement position and by
reducing the recognition time to almost zero.
Realizes Super-high
Placement Speed of 39,000 CPH
Placement accuracy correction system
Chip ±50μm(Cpk ≥1.0)
The newly upgraded placement accuracy calibration
system automatically checks and corrects the
pickup point offset, head offset, C/V offset, etc.
to allow reliable part placement.
Absolute Accuracy of±50μm(Cpk 1)
Electrically Driven High Speed
and High Precision Feeder
Electrically driven SM feeder
• Allows integrated use of 0603/2P/4P
• Equipped with a function to automatically align
the pickup position between feeders to improve
the simultaneous pickup rate.
• Able to set various part supply speeds to
improve the stability of part supply.
• Automatic feeding pitch recognition function
 Compatible with SM pneumatic feeders
SM smart feeder
• The world's first feeder equipped with Auto Splicing
and Auto Loading functions
- Maximizes work convenience and actual
productivity by automating the splicing
process for part reel replacement normally
performed by hand.

Specifications
Model SM481
Alignment Flying Vision + Stage Vision(Option)
Number of Spindles 10 Spindles x 1 Gantry
Placement Speed 39,000 CPH(Optimum)
Placement
Accuracy
Chip/QFP
±50μm@μ+3σ/Chip, ±30μm@μ+3σ/QFP
(Based on the standard chips)
Component
Range
Flying
Vision
FOV 24
0402(01005 inch) ~ 16mm IC, Connector(Lead Pitch 0.4mm)
* BGA, CSP(Ball Pitch 0.4mm)
Stage
Vision
Board
Dimension
(mm)
Minimum 50(L) x 40(W)
Maximum
460(L) x 400(W) 510(L) x 460(W)(Option)
610(L) x 510(W)(Option) 740(L) x 460(W)(Option)
PCB Thickness 0.38 ~ 4.2
Feeder Capacity 120ea / 112ea(Docking Cart)
Utility
Power
AC 200 / 208 / 220 / 240 / 380 / 415 V
(50/60Hz, 3Phase) Max. 4.7kVA
Air Consumption
Mass Approx. 1,655kg
External Dimension(mm) 1,650(L) x 1,680(D) x 1,530(H)
Present Reel
New Reel
• Minimized delay of part placement due to optimization
of pneumatic path
• Realizes stabilized part pickup and minimized air
consumption by applying a vacuum pump

Reinforced Applicability to Parts and PCBs
Applies a New Illumination System
• Applicable to parts from 0402(01005 inch) to
42mm(H15mm) as well as BGA/CSP parts
• Applicable to Max. 740(L) x 460(W) PCBs for long
boards applied to LEDs and displays
• Supports automatic recognition of the entire pickup
position by being equipped with a fiducial camera at
the left and right respectively
Reinforced applicability to odd-shaped parts including
BGA, CSP, etc., by applying three-staged illumination
systems(Side, Coaxial and Outer illumination).

Related Product

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,

nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!

The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine

SMT Chip Mounter HANWHA SAMSUNG SM421 PICK AND PLACE MACHINE 2
