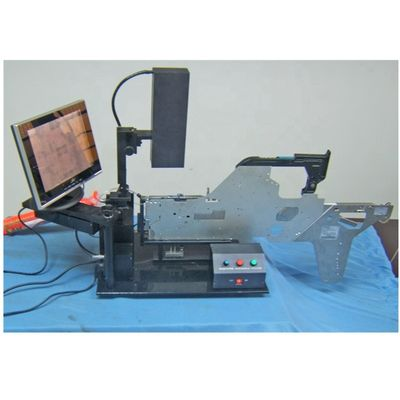

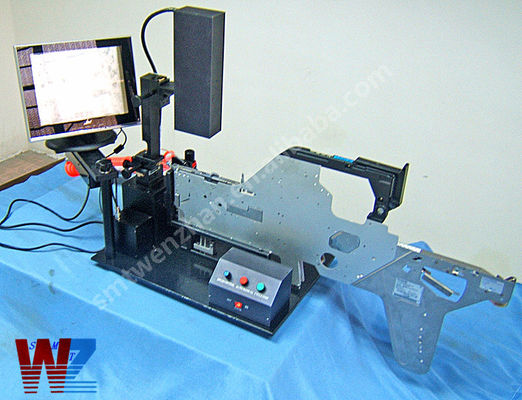

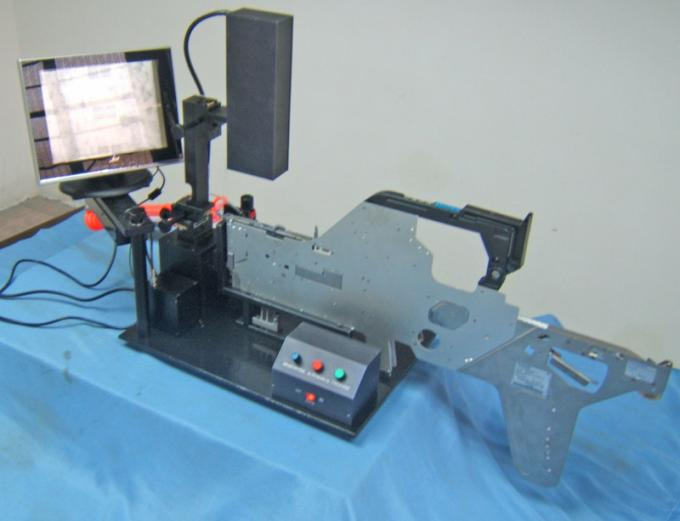

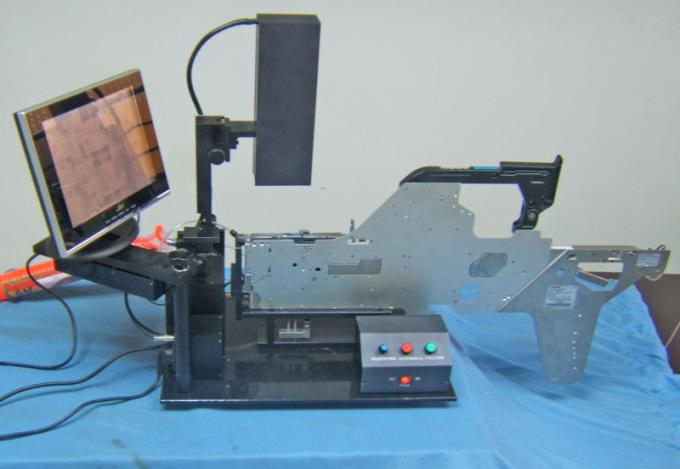

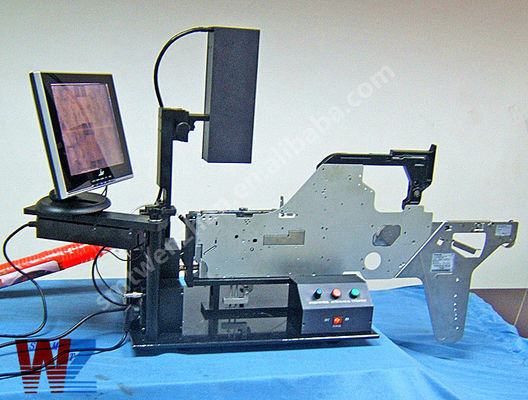

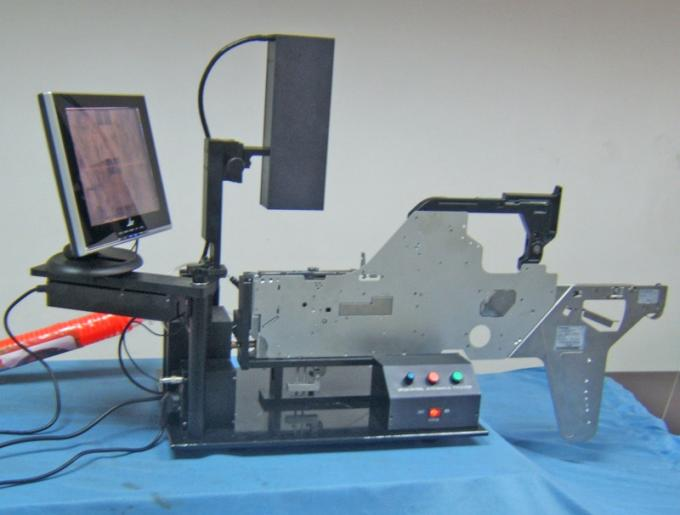

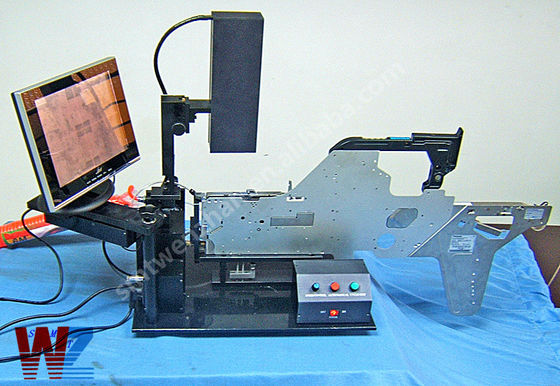

Introduction to the BM Feeder Calibration Jig

The BM Feeder Calibration Jig is a professional precision tool designed for accurate calibration and performance verification of BM-type SMT feeders. It provides a stable and controlled platform to check feeding pitch, positioning accuracy, and mechanical alignment before the feeder is installed on the pick-and-place machine. By performing calibration off-line, manufacturers can significantly reduce production downtime and ensure optimal feeder performance on the SMT line.

Key Advantages

• High-Precision Calibration: Ensures accurate feeder indexing and component positioning, reducing mis-picks and placement errors.

• Stable Mechanical Structure: Rigid design minimizes vibration and ensures repeatable, reliable calibration results.

• Offline Testing Capability: Allows feeders to be calibrated and verified without interrupting production.

• User-Friendly Operation: Simple setup and clear calibration process enable quick and efficient use by operators.

• Durable Industrial Design: Manufactured with high-strength materials suitable for long-term factory use.

Application Range

The BM Feeder Calibration Jig is widely used in:

• SMT production lines utilizing BM-type feeders

• Feeder maintenance and quality control departments

• EMS and OEM electronics manufacturing plants

• SMT service centers and equipment support facilities

It is an essential tool for maintaining feeder accuracy and ensuring stable SMT production.

Compatible Machine Models

This calibration jig is suitable for BM feeders used on:

• BM series pick-and-place machines

• SMT equipment supporting BM feeder platforms

• Customized SMT automation systems using BM feeders

Compatibility depends on feeder specifications and system configuration.

Our Company Advantages

We provide high-quality BM Feeder Calibration Jigs with:

• Factory Direct Manufacturing: In-house production ensures consistent quality and competitive pricing.

• Sufficient Inventory: Large stock available for fast delivery and continuous supply.

• Strict Quality Control: Each jig is fully inspected for precision, stability, and durability.

• Reliable After-Sales Support: Professional technical assistance, calibration guidance, and warranty service.

With strong manufacturing capability, guaranteed quality, and comprehensive after-sales support, we are your reliable partner for SMT feeder calibration solutions.
