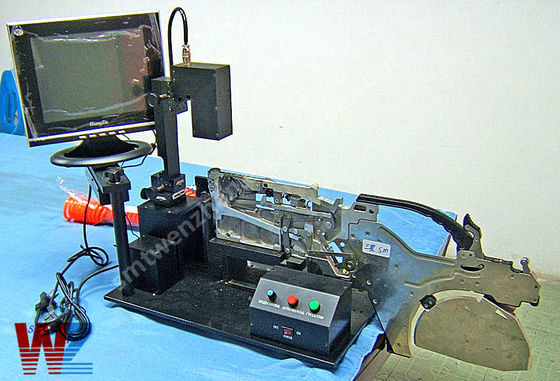

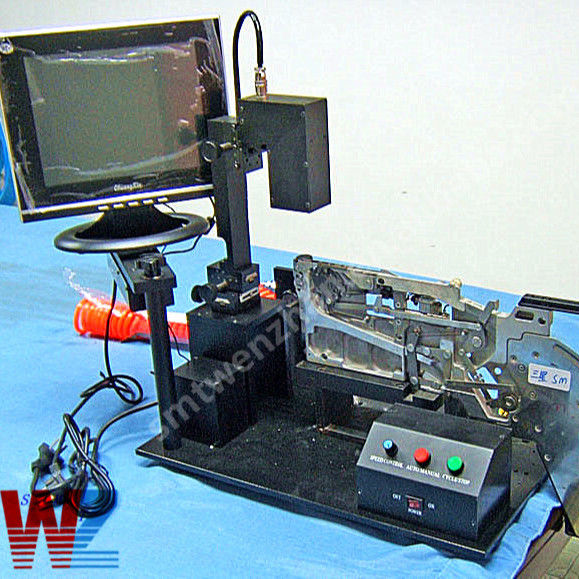

SAMSUNG SMT MACHINE CP FEEDER CALIBRATION JIG

Product Details:
Place of Origin: South Korea
Brand Name: SAMSUNG
Model Number: CP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 1.wooden case 2.As your order
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, Paypal, Credit card
Supply Ability: 5000 Piece/Pieces per Week
  • Detail Information
  • Product Description

Detail Information

Product Name: SAMSUNG SMT MACHINE CP FEEDER CALIBRATION JIG Model Number: CP
Quality: Top Package: Wooden Case
Condition: New, New/used Material: Metal
Brand: SAMSUNG Voltage: 220V
Size: L500*W350*H500(MM)

Product Description

Detailed Product Description
This product adopts CCD with high times magnifier, through a MONITOR observation into components situation, Lever needle

up and down work conditions, the LEVER fray, decrease FEEDER false and the cause of throwing problem, to the exaltation

the good chip-placement ratio more help.



Characteristic:

1. The operation is simple, the external appearance is simple and cleverly.

2. X, Y, H -three stalks, adoption Japan importing and the high accuracy wheel gear drive, precision and credibility.

3. 50X CCD;with LED lighting, appearance clearer.

4. Install dynamoelectric, single and continuous strike LEVER, simulate machine action.

5. Observing the wheel gear dynamic state step the conditions.

6. With standard calibration Ruler to adjust component centeral.



Samsung Feeder Calibration Jig is used to storage Samsung SMT feeder such as CP feeder, SM feeder, SME feeder and

so on for Samsung SMT pick and place machines such as CP40, CP45FV, CP45FV NEO, SM310, SM320, SM321/321S,

SM421/421S, SM411, SM431, SM471, SM481, SM482, DECAN S2/F2/L2, EXCEN PRO and so on.



SPECIFICATION:

Working Voltage
220V/AC(50Hz) 60W
Machine Size
350*500*550 mm
Machine Weight
45Kg



Box list:

Name and Description
Quantity
Use Manual
1 Pcs
12 Inch LCD Monito
1 Set
Machine Unit
1 Set
Calibration ruler
1 Pcs
SAMSUNG SMT MACHINE CP FEEDER CALIBRATION JIG 0
