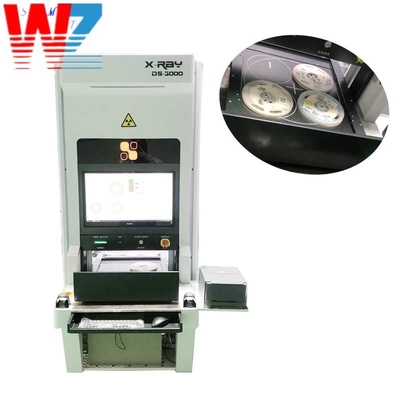

Automatic Electronic Smt X Ray Reel Components XRay Counting Machine X-Ray Intelligent Counter

The X-ray intelligent counter is a sophisticated device used for counting and detecting objects in X-ray images. It utilizes advanced image processing algorithms and artificial intelligence to accurately identify and count specific items or substances within X-ray scans. The counter is commonly employed in various industries, such as security, healthcare, and manufacturing, where precise counting and detection of objects is crucial.

1. Object Detection: The counter can detect and identify specific objects or substances based on predefined criteria. For example, in a security setting, it can identify weapons, explosives, or contraband items within luggage or packages.
2. Object Counting: The counter accurately counts the number of instances of a particular object within an X-ray image. This feature is valuable in scenarios where inventory management or quality control is essential. It can count items like pills in pharmaceutical manufacturing or components in electronic assembly lines.
3. Anomaly Detection: The counter can identify anomalies or irregularities within X-ray scans. It compares the scanned image with a reference model or database to flag any deviations.
4. Image Analysis: The counter performs detailed analysis of X-ray images, extracting relevant information and providing visual representations of the scanned objects. It can generate heat maps, highlight specific areas of interest, or superimpose labels to aid in interpretation.

1. Image Acquisition: Capture or import the X-ray image or scan that needs to be analyzed. This can be done using compatible X-ray equipment or by importing digital scans.
2. Preprocessing: Prepare the image for analysis by applying necessary adjustments, such as noise reduction, contrast enhancement, or image calibration. This step ensures optimal image quality for accurate detection and counting.
3. Object Selection and Configuration: Define the specific objects or substances to be detected and counted. This involves configuring the counter with the appropriate parameters, such as size, shape, or density thresholds, depending on the target objects.
4. Analysis and Reporting: Initiate the analysis process, allowing the counter to detect, count, and analyze the objects within the X-ray image. The results can be displayed in real-time or saved for later review. Generate reports summarizing the findings if required.
5. Interpretation and Decision-making: Review the analyzed results and interpret the information provided by the counter. Make informed decisions based on the detected objects, counts, and any flagged anomalies or irregularities.

Please keep in mind that my knowledge cutoff is in September 2021. There may have been advancements or updates to X-ray intelligent counters since then.

Use requirements: After the direct counting of the X-RAY intelligent counting machine is completed, the result data of the counting will be uploaded to the digital control system for updating.

• WO material return
• single LPN inventory
• initial inventory/double inventory.

1. Business type initiated by counting machine
   • The counting machine adds checked items in the operation interface;
   • High-line mode/WO material return/count sheet count point/single LPN count
     • Offline model

       No connection with IMS system, direct counting

     • WO Material Return

       Only applicable to the operation scenario of WO material return:

       LPN must be in "push status"

     • Counting sheet count

       Applicable to the "custom count" function of IMS;

       LPN must be in the "locked status" of the count sheet

     • Single LPN count

       Correction of the number of single LPN in the "library" state

2. The point modem calls the IMS interface and transmits the following information to the IMS:

   LPN number, business type code

3. LPN verification:

   IMS judges whether the current status of LPN is consistent with the selected service type

   • Verification passed: IMS returns the OK message,
   • Point data machine starts counting and enters the next step
   • Verification failed:
   • IM5 returns NG information, and the counting machine displays in the pop-up box on the operation interface
   • IMS error message, stop count
4. The counting machine returns the counting result data: LPN number and counting quantity

   IMS updates the remaining number of LPN, returns the result information, and prompts the IMS data update result on the computer interface

1. The equipment can be used without connecting to the digital control system to realize direct counting in offline mode.
2. The offline mode can realize full automatic counting, full automatic label printing, and full automatic count report generation.

Offline mode label printing rules
