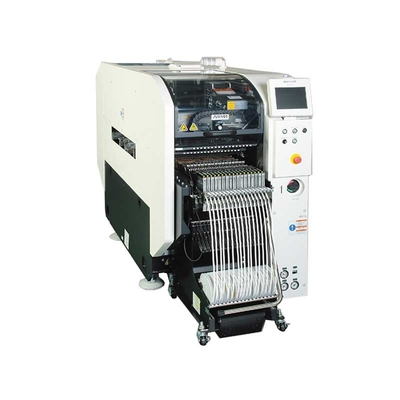

SMT Chip Mounter NPM D3A Pick And Place Machine

SMT Chip Mounter NPM D3A Pick And Place Machine
Product Model
NPM D3A
Country Of Origin
Japan
MOQ
1pcs
Unit Price
92957$
Payment Method
T/T,Western Union,Paypal,Credit card
Supply Capacity
3000
Product Details
Product Name: Chip Mounter NPM D3A
Model: NPM D3A
Condition: New And Used
Power: 200-480V
PCB Size: 50*50mm
Quality: Top
Mounting Speed: 84,000 CPH
Type: Smt Pick And Place Machine
Product Description
Detailed Specifications And Features
in stock! Chip Mounter NPM D3A pick and place machine npm machine
Features & Benefits

Plus new enhancements:

  • Compact footprint - scale production to your factory needs
  • Quick-change feeder carts, nozzle banks, and process heads
  • Compatible with CM- & AM-series intelligent feeders & nozzles
  • Board warp detection, Adaptive Process Control (APC), and Auto Board Support Pin
  • Industry's first 3D Multi Recognition Camera
  • Lightweight 16-nozzle head (for 84,000 CPH)
  • Increased placement accuracy to 25um (cpk ≥1.0)
Key Specifications
  • Max PCB:L 510 * W 590mm
  • Placing Speed: 46000CPH
  • Max Feeder: 68 reels
  • Weight: 1680kg
Model ID NPM-D3A
PCB dimensions (mm) *1 Dual-lane mode L 50 * W50 ~ L 510 * W 300
Single-lane mode L 50 * W50 ~ L 510 * W 590
PCB exchange time Dual-lane mode 0s* *No 0s when cycle time is 3.6 s or less
Single-lane mode 3.6s* *When selecting short conveyors
Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA
Pneumatic source *2 0.5 MPa, 100 L /min (A.N.R.)
Dimensions (mm) *2 W 832 * D 2 652 *3 * H 1 444 *4
Mass 1 680 kg (Only for main body : This differs depending on the option configuration.)
Placement head Lightweight 16-nozzle head V3 (Per head)
High production mode [ON] High production mode [OFF]
Max. speed 46 000 cph (0.078 s/ chip) 38 000 cph (0.095 s/ chip)
Placement accuracy (Cpk≧1) ±37 μm/chip ±30 μm / chip (±25 μm / chip *5)
Component dimensions (mm) 0402 chip *6 ~ L 6 * W 6 * T 3 03015 *6*7/0402 chip *6 ~ L 6 * W 6 * T 3
Component supply Taping Tape : 4 / 8 / 12 / 16 mm
Max. 68 (4, 8 mm tape, Small reel)

SMT Chip Mounter NPM D3A Pick And Place Machine 0
