SMT Detect Leak SMD Components Counter SMD Reel Counter Machine

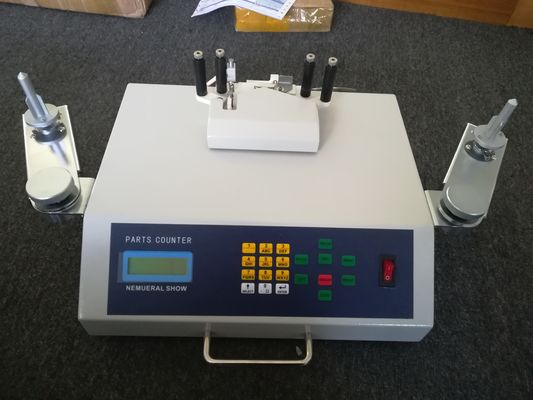

SMT/SMD components counter YS-802 detect leak chip counter machine

Name:SMT/SMD components counter YS-802 detect leak chip counter machine
Model: YS-802
Count range:-99999 ~ 99999pcs
Reel Width:8,12,16,24,32,44,56mm
Condition:original ··
Quality:top qualiy
Payment:T/T before shipment
Shipment:on-time shipment
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect

The YS-802 SMD counter is a device used for counting and measuring surface mount devices (SMDs). It is commonly used in electronic manufacturing and assembly processes to keep track of the quantities of SMD components.

The instrument is designed with a user-friendly interface, making it easy to operate. Here is a step-by-step guide on how to use the YS-802 SMD counter:

1. Power on the device by plugging it into a suitable power source.

2. Connect the input component reel to the counter. Make sure the reel is properly aligned and securely attached to the feeder.

3.Set the counting parameters using the control panel. This includes selecting the reel size, measuring units (e.g., pieces, meters, feet), and presetting the desired quantity limit if needed.

4. Load the SMD components onto the feeder tray. Ensure that the components are correctly positioned and aligned for accurate counting.

5. Press the start button to initiate the counting process. The YS-802 will automatically count the SMD components as they pass through the sensor.

6. Monitor the displayed count on the screen. The counter will provide real-time updates of the total counted quantity, as well as the remaining components.

7. If necessary, you can pause or stop the counting process using the control buttons. This allows you to inspect or remove a certain quantity of SMD components without interrupting the overall operation.

8. Once the desired quantity has been counted, the YS-802 will automatically stop the process and display the final count on the screen.

9. Take out the SMD components from the feeder tray and remove the empty reel, if applicable.

10. Repeat the process for additional reels or batches of SMD components as needed.

The YS-802 SMD counter is a versatile device that offers high accuracy and efficiency in counting SMD components. Its compact design and intuitive operation make it suitable for use in various electronic manufacturing environments.

In conclusion, the YS-802 SMD counter is a reliable tool for counting and measuring SMD components. By following the provided instructions, users can easily operate the device and accurately determine the quantities of SMD components during manufacturing processes.



Tie-in product:
Can be equipped with scanning gun and bar code printer for easy management.
Printable quantity, specification, batch number, time, work number.
