Product Details
Place of Origin: Guangdong, China
Brand Name: ODM
Model Number: SMD Counter
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 1.wooden case 2.As your order
Delivery Time: 3 days
Payment Terms: T/T, Western Union, Paypal, Credit card
Supply Ability: 5000 Piece/Pieces per Week
Product Name: |
SMT/SMD Components Counter Detect Leak Chip Counter Machine |
Model Number: |
SMD Counter |
Quality: |
Top |
Condition: |
NEW |
Type: |
SMD Counter |
Power Supply: |
AC220V/110V |
Weight: |
10KG |
Brand: |
ODM |
Delivery: |
Ups,dhl,fedex,as Your Order |
Warranty Period: |
1 Year |
Product Name: |
SMT/SMD Components Counter Detect Leak Chip Counter Machine |
Model Number: |
SMD Counter |
Quality: |
Top |
Condition: |
NEW |
Type: |
SMD Counter |
Power Supply: |
AC220V/110V |
Weight: |
10KG |
Brand: |
ODM |
Delivery: |
Ups,dhl,fedex,as Your Order |
Warranty Period: |
1 Year |

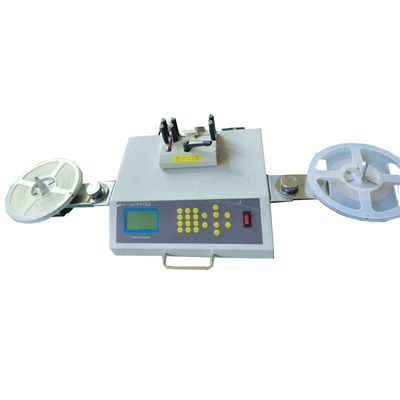

High precision Leak-Checking SMD Component Counter reel counter
一,mounting accessories:
Frame installation: remove the two hexagon socket screws at the back of the machine, fix the frame as shown in the picture and lock the screws
Installation of tow material disc: remove the screw from the left and right rocket head, place the tow material disc on the rocket head, and lock the screw as shown in the picture
二, Confirm whether the current power supply voltage is consistent with the machine voltage (if there is no special requirement, the machine's default voltage is 220V), turn on the machine switch in power on.
三, Loosen the hand screws on both sides of the machine counter clockwise, expand the material tray support on both sides into a shape, and then tighten the hand screws
| Scope | SMT belt component | Counting range | -99999--99999PCS |
| Material spacing | 2,4,8,10,12,16,20,24,32,44,56mm | Feeding Plate | ≤380mm |
| Size | L470*W300*H180 mm | ||
| Power | AC220/110,50HZ,30W | weight | 10KG |
A Mode: store issue mode:
After belt is installed, the machine can only operate by setting the count quantity. When the current count quantity reaches the set value, the machine will stop running
M mode:
After belt is installed,manually press the [stop] button will stop the operation
Open carefully the box of this machine and check the following items:
1. One set machine
2. a set of accessories(One instruction book, one optical frame, one power wire, two tow trays, two socket wrenches

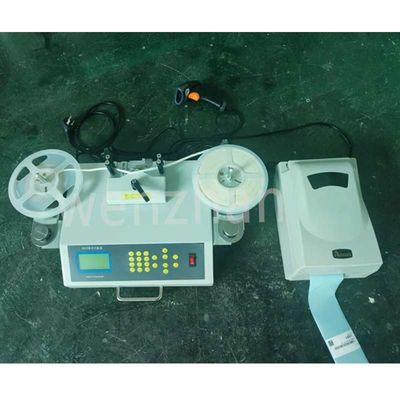

Tie-in product:
Can be equipped with scanning gun and bar code printer for easy management.
Printable quantity, specification, batch number, time, work number.
