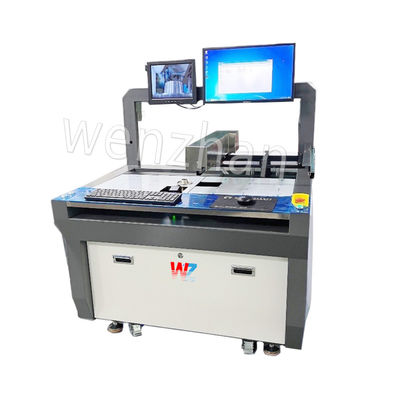

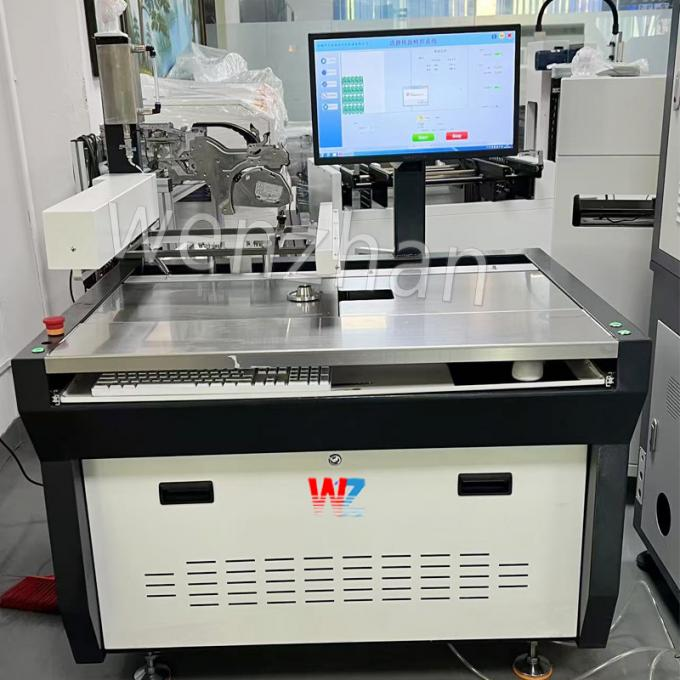

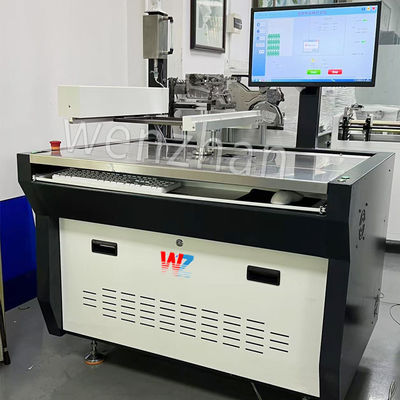

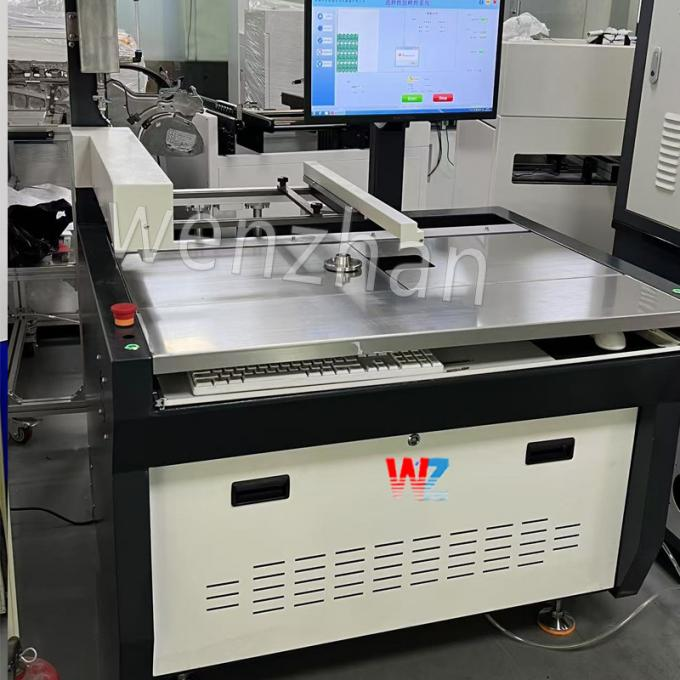

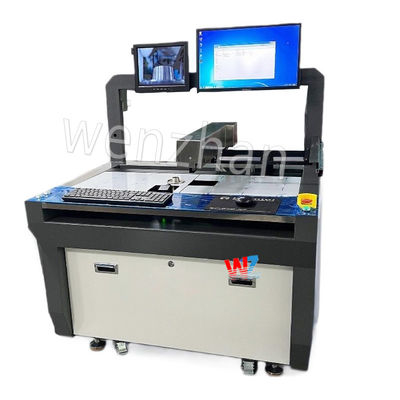

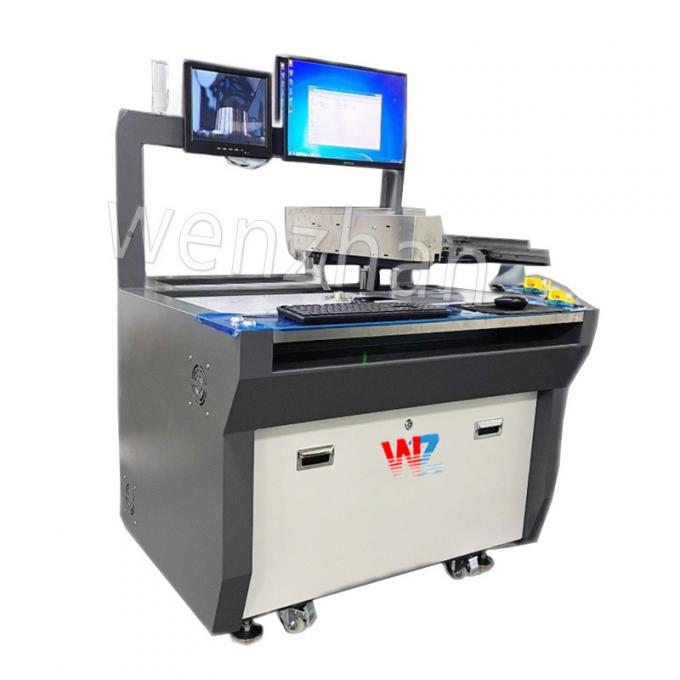

Selective Wave Soldering Machine Offline Selective Soldering Machine For PCB Welding

The Offline Selective Soldering Machine is a specialized device used in electronics manufacturing for soldering components onto printed circuit boards (PCBs) without the need for a complete assembly line setup. This machine is particularly useful for small to medium production runs and for reworking specific areas of a PCB.

The Offline Selective Soldering Machine is an essential tool for achieving high-quality soldering in electronics manufacturing, providing precision, efficiency, and versatility for various applications.

All software system developed by base on Windows7 system, with good trace-ability.

Use scanned picture as background for path programming, moving speed, dwell time, empty move speed, Z height , wave height etc all programmed for different solder site.

Critical parameters are totally under monitoring by PC software, like temperature, speed, pressure etc.

Motion table was designed base on lighting concept.

Servo motor and stepping motor provide motion power, ball screw synchronous belt and linear guide rail guide, accurate positioning, low noise, and smooth movement

Japan original injection valve, adapt to various flux

Flux is stocked by PP plastic pressure tank, make sure pressure stable without influenced of amount of flux.

Tin furnace temperature, nitrogen temperature, wave height, etc. can be set by computer

The tin furnace liner is made of titanium alloy stainless steel without leakage. External heating plate, uniform heat transfer

N2 online heating system, to wet the soldering perfectly and reduce the solder dross.

Load board manually and unload board manually

Metal welding structure, with thick metal plate as base, so to reduce vibration and make machine more stable.
