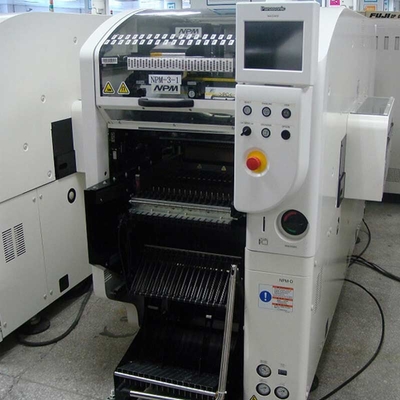

SMT Placement Machine Chip Mounter NPM-D3A Pick And Place Machine

Quantity:




Inquire Add to Basket

NPM-D3A SMT Placement Machine Chip Mounter SMT Placement Machine NPM-D3A Pick And Place Machine

Product Details

Highlight:

NPM-D3A SMT Placement Machine

,

Chip Mounter SMT Placement Machine

,

NPM-D3A Pick And Place Machine

Product Name: Chip Mounter NPM-D3A

Model: NPM-D3A

Condition: New And Used

Max. Speed: 46 000 Cph (0.078 S/ Chip)

Component Dimensions (Mm): 0402 Chip *6 ~ L 6 × W 6 × T 3

Quality: Top

Type: Smt Pick And Place Machine

Package: Wooden Box

Product Description

Detailed Specifications And Features

in stock! Chip Mounter NPM-D3A pick and place machine npm machine

The NPM-D3A is a high-performance pick-and-place machine designed for surface mount technology (SMT) assembly, widely used in the electronics manufacturing industry. Its advanced features and automation capabilities make it ideal for efficiently placing surface mount devices (SMDs) onto printed circuit boards (PCBs).

Working Principle:

Component Feeding: The NPM-D3A utilizes various feeders that hold SMDs in a secure and organized manner. These feeders can accommodate a wide range of component sizes and types, enhancing flexibility in production.
Vision System: The machine is equipped with a sophisticated vision system that accurately identifies and locates components on the feeders. This ensures precise pick-up and placement onto the PCB.
Pick and Place Mechanism: The machine features a multi-nozzle pick-and-place head that moves along the X and Y axes. It picks components using suction and places them onto designated positions on the PCB with high accuracy.
Z-axis Adjustment: The Z-axis mechanism allows for precise height adjustments, ensuring that components are placed correctly on the PCB pads.
Real-Time Monitoring: The NPM-D3A continuously monitors the assembly process, allowing for immediate corrections to maintain quality and efficiency throughout production.

Model ID		NPM-D3A
PCB dimensions (mm) *1	Dual-lane mode	L 50 * W50 ~ L 510 * W 300
PCB dimensions (mm) *1	Single-lane mode	L 50 * W50 ~ L 510 * W 590
PCB exchange time	Dual-lane mode	0s* *No 0s when cycle time is 3.6 s or less
PCB exchange time	Single-lane mode	3.6s* *When selecting short conveyors
Electric source		3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA
Pneumatic source *2		0.5 MPa, 100 L /min (A.N.R.)
Dimensions (mm) *2		W 832 * D 2 652 3 H 1 444 *4
Mass		1 680 kg (Only for main body : This differs depending on the option configuration.)
Placement head		Lightweight 16-nozzle head V3 (Per head)
Placement head		High production mode [ON]	High production mode [OFF]
Max. speed		46 000 cph (0.078 s/ chip)	38 000 cph (0.095 s/ chip)
Placement accuracy (Cpk≧1)		±37 μm/chip	±30 μm / chip (±25 μm / chip *5)
Component dimensions (mm)		0402 chip 6 ~ L 6 W 6 * T 3	03015 67/0402 chip 6 ~ L 6 W 6 * T 3
Component supply	Taping	Tape : 4 / 8 / 12 / 16 mm
Component supply	Taping	Max. 68 (4, 8 mm tape, Small reel)

Usage Instructions:

Setup: Position the NPM-D3A in an appropriate location with necessary power and data connections. Ensure all feeders are installed and loaded with components.
Configure Settings: Use the user-friendly interface to input production parameters, including component types, placement speeds, and custom programs.
Load PCBs: Securely place the PCBs on the machine’s conveyor system, ensuring proper alignment for the pick-and-place operation.
Start Production: Activate the machine and monitor the process to ensure accurate component placement. The vision system will assist in maintaining precision.
Regular Maintenance: Conduct routine checks and maintenance to ensure optimal performance and longevity of the machine.

Application Areas:

The NPM-D3A is commonly used in:

Electronics Manufacturing: For assembling consumer electronics, automotive parts, and industrial devices.
Medical Device Production: In the assembly of reliable medical equipment requiring high precision.
Telecommunications: For manufacturing communication devices that demand accurate and efficient component placement.

The NPM-D3A pick-and-place machine is an essential tool for enhancing efficiency and quality in electronic assembly processes, making it invaluable in modern manufacturing environments.
