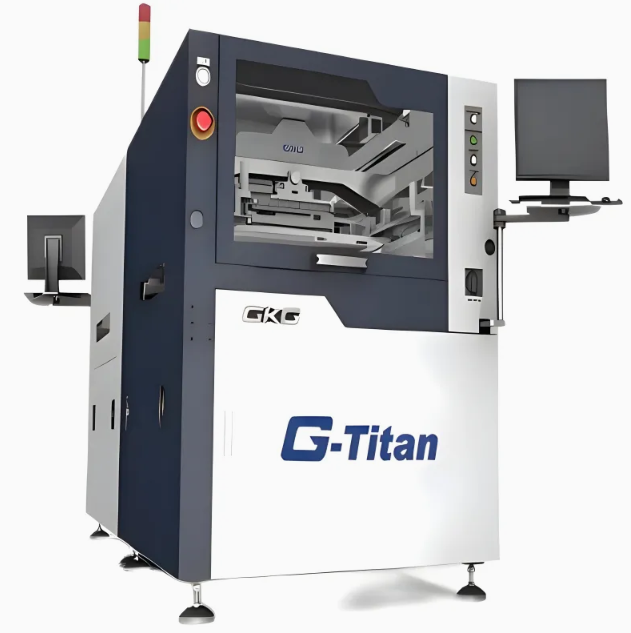

G-TITAN is equipped with premium quality functions empowering the JUKI Screen-Printing Solution on its path to Industry 4.0 and "Lights-Out-Manufacturing". Ease of use is provided due to a brand new GUI - Graphical User Interface - which is operated via touch screen. G-TITAN supports circuit boards of sizes up to 510 × 510 mm and therefore addresses its demands towards the mid-size segment. Innovative novelties such as the Opti Paste Control - OPC - as well as the Quality Print Control - QPC - represent useful individual functions to achieve optimised paste consumption, higher level of automisation and avoidance of printing errors during the screen-printing process.
Features:
1. GKG dedicated manual adjustment pre-lift platform: simple and reliable structure, low cost, convenient manual adjustment, can quickly realize the adjustment of the PIN pin jacking height of PCB boards with different thicknesses.
2. Image and optical path system: The uniform ring light and high-brightness coaxial light of the brand-new optical path system, together with the brightness function that can be adjusted steplessly, make all types of Mark points can be well recognized (including uneven ones) Mark point), suitable for tin-plated, copper-plated, gold-plated, HASL, FPC and other types of PCBs of different colors.

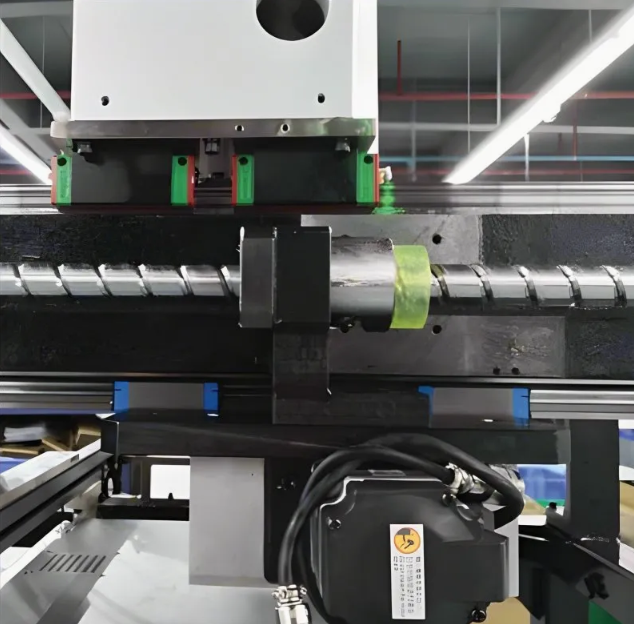

3. Scraper system: Slide rail type scraper system, which improves the running stability and long service life.
4. Cleaning system: The new type of wiping rubber strip ensures full contact with the stencil, increases the vacuum suction to ensure that the residual solder paste in the mesh is vigorously eliminated, and truly realizes the effective automatic cleaning function, three cleaning modes of dry and wet vacuum , the software can set the cleaning mode and cleaning paper length at will.
1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(20.00%),
Western Europe(12.00%),Eastern Asia(8.00%),Mid East(6.00%),Central America(5.00%),Africa(5.00%),Oceania(4.00%),Southern Europe(4.00%),Eastern Europe(4.00%),South America(3.00%),North America(2.00%),Southeast Asia(2.00%).
There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SMT Pick And Place Machine, PCB Loader Machine, Reflow Oven, AOI, PCB Conveyor
4. why should you buy from us not from other suppliers?
Our advantage lies in:
1. Top quality:
We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you
2. Lowest pirce:
In order to make a long-term cooperation,we will offer you the best product quality and after-sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
