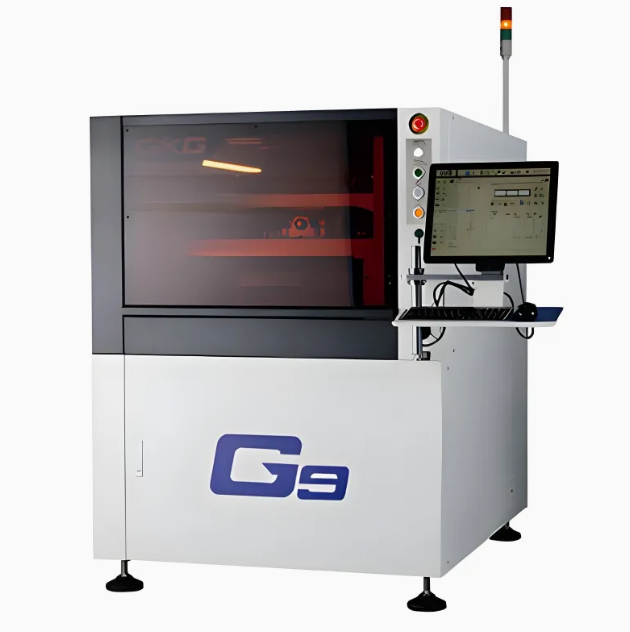

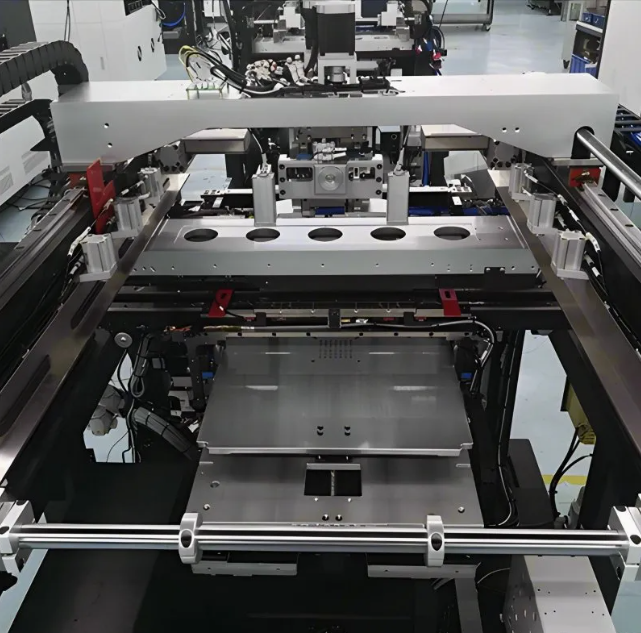

G9 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Standard function
1. CCD digital camera system
Brand-new optical path system--uniform ring light and high-brightness coaxial light, together with the brightness function that can be adjusted steplessly, makes all types of Mark points (including uneven Mark points) can be well identified and suitable for plating. Tin, copper-plated, gold-plated, tin-sprayed, FPC and other types of PCBs with different colors.
2. High-precision PCB thickness adjustment jacking platform
The structure is compact and reliable, the lifting is stable, and the PIN needle height is automatically adjusted by software, which can accurately adjust the position and height of PCB boards with different thicknesses.

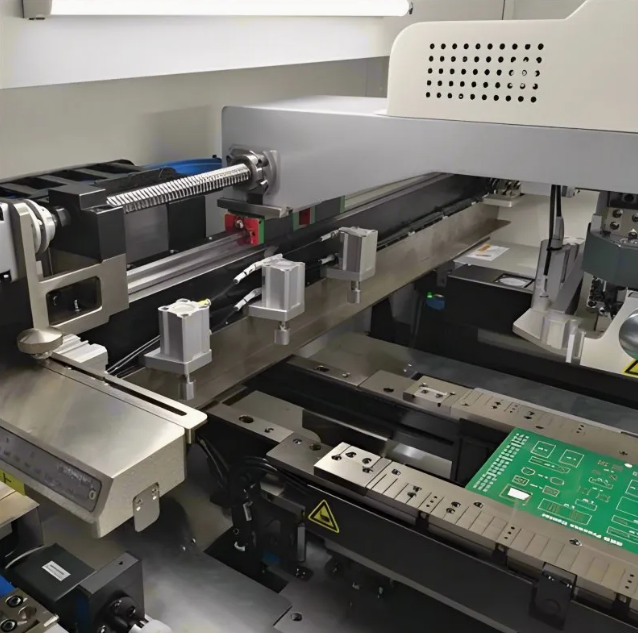

3. Guide rail positioning system
International utility model invention patent. Detachable, programmable flexible side clamp device, for soft board, warped PCB, a unique top flattening, through software programming, can be automatically stretched, does not affect the tin thickness.
4. Brand new scraper structure design
Through the new scraper structure of the slide rail and the cylinder, the operation stability is improved and the service life is prolonged.
5. High-speed stencil cleaning
The drip-type cleaning structure can effectively prevent the cleaning caused by local lack of solvent caused by the blocking of the solvent pipe.
6. New multi-function interface
Simple and clear, easy to operate. Real-time temperature remote control function.
Option function
1.Steel mesh inspection function
By compensating the light source above the stencil, and using CCD to check the mesh of the stencil in real time, so as to quickly detect and judge whether the stencil is blocked after cleaning, and perform automatic cleaning, which is a 2D inspection of the PCB board. Replenish.
2. Automatic dispensing system
According to different printing process requirements, after printing, the PCB board can be accurately dispensed, tinned, drawn, filled and other functions; at the same time, the dispensing head is also equipped with a heating function, which can be used at a lower ambient temperature. When heating, the glue is heated to improve the fluidity of the glue.
3. Bottle type automatic tinning and solder paste detection function
Automatically add solder paste at regular and fixed points to ensure the quality of the solder paste and the amount of solder paste in the stencil. So as to ensure the printing quality of customers and improve productivity.
Through the sensor, the amount of solder paste on the stencil is managed, and the quality is stable and long-term continuous printing is possible. Productivity is improved.
4. SPI connection
It is connected with SPI to form a closed-loop system. When the feedback information of poor SPI printing is received, the machine will automatically adjust according to the SPI feedback offset. The XY direction offset can be automatically adjusted in 3PCS, and the stencil can be cleaned to improve printing. Quality and production efficiency constitute a complete printing feedback system.
5. Leading the compatibility of Industry 4.0
6. Through the automatic upload or output of machine status and parameters, it can provide a strong guarantee for the customer's Industry 4.0 intelligent production. It can realize seamless connection with the customer's MES system, and realize the self-distribution of engineering personnel at all levels according to on-site management. permissions.
Features:
1. GKG dedicated manual adjustment pre-lift platform: simple and reliable structure, low cost, convenient manual adjustment, can quickly realize the adjustment of the PIN pin jacking height of PCB boards with different thicknesses.
2. Image and optical path system: The uniform ring light and high-brightness coaxial light of the brand-new optical path system, together with the brightness function that can be adjusted steplessly, make all types of Mark points can be well recognized (including uneven ones) Mark point), suitable for tin-plated, copper-plated, gold-plated, HASL, FPC and other types of PCBs of different colors.
3. Scraper system: Slide rail type scraper system, which improves the running stability and long service life.
4. Cleaning system: The new type of wiping rubber strip ensures full contact with the stencil, increases the vacuum suction to ensure that the residual solder paste in the mesh is vigorously eliminated, and truly realizes the effective automatic cleaning function, three cleaning modes of dry and wet vacuum , the software can set the cleaning mode and cleaning paper length at will.
