JT TEA Series Lead-Free Hot Air Reflow Oven Machine
Original JT TEA series 16 heating zones lead-free reflow oven, independent upper & bottom temperature control, ±1.5℃ uniform furnace temperature, drawer-type flux recovery system, single/dual rail optional, SMEMA standard interface, widely used for automotive, medical, consumer electronics PCB mass soldering.
Automotive electronics: ECU, BMS, new energy vehicle control PCB
Medical precision circuit boards
Consumer electronics: Laptop, mobile, smart home mainboard
Industrial control & power supply PCB
LED lighting, communication server boards
Item | JT-MFO Standard Spec |
|---|---|
Brand | JT Automation |
Model | MFO-800 / MFO-800-N (N=Nitrogen model) |
Heating Zones | Top 8 Zones + Bottom 8 Zones |
Cooling Zones | Top 3 Zones + Bottom 3 Zones |
Total Heated Length | 3110 mm |
Outer Dimension (L×W×H) | 5520 × 1430 × 1530 mm |
Net Weight | 2400 KG (Air type) / 2500 KG (N2 type) |
Power Supply | AC 380V 3Phase 5Wire 50/60Hz (Custom 220V 3P available) |
Power Consumption | Startup Max: 30~32KW; Stable Running: 9~10KW |
Warm-up Time | Around 25 minutes |
Temperature Range | Room Temperature ~ 300℃ |
Exhaust System | 2 exhaust outlets, 10 m³/min each |

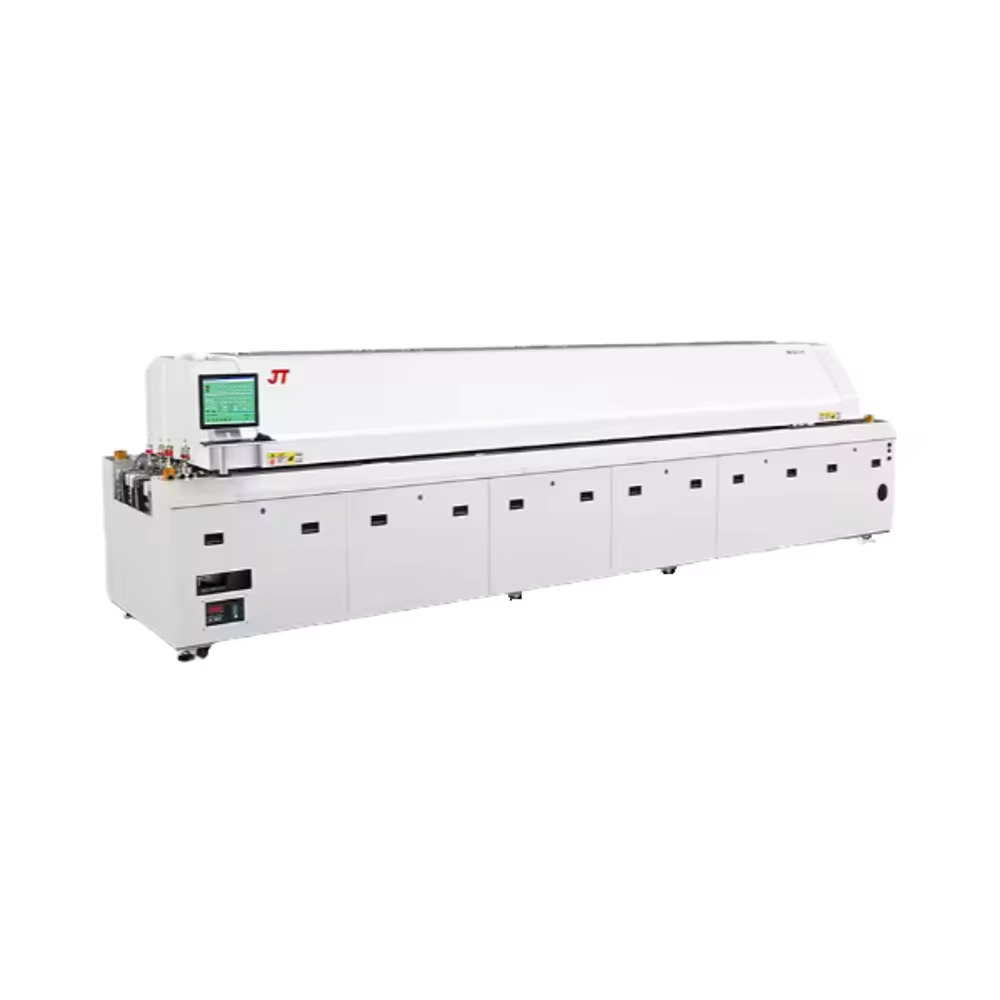

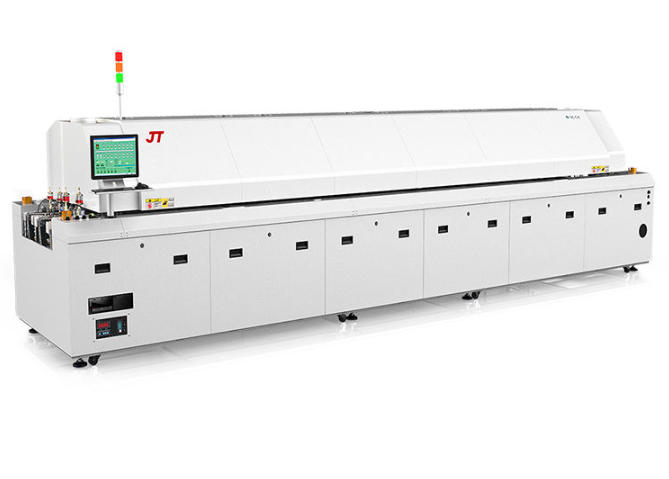

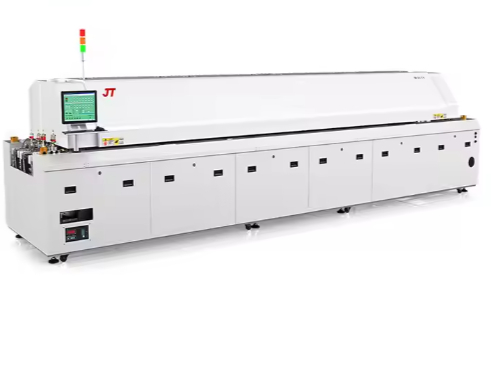

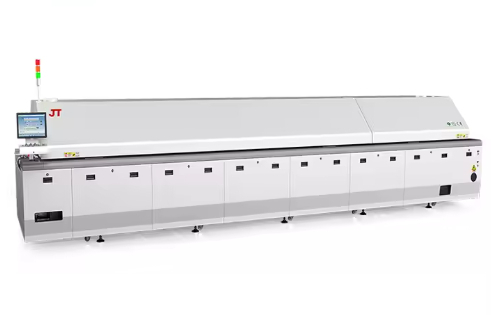

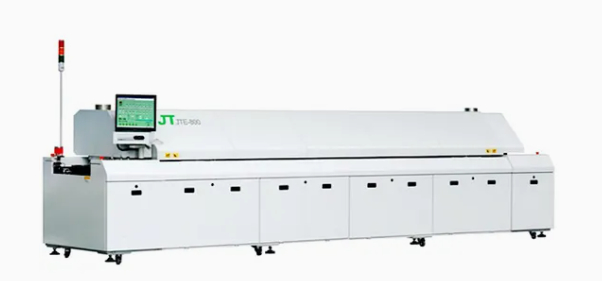

Main cover image: Full front view of JT TEA reflow oven
Scene image 1: Equipment running in complete SMT production line

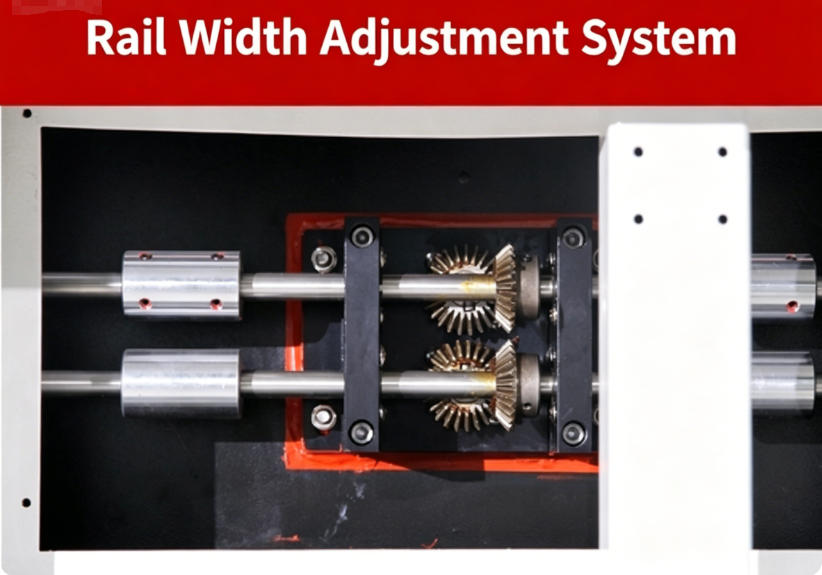

Detail image 1: Dual rail conveyor internal structure

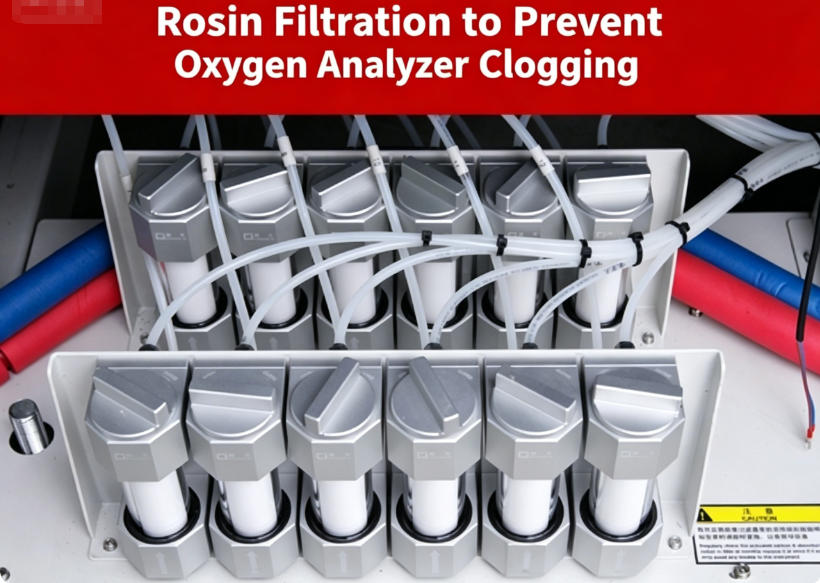

Detail image 2: Drawer-type flux recovery condenser

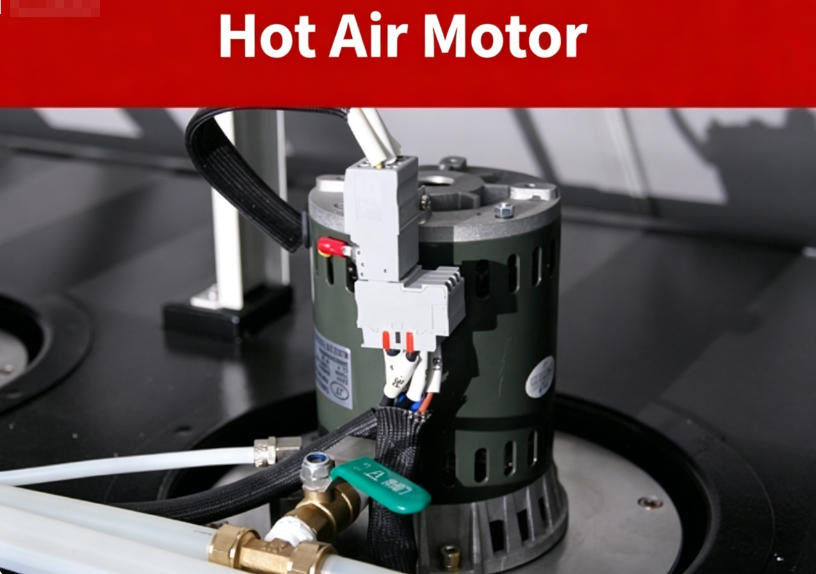

Detail image 3: Hot air circulation motor unit
Control interface screenshot: Windows touch operation screen
Workshop layout image: Multiple SMT machines matched with this reflow oven
