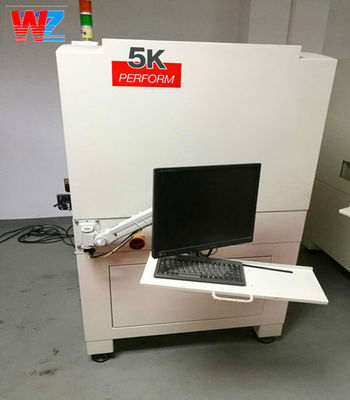

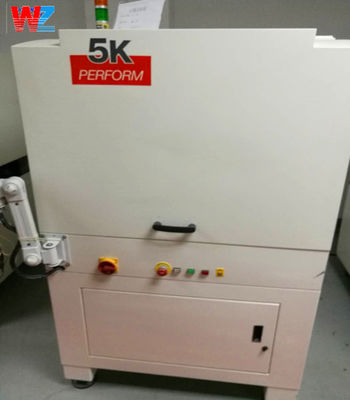

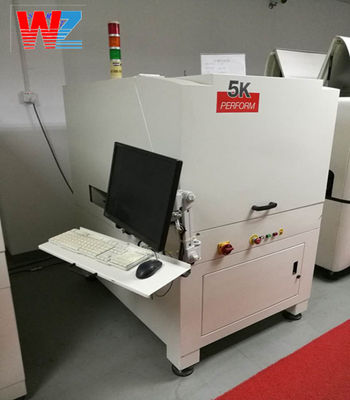

Automated Optical Inspection SMT 5K AOI Machine With SPI System

The 5K AOI (Automated Optical Inspection) machine is a highly advanced equipment used in the electronics manufacturing industry for inspecting printed circuit boards (PCBs) and ensuring their quality and reliability. It offers a wide range of functionality and features that enhance inspection accuracy, speed, and efficiency.

1. Optical Inspection: The 5K AOI machine utilizes advanced optical systems and high-resolution cameras to capture detailed images of the PCBs. It analyzes these images to detect various types of defects, including soldering defects, component placement errors, missing components, polarity issues, bridging, and more.
2. Defect Detection: The machine employs sophisticated algorithms and image processing techniques to detect defects on the PCBs. It compares the captured images with reference images or predefined standards to identify anomalies or deviations.
3. Component Verification: The 5K AOI machine verifies the correctness and accuracy of component placement on the PCB. It checks for component presence, proper alignment, rotation, and polarity. It can also verify the accuracy of component markings, such as barcodes, labels, or serial numbers.
4. Solder Joint Inspection: The machine inspects the quality of solder joints on the PCB. It examines factors such as solder fillet shape, wetting, voids, bridges, and insufficient or excess solder. It can identify solder defects that may affect the electrical and mechanical integrity of the PCB.
5. Advanced Imaging Capabilities: The 5K AOI machine utilizes advanced imaging technologies, such as multi-angle imaging, 3D inspection, and color imaging, to enhance defect detection capabilities. These techniques provide a comprehensive view of the PCB and enable precise defect identification.
6. Defect Classification and Reporting: The machine can classify defects based on severity or predefined criteria, allowing for prioritization of inspection results. It generates detailed inspection reports, including images, defect locations, and statistics, which aid in the analysis and resolution of detected issues.

1. The 5K AOI machine is suitable for a wide range of PCB inspection applications, including:
2. Surface Mount Technology (SMT) Assembly: It inspects PCBs after the placement of surface mount components. It ensures the correct placement, alignment, and soldering of components on the PCB, minimizing defects and ensuring quality.
3. Through-Hole Technology (THT) Assembly: The machine verifies the quality of through-hole soldering and component placement. It checks for proper solder fillets, component alignment, and solder flow, ensuring reliable connections.
4. Post-Reflow Inspection: It inspects PCBs after the reflow soldering process to detect defects such as insufficient or excess solder, tombstoning, bridging, or open circuits. It helps identify process issues and ensures the integrity of the solder joints.
5. Quality Control and Assurance: The 5K AOI machine is used for quality control purposes throughout the manufacturing process. It can be employed at various stages, such as incoming inspection, in-process inspection, and final inspection, to ensure the overall quality and reliability of the PCBs.
6. Rework and Repair: The machine can assist in the identification and localization of defects, aiding in the rework and repair process. It enables targeted repair actions, reducing rework time and improving repair accuracy.

The 5K AOI machine offers advanced functionality for accurate and efficient PCB inspection. It plays a critical role in ensuring the quality, reliability, and performance of electronic products in the manufacturing industry.
