| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.wooden case 2.As your order |
| Delivery Period: | 5-8 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 10 Piece/Pieces per Week |

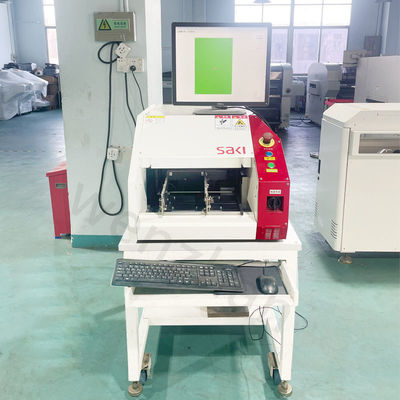

SMT Automated Optical Inspection BF-Comet18 SAKI AOI Machine Inspection Equipment
AOl has the functions of component inspection, PCB light board inspection, and post-solder component inspection. Check the front of the printed circuit board for missing components, wrong components, damaged components, improper component mounting directions, etc.; check the type, direction and position of the mounted IC and discrete components; check the IC components Print quality inspection of markings on devices, etc.
High-speed vibration-free line scan technology
Optical system includes a telecentric lens capturing images with no blind spots
Coaxial overhead lighting eliminates shadowing, improves capability and reduces production start-up time
Advanced Software Features
Line scan system detects FOD and extra components across the entire surface of the PCB
Unique Fujiyama algorithm verifies five critical aspects of through-hole solder joints
Conformal coating UV light inspection
Improved floorspace productivity
Benchtop Inspection System Product Line
Compact machine design
Machine width is the same for both single-lane and dual-lane
| Part Number | BF-Comet18 |
| Manufacturer | Saki Corporation |
| PCB Size | 50 x 50 mm to 250 x 330 mm |
| Resolution | 18 µm |
| Power Supply | Single-phase ~ 100-120/200-240V +/-10％, 50/60 Hz |
| Top Clearance | 60 mm |
| Bottom Clearance | 60 mm |
| Net Weight | 80 kg |
| Machine Dimension | 580 x 850 x 452 mm |
Related Product
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,
feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
FAQ
1. If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
2. MOQ ?
1 set machine, mixed order is also welcomed.
3. How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Video
Video
Video
Video
Video
Video
Video
Video
Video
|
|
