SMT line Machine AOI Machine BF-Comet10 AOI Inspection Equipment

Products

Samsung Pick and Place Machine

SMT line Machine AOI Machine BF-Comet10 AOI Inspection Equipment

MOQ:	1pcs
Price:	Negotiable
Standard Packaging:	1.wooden case 2.As your order
Delivery Period:	5-8 days
Payment Method:	T/T, Western Union, Paypal, Credit card
Supply Capacity:	10 Piece/Pieces per Week

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

Model Number

SAKI BF-Comet10 Aoi Machine

Product Name:

SAKI BF-Comet10 Offline AOI Machine

Model Number:

SAKI BF-Comet10

Quality:

Package:

Wooden Case

Condition:

Type:

SMT Aoi Machine

Brand:

Delivery:

Ups,dhl,fedex,as Your Order

Highlight:

BF Comet10 AOI Machine

SMT line AOI Machine

AOI Inspection Equipment

Product Description

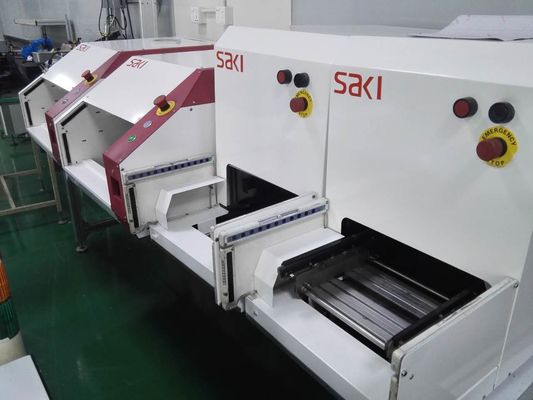

SMT Aoi Machine SAKI BF-Comet10 Offline AOI Machine

The Saki BF-Comet10 is an advanced Automated Optical Inspection (AOI) machine designed for the comprehensive inspection of printed circuit board (PCB) assemblies. This state-of-the-art system utilizes cutting-edge optical and image processing technologies to provide highly accurate and reliable inspection capabilities, ensuring the quality and reliability of electronic products.

Underlying Principles:

The Saki BF-Comet10 AOI machine operates on the principle of acquiring high-resolution, detailed images of the PCB surface and components, and then analyzing these images using sophisticated algorithms to detect and identify potential defects or anomalies. The system's key technological foundations include:

1. Optical Imaging: The machine is equipped with a robust and high-precision optical imaging system, featuring advanced cameras and lenses that capture detailed, high-resolution images of the PCB under inspection.

2. Illumination Control: The system employs a carefully designed illumination system, utilizing a combination of different light sources (e.g., LED, halogen) to ensure optimal contrast and visibility of the PCB features, enabling the detection of even the most subtle defects.

3. Image Processing Algorithms: The Saki BF-Comet10 utilizes advanced image processing algorithms and artificial intelligence (AI) techniques to analyze the captured images and identify a wide range of potential defects, including missing or misaligned components, solder bridging, insufficient solder, and other manufacturing irregularities.

4. Programmable Inspection Routines: The system's software allows users to create and customize inspection routines, tailoring the inspection parameters to the specific requirements of different PCB designs and production processes. This flexibility ensures optimal performance and accuracy for a diverse range of electronics manufacturing applications.

Usage Instructions:

1. Set up the AOI Machine: Carefully position the Saki BF-Comet10 AOI machine in the desired location, ensuring proper ventilation and access to power sources. Connect the machine to the necessary control and data systems.

2. Load the PCB: Carefully place the PCB assembly onto the machine's inspection stage, ensuring proper alignment and positioning.

3. Configure the Inspection Routine: Using the system's intuitive software interface, select or create the appropriate inspection routine for the PCB under test. This may involve adjusting parameters such as component recognition, solder joint inspection, and defect detection thresholds.

4. Initiate the Inspection: Start the inspection process by activating the machine's optical imaging system and image processing algorithms. The system will automatically capture and analyze the PCB's surface, identifying any potential defects or anomalies.

5. Review the Inspection Results: The Saki BF-Comet10 will display the inspection results, highlighting any detected defects or issues. Carefully review the results and take appropriate action, such as adjusting the production process or approving the PCB for further assembly.

6. Document the Inspection: The system's comprehensive reporting capabilities allow users to generate detailed inspection reports, including images and data, which can be used for quality assurance, process improvement, and regulatory compliance purposes.

7. Maintain the AOI Machine: Regularly clean and maintain the optical components, lighting systems, and other critical parts of the Saki BF-Comet10 AOI machine, following the manufacturer's recommended procedures. This ensures optimal performance and accuracy throughout the machine's lifespan.

The Saki BF-Comet10 AOI machine is a powerful tool that plays a crucial role in the electronics manufacturing industry, helping to ensure the quality and reliability of PCB assemblies through its advanced optical inspection and image processing capabilities.

Desktop Automatic optical inspection equipment Saki BF-comet10
Equipment Size:	580x850x452mm
Equipment Weight:	80kg
Equipment power supply:	AC200-240V,400VA
Can detect PCB size:	50x50~250x330mm
Image solution:	10um,18um image
Scanning time:	250x330mm
PCB:	Approx. 7 sec
Camera:	Color linear CCD
Detection station:	Suitable for testing after printing, pre-furnace and after
Furnace detection items:	Solder Paste
Detection:	There is no, offset, less tin, multi-tin, broken, contaminated
Parts detection:	missing parts, offset, skew, erection, side, flip, polarity inverse, wrong parts, breakage, IC surface Character differentiation
Solder spot detection:	tin, tin less, even tin, pin false welding, foot, plate pollution

Related Product

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,

feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!

The main brand is Fuji YAMAHA Samsung SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine

FAQ
1. If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
2. MOQ ?
1 set machine, mixed order is also welcomed.
3. How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
