DCEN DC-500

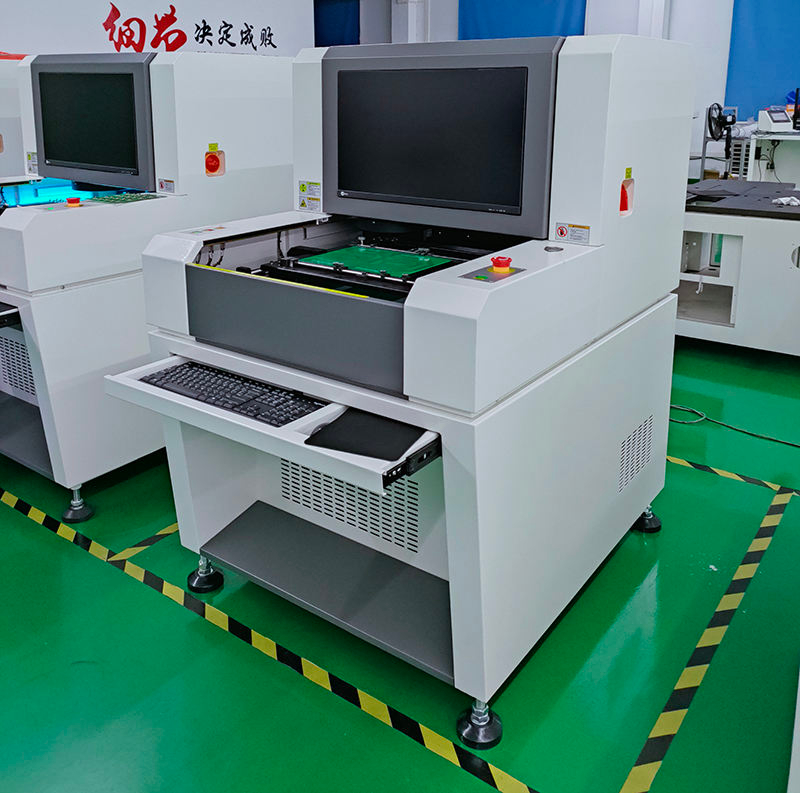

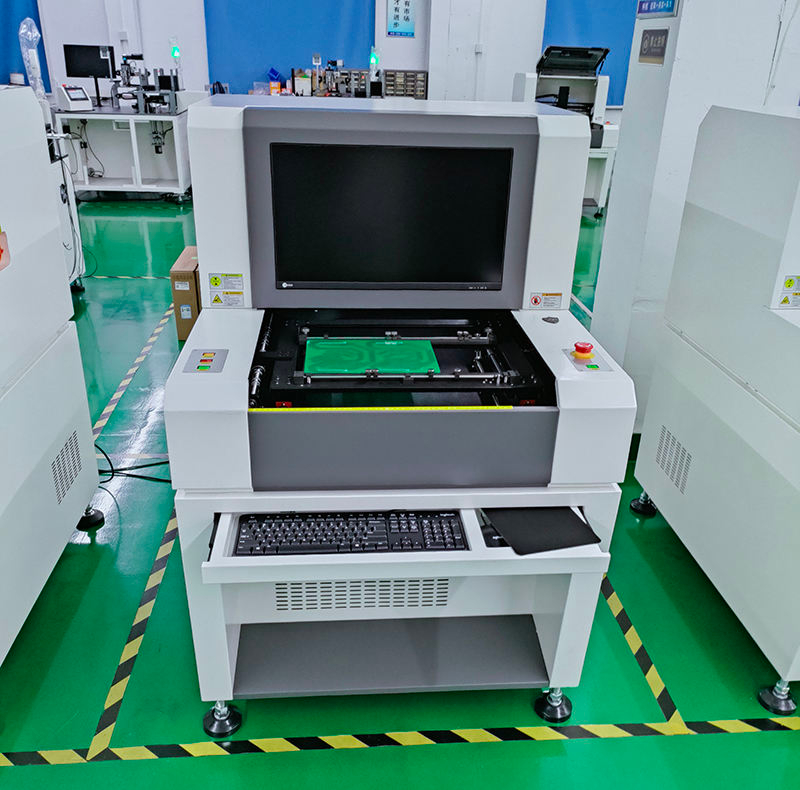

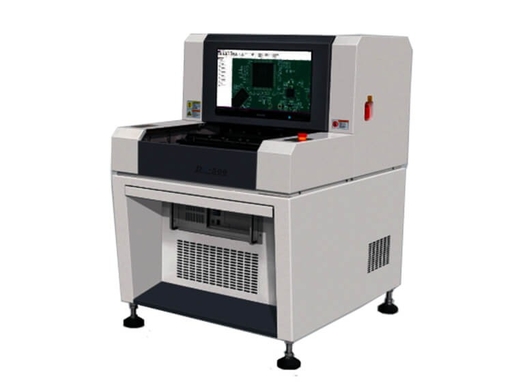

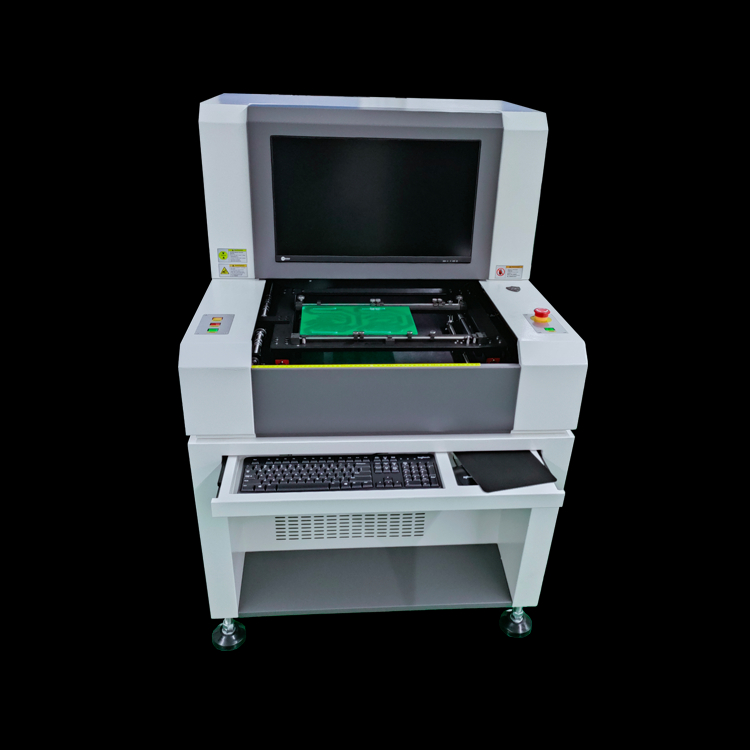

DCEN DC-500 Semi Automatic 2D Offline AOI Optical Inspection Machine, SMT PCB SMD Defect Inspection Equipment for Small & Medium Batch Production
Item | DCEN DC-500 Specification |
|---|---|
Brand | DCEN |
Model | DC-500 |
Machine Type | Semi-Automatic Offline 2D AOI |
Overall Dimension (L×W×H) | 900 × 1100 × 1350 mm |
Net Weight | Approx. 450 KG |
Power Supply | AC 220V, 1Phase 50/60Hz, 1.5KW |
Air Source | No air pressure required (fully electric drive) |
Certification | CE Certified |
Warranty | 12 Months Core Spare Parts Warranty |
DCEN DC-500 offline 2D AOI is cost-effective semi-automatic PCB visual inspection equipment, equipped with 5MP telecentric lens & multi-angle RGB ring light, supports min 0402 component detection, independent offline station without occupying main SMT line, perfect for small batch, prototype, after-reflow PCBA quality inspection.
Small & Medium Batch Consumer Electronics: Power bank, bluetooth module, smart watch PCB
Electronic Prototype & R&D Laboratory Sampling Inspection
LED Driver, Switch Power Supply Circuit Board
Household Appliance Control Board, Sensor PCB
Secondary Re-inspection after reflow for SMT Factory
