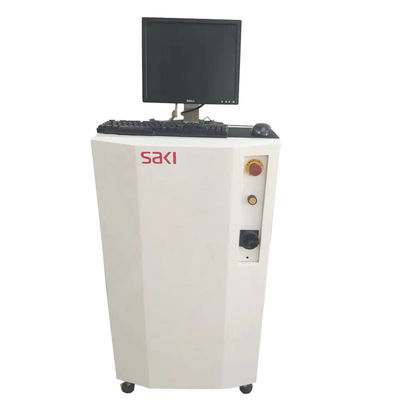

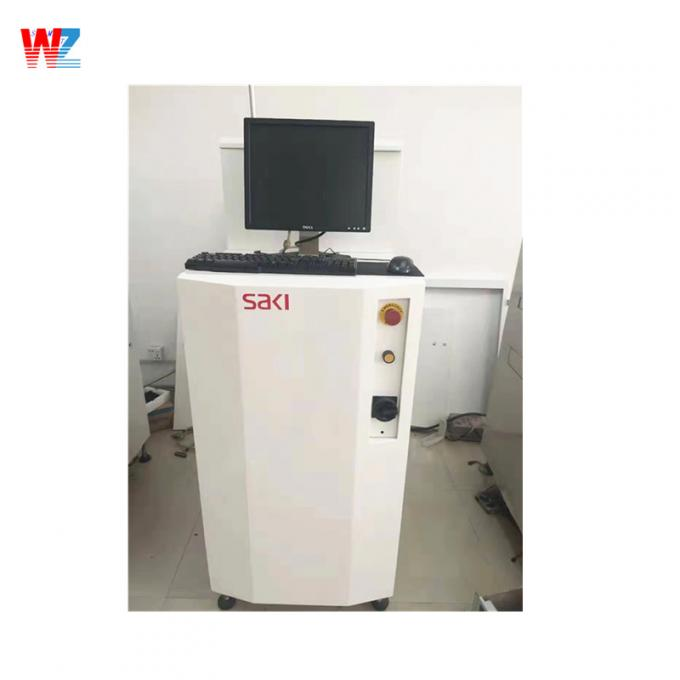

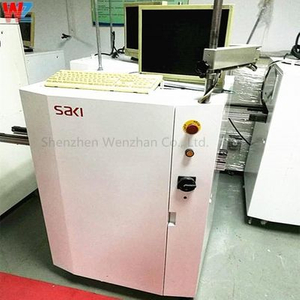

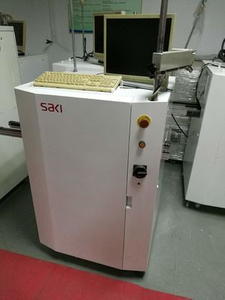

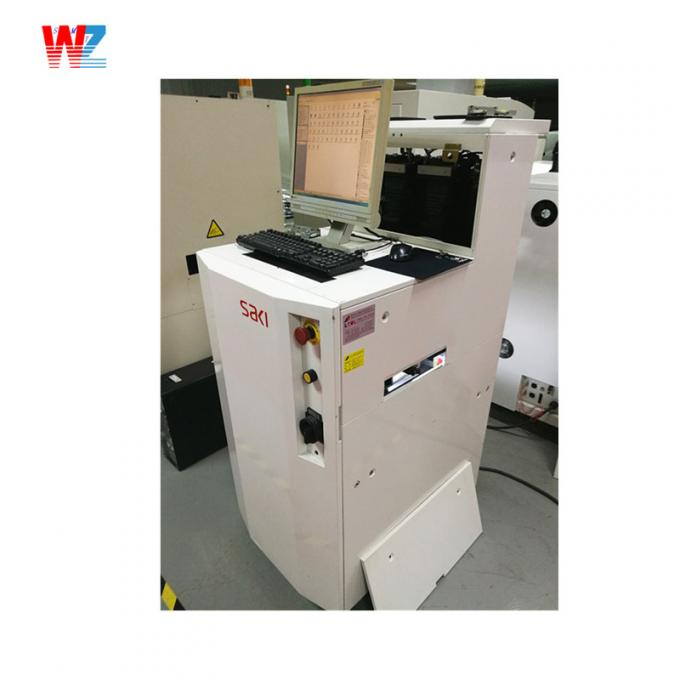

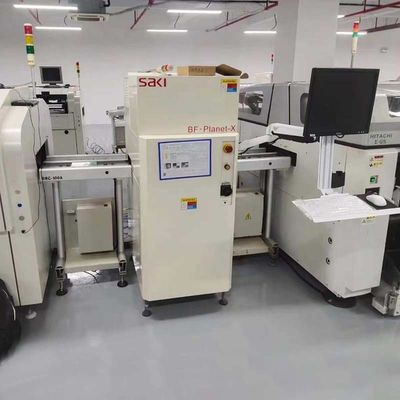

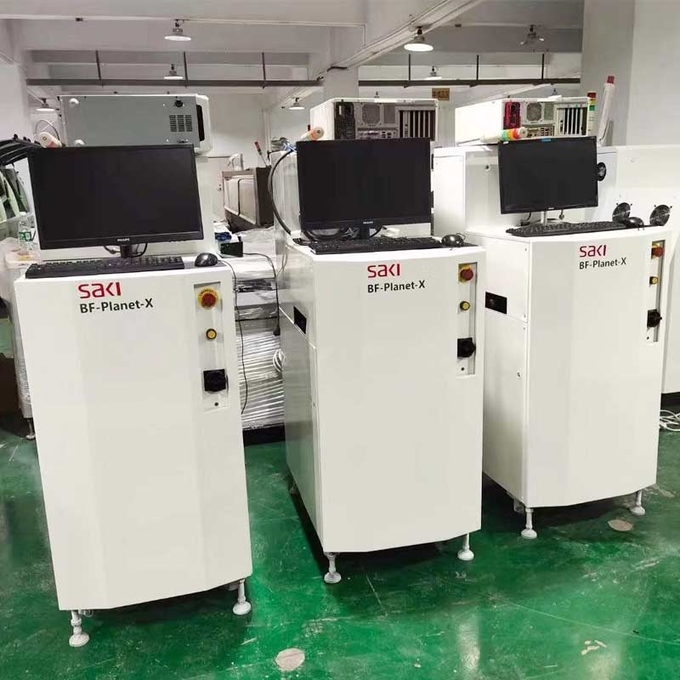

For M-size boards, this inline, high-speed, space-saving model, at only 60cm wide, has the smallest footprint in its class. It handles boards of 330x250mm and scans them in only 4 seconds.
By employing large-size telecentric lens optical system, BF-Planet-XII provides accurate and stable inspection results with 10um resolution. The machines correct brightness over the whole sample and compensate position aberration in real time while image is scanned, which will contribute to a stable imaging capability over time. In addition, a variety of algorithms and lighting types are available to deal with a wide range of inspection requirements in industry.
Multiple data handling capabilities are provided such as switching settings by barcode reading and data output to customers’ data server in order to cope with line requirements flexibly.
With a superior resolution of 10μm and scanning line color CCD camera, BF-Planet-XII provide accurate and stable inspection results. Solder fillets on components as small as the high density mounted 01005(0402) chip, as well as IC’s with 0.4mm pitch lead are easily inspected and analyzed.
BF-Planet-XII has Saki’s original alternate scanning sys- tem that captures several lighting images in one scan- ning. Newly developed color capturing system enable to make scanning speed twice faster than previous model. It takes only 9 seconds to capture M-size board [250mm * 330mm]. Overall tact time including inspection also be- come shortened dramatically.
Advantage of Line Scan Visual Inspection

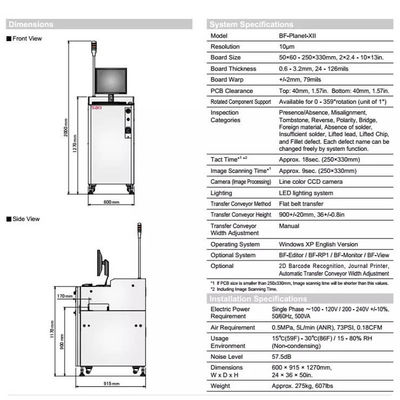

| Model | SAKI 2D AOI BF-Planet-XII |
| Resolution | 10μm |
| Board Size | 50*60 - 250*330mm, 2*2.4 - 10*13in. |
| Board Thickness | 0.6 - 3.2mm, 24 - 126mils |
| Board Warp | +/-2mm, 79mils |
| PCB Clearance | Top: 40mm, 1.57in. Bottom: 40mm, 1.57in |
| Rotated Component Support | Available for 0 - 359°rotation (unit of 1°) |
| Inspection Categories | Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function. |
| Tact Time*1 *2 | Approx. 18sec. (250*330mm) |
| Image Scanning Time*1 | Approx. 9sec. (250*330mm) |
| Camera (Image Processing) | Line color CCD camera |
| Lighting | LED lighting system |
| Transfer Conveyor Method | Flat belt transfer |
| Transfer Conveyor Height | 900+/-20mm, 36+/-0.8in |
| Transfer Conveyor Width Adjustment | Manual |
| Operating System | Windows XP English Version |
| Optional System | BF-Editor / BF-RP1 / BF-Monitor / BF-View |
| Optional | 2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment |
| Electric Power Requirement | Single Phase ～100 - 120V / 200 - 240V +/-10%, 50/60Hz, 500VA |
| Air Requirement | 0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM |
| Usage Environment | 15°C(59F) - 30°C(86F) / 15 - 80% RH (Non-condensing) |
| Noise Level | 57.5dB |
| Dimensions W x D x H | 600 * 915 * 1270mm, 24 * 36 * 50in |
| Weight | Approx. 275kg, 607lbs |
| *1 If PCB size is smaller than 250x330mm, Image scannig time will be shorter than this values. *2 Including Image Scanning Time. | |
