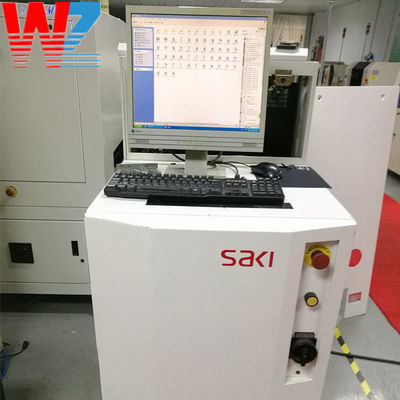

AOI Machine Automated Optical Inspection AOI SMT SMD PCB Machine SAKI BF-Planet-X

Product Details

Highlight:

Automated Optical Inspection AOI Machine

,

,

Producet Name: SMT SAKI BF-Planet-X AOI Machine

Model Number: BF-Planet-X

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel

Warranty: 3 Months

Place Of Originl: Japan

Dimension: 970mm * 1370mm * 1450mm

Precision: High Precision

Weight (KG): 450

Condition: Used, New

After Warranty Service:: Online Support

Product Description

Detailed Specifications And Features

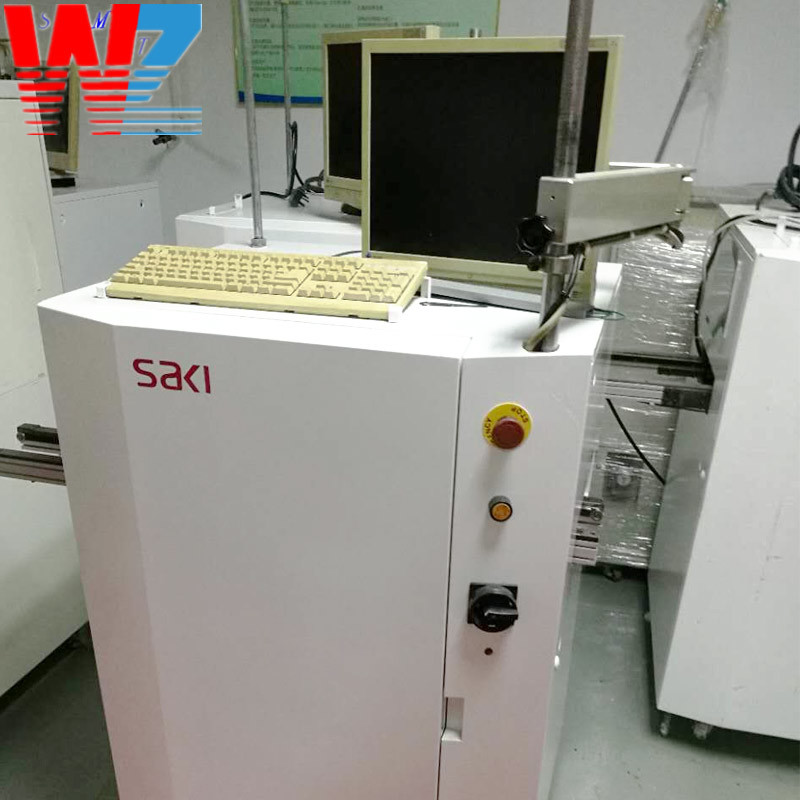

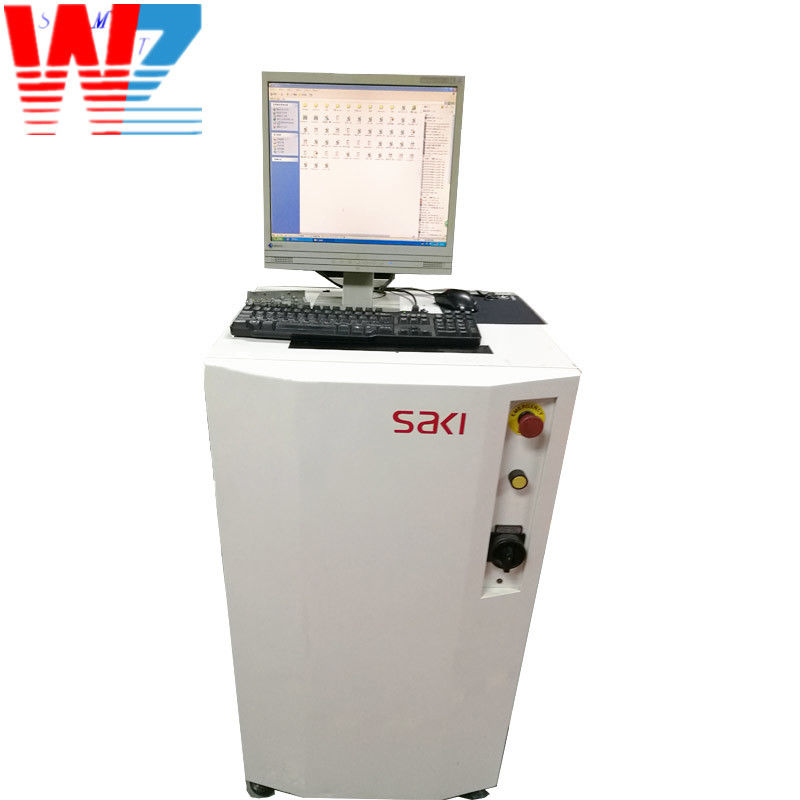

SMT SMD PCB Machine SAKI BF-Planet-X AOI machine

Saki intelligent test equipment adopts the line scanning technology developed by itself;
The evolved camera system and fully coaxial epi-illumination are used at the time to achieve high-speed and high-precision detection;
A unique thread scanning method for high-speed detection is realized;
Realize the panoramic memory method of substrate panoramic camera;
The unique large-diameter telecentric lens (TelecentricLense) supports clear camera without strabismus;
Digital painting device;
Non-directional safety coaxial epi-illumination ensures the accuracy of welding inspection;
Fixed track flyingmirror device;
Database of detection results including NG images, 2D barcode recognition function, OCR function.
The unique software of Saikai Intelligence, using the latest technology, constantly improves while changing the internal structure, realizes the operability of the complete storage structure that permanently protects the whole substrate camera, and corresponds to the multi-core high-speed increase, adding New functions and calculation methods are loaded with the latest devices. The test speed meets the detection requirements of more than 1.5 high-speed patch lines, and the detection capability of really small 01005.

Producet name	SMT SAKI BF-Planet-X AOI machine
Model Number	BF-Planet-X
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel
Warranty	3 Months
Place of Originl	Japan
Dimension	970mm * 1370mm * 1450mm
Weight (KG)	450
Condition	Used, new
After Warranty Service:	Online support
Precision	High precision
