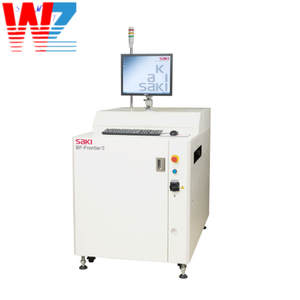

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine
Brand Name
SAKI
Product Model
SAKI BF-Frontier II
Country Of Origin
Japan
MOQ
1pcs
Unit Price
Negotiable
Payment Method
T/T,Western Union,Paypal,Credit card
Supply Capacity
10 Piece/Pieces per Week
Product Details
Product Name: Automated Optical Inspection AOI SMT PCB Inline Machine SAKI AOI Sola
Model Number: Aoi
Brand: ODM
Condition: Used, New
Quality: Top
Core Components: Motor
Warranty: 1 Year
Type: PCB Inline Machine SAKI AOI Sola
Product Description
Detailed Specifications And Features

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine

Hardware that provides both high-speed, and high reliability

  • High-speed vibration-free line scan technology
  • Optical system includes a telecentric lens capturing images with no blind spots
  • Coaxial overhead lighting eliminates shadowing, improves capability and reduces production start-up time

Advanced Software Features

  • Line scan system detects FOD and extra components across the entire surface of the PCB
  • Unique Fujiyama algorithm verifies five critical aspects of through-hole solder joints
  • Conformal coating UV light inspection

Improved floorspace productivity

  • Benchtop Inspection System Product Line
  • Compact machine design
  • Machine width is the same for both single-lane and dual-lane
Dimensions
(W) x (D) x (H) [Main body]mm (in.)		 850 x 1340 x 1230
(33.5 x 52.8 x 48.4)
Weight Approx. 450 Kg (992.1 lbs)
Electric Power Requirement Single-phase ~ 100-120/200-240V +/-10％, 50/60Hz
Resolution 18μm
Air Requirement 0.5MPa, 5L/min (ANR)
Target PCB Size
mm (in.)		 50 W x 60 L - 460 W x 500 L
(2 W x 2.4 L - 18 W x 20 L)
PCB Clearance Top: 40mm (1.57 in.)
Bottom: 40mm (1.57 in.)

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine 0

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine 1

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine 2

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine 3

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine 4

Automated Optical Inspection PCB BF-Frontier II Saki AOI Machine 5
