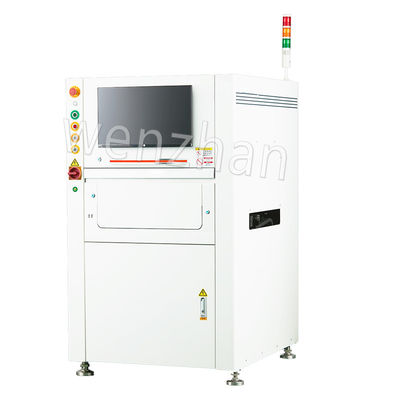

Automated Optical Inspection Systems SMT AOI Machine 3D AOI For SMT production line

A domestically produced 3D Automated Optical Inspection (AOI) system is a sophisticated machine used in the electronics manufacturing industry to inspect printed circuit boards (PCBs) for defects and ensure quality control. This technology employs advanced imaging techniques to provide detailed three-dimensional representations of PCB assemblies, allowing for thorough inspection of components and solder joints.

1. 3D Imaging Technology: The 3D AOI system utilizes multiple high-resolution cameras and sophisticated optics to capture detailed images of the PCB from various angles. This enables the machine to generate accurate 3D models, which are essential for detecting defects that may not be visible with traditional 2D inspection methods.
2. Comprehensive Defect Detection: The system is designed to identify a wide range of defects, including missing components, misalignment, insufficient solder, solder bridging, and other anomalies. The advanced algorithms analyze the 3D images to ensure that every aspect of the PCB meets quality standards.
3. High-Speed Inspection: Domestic 3D AOI systems are engineered for high-speed operation, capable of inspecting thousands of components per hour. This efficiency is crucial for meeting the demands of modern production lines, where rapid turnaround times are essential.
4. Automated Reporting: The 3D AOI system generates detailed inspection reports that document any detected defects, along with images and measurement data. This information is invaluable for quality assurance and process improvement, allowing manufacturers to address issues promptly.
5. User-Friendly Interface: Most 3D AOI systems feature intuitive software interfaces that facilitate easy setup and operation. Users can quickly create inspection programs, adjust parameters, and monitor inspection results in real time.
6. Integration with Production Lines: Many domestic 3D AOI machines can be integrated with other manufacturing equipment, such as pick-and-place machines and reflow ovens. This integration enhances overall production efficiency and allows for seamless data exchange across the manufacturing process.

1. Initial Setup: Before operation, ensure that the 3D AOI machine is properly installed and calibrated. Connect it to the necessary power supply and data systems, and perform any required software updates.
2. Load the PCB: Place the PCB assembly onto the machine's inspection stage, ensuring it is securely positioned and properly aligned. Use fixtures if necessary to prevent movement during inspection.
3. Configure the Inspection Program: Using the machine’s software interface, select or create an inspection program tailored to the specific PCB design. This may involve defining component types, inspection parameters, and acceptable defect thresholds.
4. Initiate the Inspection Process: Start the inspection by activating the system. The 3D AOI machine will capture images of the PCB from multiple angles, generating a detailed 3D representation for analysis.
5. Monitor the Inspection: Observe the inspection process in real time. The machine will automatically analyze the images and compare them against predefined standards to identify any defects.
6. Review Inspection Results: Once the inspection is complete, review the generated report, which will highlight any detected defects along with relevant images and measurements. Pay attention to any critical issues that require immediate attention.
7. Take Corrective Actions: Based on the inspection results, take necessary corrective actions, such as reworking or replacing defective components. Document these actions for quality control and future reference.
8. Maintain the AOI System: Regularly clean and maintain the 3D AOI machine, following the manufacturer’s guidelines. This includes checking optical components, calibrating the system, and updating software as needed to ensure optimal performance.
9. Integration with Quality Control Processes: Incorporate the findings from the AOI inspection into your overall quality control processes. Use the data to inform production adjustments, training needs, and process improvements.
