SMT HANWHA Samsung CP40 CP45 CP45FV CP45NEO Pick And Place Machine

Product Details

Place of Origin: South Korea

Brand Name: SAMSUNG/ HANWHA

Certification: CE

Model Number: Samsung CP40 CP45 CP45FV CP45NEO

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.wooden case and vacuum package 2.As your order

Delivery Time: 5~7 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 20 sets per week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                CP45FV Samsung chip mounter, Samsung CP40 Pick And Place Machine, HANWHA Samsung Pick And Place Machine


Product Name:	Used SMT Pick And Place Machine	Model:	CP40 CP45 CP45FV CP45NEO
Placement Heads:	3/6 Heads	Condition:	Used And New
Warranty:	3 Months	After Warranty Service:	Video Technical Support, Online Support, Spare Part
Usuage:	PCB Placement	Shipment:	On-time Shipment

Product Name:	Used SMT Pick And Place Machine
Model:	CP40 CP45 CP45FV CP45NEO
Placement Heads:	3/6 Heads
Condition:	Used And New
Warranty:	3 Months
After Warranty Service:	Video Technical Support, Online Support, Spare Part
Usuage:	PCB Placement
Shipment:	On-time Shipment

SMT HANWHA Samsung CP40 CP45 CP45FV CP45NEO Pick And Place Machine

Used SMT Samsung CP40 CP45 CP45FV CP45NEO pick and place machine

The CP45NEO pick and place machine is an advanced automated equipment used in the electronics manufacturing industry for the high-speed and precise placement of electronic components onto printed circuit boards (PCBs). It offers a range of functionality and features that enhance efficiency, accuracy, and productivity in the assembly process.

Product desription:

1. Samsung pick and place machine

2. CP series

3. Mounting speed: around 8000-13000CPH

4. Feeders: 100 pcs 8mm feeders

5. Applicable components: SOP, IC, BGA, 0402 0603 0805 1206...

6. Nozzle type: N, TN and CN series, like TN/CN030 040 065...

7. Machine system: Windows

8. Power supply: 220/110V

Functionality:

1. Component Placement: The CP45NEO pick and place machine is designed to accurately place a wide range of electronic components onto PCBs. It uses robotic arms, vacuum nozzles, and vision systems to pick components from feeders or trays and precisely position them onto designated locations on the PCB. This feature ensures accurate component alignment and placement, minimizing the risk of assembly errors.

2. High-Speed Placement: The machine is capable of high-speed component placement, maximizing production throughput and efficiency. It can achieve rapid pick-and-place operations, allowing for fast assembly of PCBs and meeting high-volume production requirements.

3. Component Compatibility: The CP45NEO pick and place machine supports a broad range of electronic components, including surface mount devices (SMDs), such as resistors, capacitors, integrated circuits (ICs), and various package types. It can handle components of different sizes, shapes, and orientations, accommodating diverse assembly requirements.

4. Vision System Integration: The machine often incorporates vision systems for component alignment and inspection. The vision system uses cameras and image processing algorithms to precisely align components with solder pads on the PCB. It also allows for real-time inspection of component placement accuracy, ensuring quality control during the assembly process.

5. Feeder Flexibility: The CP45NEO pick and place machine is compatible with a variety of component feeders. It supports different feeder types, such as tape feeders, tray feeders, or stick feeders, allowing for efficient handling of various component packaging formats. This flexibility enables smooth and uninterrupted production runs.

6. Programmable Control: The machine is equipped with programmable control systems. It allows operators to define and adjust placement parameters, such as pick-and-place positions, component orientation, and speed profiles. This flexibility enables customization to match specific PCB layouts and component requirements, optimizing placement accuracy and productivity.

Usage Range:

The CP45NEO pick and place machine is used in various applications within the electronics manufacturing industry, including:

1. PCB Assembly: It serves as a key component in automated PCB assembly lines. The machine facilitates the precise placement of electronic components onto PCBs, ensuring efficient and accurate assembly processes.

2. High-Volume Production: The CP45NEO pick and place machine is well-suited for high-volume production runs. Its high-speed placement capability and efficient handling of diverse components make it ideal for meeting large-scale manufacturing demands.

3. Surface Mount Technology (SMT) Assembly: The machine is commonly used in surface mount technology assembly processes. It efficiently handles SMD components and supports the assembly of complex PCBs with densely populated components, such as those found in consumer electronics, automotive, telecommunications, and other electronic devices.

4. Prototype Development: The CP45NEO pick and place machine is valuable during the prototype development stage. It allows for the rapid assembly and placement of components onto PCBs, facilitating quick turnarounds for testing, validation, and design verification purposes.

5. Component Replacement and Upgrades: The machine can be used for component replacement or upgrades on already assembled PCBs. It enables the efficient removal and placement of components, allowing for upgrades or modifications without the need for complete board rework.

The CP45NEO pick and place machine plays a vital role in the automated assembly of electronic components onto PCBs. It offers high-speed, accurate, and flexible placement capabilities, contributing to efficient production processes and ensuring high-quality electronic assemblies.

Main Features:
1. Control Syetem: Ball screw and Panasonic servo motors
2. Vision system: one down-looking camera. Six CCD cameras and one HD camera.
3. Three or six placement heads can pick up and calibrate components at one time.
4. Up to 108 feeder slots, Samsung CP standard feeders are available.
5. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
6. Video tutorials make you operate machine easily

Production specification

Model	CP40	CP45FV	CP45NEO
Manufacturing year	About 2000	About 2004	About 2006
Placement heads	3	6	6
Mounting speed	8000CPH	12000CPH	13000CPH
Spare parts	Sanyo motor	Sanyo motor	Panasonic motor
Feeder slots	108	108	108
Camera	vision camera+flying camera+mark camera
Power supply	220V
Machine weight	1600KG
Package dimension	1650x1540x1420CM

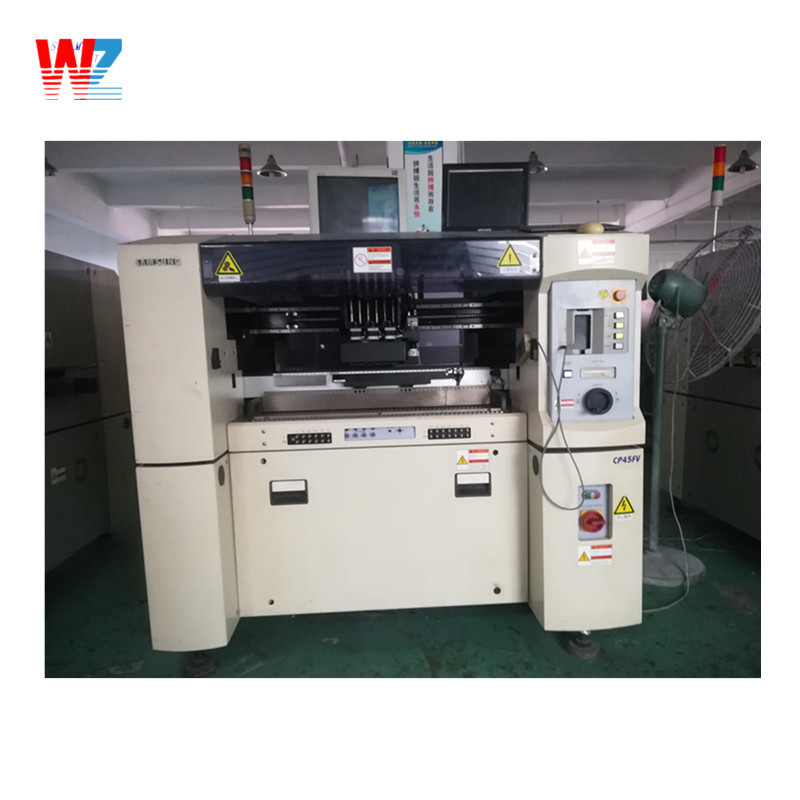

Product show

Related Product

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,

feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!

The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
