Mitsubishi HF-KP13 AC Servo Motor SMT Machine Part
About This Mitsubishi HF-KP13 AC Servo Motor
HF-KP13 is an AC servo motor from Mitsubishi, and this listing covers it as a spare for SMT placement machines and for automation equipment of the same class. A servo motor of this type drives one axis of the machine under closed loop control, and holding that axis in position from cycle to cycle is what the placement accuracy finally rests on.
The motor is supplied as a single unit, in the condition and packing recorded further down. Where the motor is going on to a machine that is in service, the model printed on the unit being taken off is what settles it. HF-KP13 is the model this listing is written around.
Key Specifications & Motor Parameters
- Name: Original SMT Mitsubishi Motor HF-KP13 Motor
- Model: Mitsubishi HF-KP13
- Part Number: HF-KP13
- Type: SERVO MOTOR
- Brand: Mitsubishi
- Output Power: 50HZ
- Frequency: 50
- Phase: Single-phase
- AC Voltage: 115/120 V
- Efficiency: IE 1
- Protect Feature: Totally Enclosed
- Quality: 100% Tested
- Condition: Original
- Package: Carton Box With Foam Protect
- Delivery: Ups,dhl,fedex,as Required
- Port: Shenzhen/hongkong
- Specification: Mitsubishi HF-KP13 motor
- Stock: large
- Payment: T/T before shipment
- Shipment: on-time shipment
Servo Motion Control & SMT Machine Axis Compatibility
A servo motor is not a plain motor with a plug on it. It carries a feedback device, so the drive can compare where the axis was told to be with where it actually is and correct the difference continuously. On a placement machine that loop is what takes the head, the conveyor or the feeder drive to the right place and holds it there through the cycle.
That is also why a replacement calls for the model number rather than a broadly similar motor. Two units can look alike on a bench and still differ in their feedback, in their shaft end and in their connector pinning, and a mismatch turns up as an axis that will not hold position.

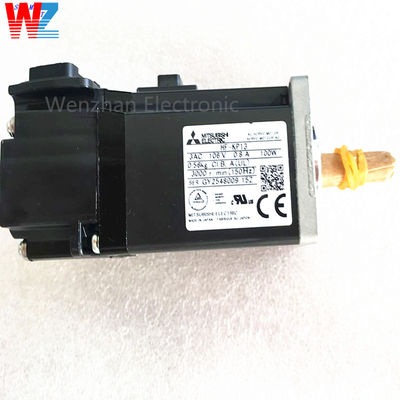

Fit is confirmed from the model on the nameplate, together with the flange, the shaft end and the connector. Where the nameplate is obscured, a photograph of the motor with the machine model is enough to identify it.
Motor Testing, Enclosure Standards & Protective Packaging

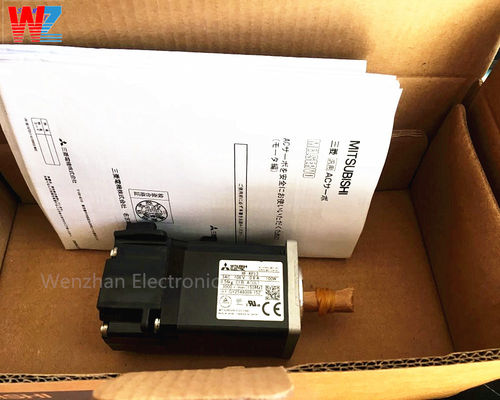

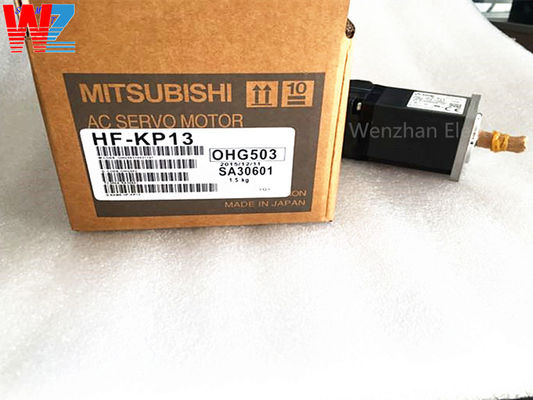

Quality is recorded as 100% Tested, the type as a servo motor with a totally enclosed protect feature, and the efficiency class as IE 1. The motor travels in a carton, foam packed, so that the shaft end and the connector arrive undamaged. The port recorded for the part is Shenzhen or Hongkong.
Rated power, rated torque, encoder specification, rated speed and the flange dimensions are not recorded on this number, so they are not stated in this description. Read them off the motor being replaced, or send a photograph of its nameplate, and they are confirmed for your machine before an order is placed.

Frequently Asked Questions On The HF-KP13 Servo Motor
Q1: What machine does this motor suit?
A: It is listed for SMT placement machines and automation equipment of the same class. Confirm it against the model on your machine's motor.
Q2: What does a servo motor do on a placement machine?
A: It drives an axis under closed loop control, which is what holds the axis in the right position from cycle to cycle.
Q3: Can a standard motor be used in its place?
A: No. The feedback, the shaft end and the connector have to match, and the model number is what confirms that.
Q4: What is recorded for power and torque?
A: Neither is stated on this number. Read the values off the motor being replaced, or send the nameplate photograph.
Q5: What condition is the motor?
A: The condition on this number is recorded as Original. Ask if the condition needs to be confirmed before ordering.
Q6: How is the motor packed and sent?
A: The motor ships in a carton with foam round it.
Order Inquiry & SMT Motor Sourcing Support
- Company: WEN ZHAN Technology
- Tel / WhatsApp: +86 18823383970
- E-mail: wenzhanhucai@163.com
Have the machine model and the number on the nameplate to hand, add the quantity, and a quotation is prepared for those details.
