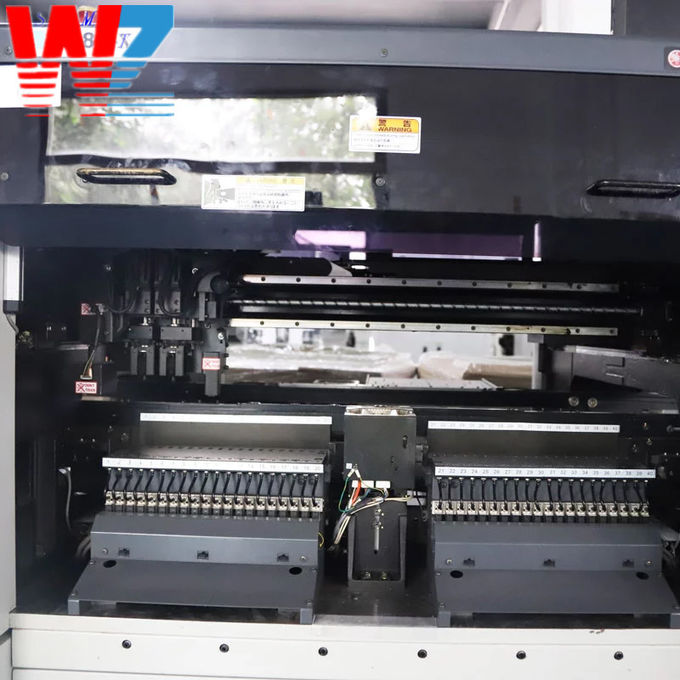

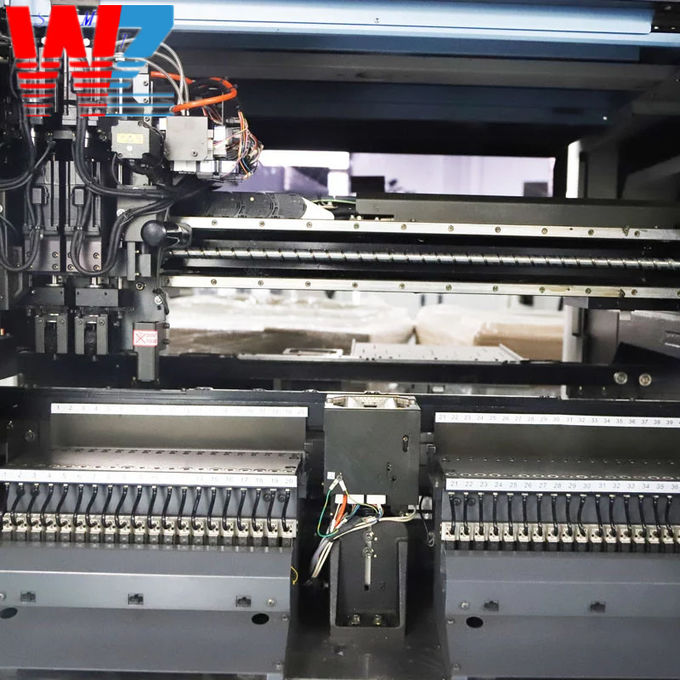

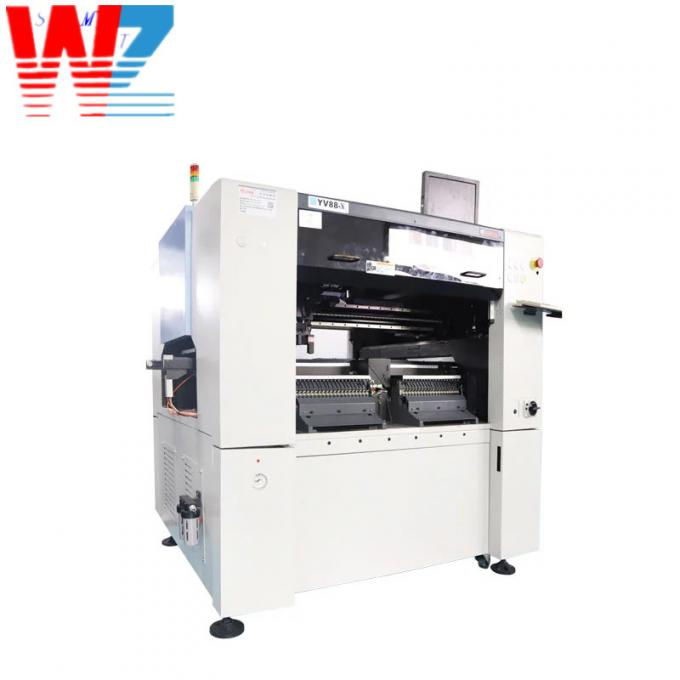

SMT Full Automatic High Speed Yamaha Chip Mounter YV88X YV88XG pick and place machine

The YV88X pick and place machine is a highly advanced equipment used in the electronics manufacturing industry for precise and efficient placement of electronic components onto printed circuit boards (PCBs). It offers a wide range of functionality and features that enhance productivity, accuracy, and flexibility in the assembly process.

1. Component Placement: The YV88X pick and place machine is designed to accurately pick electronic components from the component feeders and place them onto the designated locations on the PCBs. It utilizes advanced vision systems, robotic arms, and placement heads to achieve precise and reliable component placement.
2. High-Speed Operation: The machine is capable of high-speed operation, ensuring fast placement of components onto the PCBs. It features a high-speed head that can handle a large number of components per hour, resulting in improved production efficiency and reduced cycle times.
3. Component Compatibility: The YV88X pick and place machine supports a wide range of electronic components, including surface mount devices (SMDs), through-hole components, and odd-shaped components. It can handle various package types, such as resistors, capacitors, integrated circuits (ICs), connectors, and more.
4. Multi-Function Heads: The machine is equipped with multi-function heads that can handle different types of components. These heads have interchangeable nozzles to accommodate various component sizes and shapes. They can also perform additional functions, such as testing, dispensing, and inspection, providing added versatility.
5. Vision Systems: The machine features advanced vision systems that enable precise component alignment, verification, and correction. The vision systems can detect and correct for any variations in component orientation, ensuring accurate placement even for components with irregular shapes or variations in presentation.
6. Intelligent Feeders: The YV88X pick and place machine utilizes intelligent feeders that provide efficient component supply. These feeders can hold multiple component reels or trays and automatically feed the components to the pick and place heads. They are equipped with sensors to monitor component availability and prevent errors caused by empty feeders.

1. Setup: Ensure that the YV88X pick and place machine is properly installed and connected to the power supply. Set up the component feeders and align them with the machine's feeder slots. Verify that the vision systems are properly calibrated.
2. Programming: Create or import the assembly program for the specific PCB layout and component placement. Use the machine's software interface to define component positions, pick-up points, and placement coordinates. Adjust programming parameters such as component height, vision system settings, and placement accuracy as needed.
3. Feeder Loading: Load the component reels or trays onto the intelligent feeders. Ensure that the components are properly loaded and aligned within the feeders. Configure the machine's control system to recognize and manage the loaded feeders.
4. PCB Loading: Prepare the PCBs for placement by ensuring they are clean, properly aligned, and secured on the machine's worktable or conveyor. Ensure that fiducial marks on the PCB are visible for the vision system's alignment.
5. Machine Calibration: Perform necessary calibration procedures to ensure precise component placement. This may include calibrating the vision system, verifying the accuracy of the pick and place heads, and adjusting any mechanical or alignment settings.
6. Start Operation: Start the YV88X pick and place machine and initiate the assembly program. Monitor the machine's operation to ensure that components are picked accurately from the feeders and placed precisely onto the PCBs. Monitor the vision system's alignment and correction processes to ensure proper component orientation.
7. Maintenance: Regularly inspect the machine for signs of wear, damage, or malfunction. Keep the machine clean and free from debris that may affect its performance. Follow the manufacturer's maintenance guidelines for any required lubrication, cleaning, or component replacement.

The YV88X pick and place machine provides advanced functionality for precise and efficient component placement onto PCBs. By following the proper usage instructions, it enables efficient and accurate assembly, contributing to improved productivity and quality in the electronics manufacturing process.
