| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.carton box with foam protect 2.as your order |
| Delivery Period: | 3-5 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 2000 Piece/Pieces per Week |

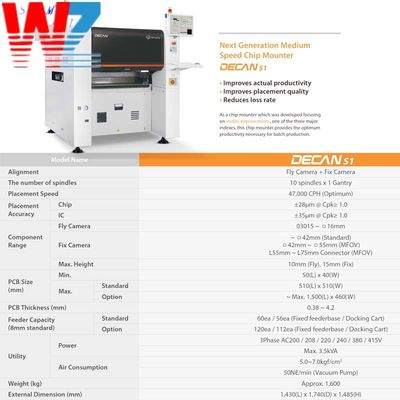

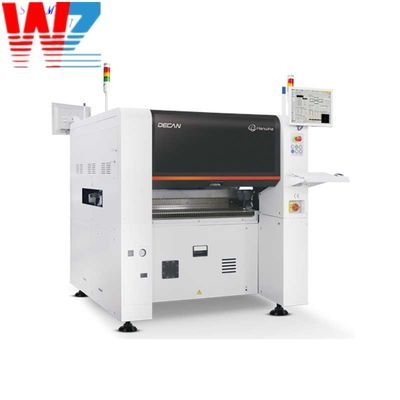

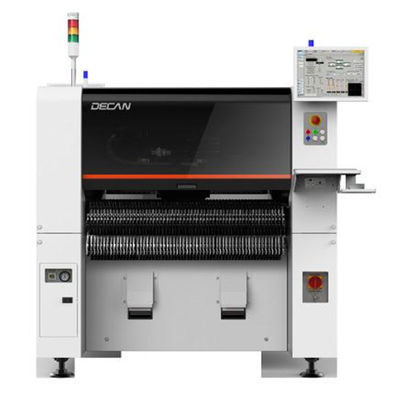

SAMSUNG Hanwha DECAN S1 SMT Pick And Place Machine
SAMSUNG DECAN S1 Fast & Flexible Mounter
Speed : 47,000 CPH (Optimum)
Spindle/Gantry : 10 Spindles/1Gantry
Parts: 03015~□55mm(H15),L75mm
Accuracy : ±28μm @ Cpk≥ 1.0/Chip
±30μm @ Cpk≥ 1.0/IC
Max.PCB : L510xW510 (Standard)
L1,500xW460 (Max)
Highest performance among chip Mounters of the same class
Places microchips stably
Increased convenience of operation
Hanwha Pick and place machine DECAN S2, Samsung Pick and place machine DECAN S2, Hanwha chip mounter
DECAN S2, Hanwha (Samsung chip mounter) chip mounter DECAN S2 has better area capacity than competitors'
similar equipment, * optimized High-speed placement of small components; The DECAN S2 high-speed chip
placement machine is equipped with 10 shafts per head and is suitable for dual cantilever, magnetically levitated
high-performance placement machines, which can achieve the highest speed in the world's same-class products.
92,000CPH. Welcome to "Hanwha decan s2, original Samsung high speed placement machine, Hanwha magnetic
suspension pick and place machine"
The SM482PLUS can perform high-speed placement of chips at 40,000CPH and QFPs at one per 1.1 seconds, respectively (each at optimum speed) by applying the on-the-fly recognition technology patented by Techwin, which enables component placement at the highest speed among all medium speed component placers. With one-gantry structure having a high-speed piano head with 10 nozzles,the machine can be operated with minimum manpower using one side of the machine. Being able to produce long boards with lengths of up to 1,500mm, the machine boasts of its applicability to the largest PCBs among SM series component placers.
| Product name | SAMSUNG Hanwha DECAN S1 pick and place machine |
| Brand Name | samsung hanwha |
| Model | DECAN S1 |
| Type | smt pick and place machine |
| Core Components | Hanwha DECAN S1 |
| Model Number | DECAN S1 |
| PCB Size | L510xW460mm |
| Place of Originl | South Korea |
| Application | for smt line |
| High Speed | 92,000 CPH(HS10 head) |
| Model Name | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
|
Applicable PCB |
Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
other machine
We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .
wenzhan Techonologies Co.,Ltd
In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.
In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.
Why Choose Us?
It is precisely because wenzhan technology has the following advantages over the same industry that
more and more customers choose wenzhan as their preferred supplier.
1. Professional pre-sales advice support
2. Excellent after-sales technical service
3. Flexible payment and return policy
4. One stop solution for SMT accessories
5. Stock in the factory with sufficient stock and fast delivery
