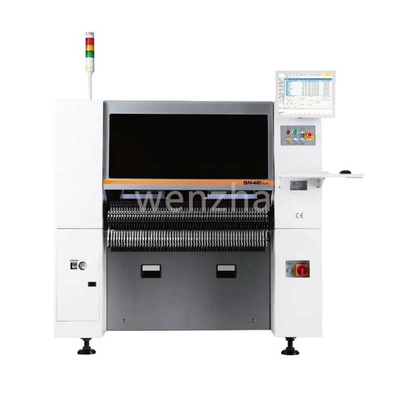

As Hanwha SMT Pick and Place Machine that applies two gantries equipped with 10 spindles per head as well as new flying vision, the Hanwha SMT Pick and Place Machine realizes a chip mounting speed of 40,000 CPH, the highest in the world among chip shooters of the same class. In addition, it is applicable to 0402 chips to the largest 16mm ICs by default and increases actual productivity and placement quality by applying an electrically driven high speed and high precision feeder. Moreover, it is designed for mixed use with the SM pneumatically driven feeder to maximize the customers’ operational convenience.
40,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable Parts : 0402 ~ 14mm(H 12mm)
Applicable PCB : Max. 460(L) x400(W)(Standard)
Max.510(L) x 460(W)(Option)
Electrically Driven High Speed and High Precision Feeder
Allows mixed use with an SM pneumatically driven feeder
SMART Feeder
| Model Name | SM471plus | SM481plus | SM482plus |
|---|---|---|---|
| Spindles | 10 Spindles *2 Gantry | 10 Spindles *1 Gantry | 6 Spindles *1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650*1690*1458 | 1650*1680*1530 | 1650*1680*1458 |
The SM482PLUS can perform high-speed placement of chips at 40,000CPH and QFPs at one per 1.1 seconds, respectively (each at optimum speed) by applying the on-the-fly recognition technology patented by Techwin, which enables component placement at the highest speed among all medium speed component placers.
With one-gantry structure having a high-speed piano head with 10 nozzles, the machine can be operated with minimum manpower using one side of the machine.
Being able to produce long boards with lengths of up to 1,500mm, the machine boasts of its applicability to the largest PCBs among SM series component placers.
