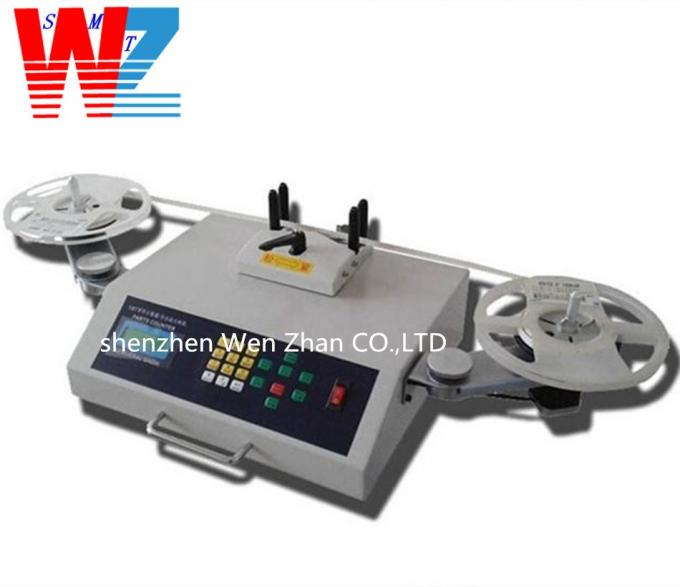

YS Series Tape and Reel SMD Counter Machine AC220V 110V
About This YS Series Tape And Reel SMD Counter Machine
Parts that arrive wound on carrier tape are counted on this bench unit by reading the tape's own guide holes. One hole passing the sensor stands for one position along the tape, so the figure on the display comes from the indexing the carrier already carries, not from a guess at what is sitting in the pockets.
It is a YS Series machine, sized for the reels that turn up at goods in and beside the line. Counting a reel takes a few minutes at the bench and leaves the store with a number that can go straight onto the label, which is what incoming inspection and a stock check are run on.

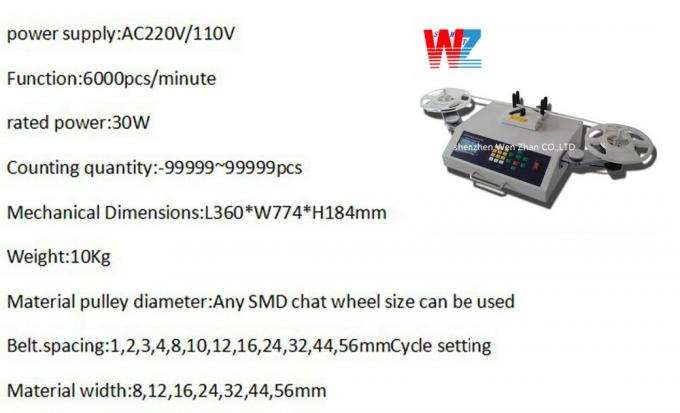

Key Specifications & Reel Counting Parameters
- Product Name: SMD Component Counting Machine
- Model Number: YS Series
- Type: YS Series Counter
- Condition: NEW
- Power Supply: AC220V/110V
- Brand: ODM
- Weight: 10KG
- Delivery: Ups,dhl,fedex,as Your Order
- Warranty Period: 1 Year
- Port: Shenzhen
Fields recorded in the description:
| Field | Value |
| --- | --- |
| Name | SMD counter, SMT/SMD chip counting machine, tape and reel SMT/SMD component counter |
| Model | YS series |
| Count range | -99999 ~ 99999pcs |
| Reel Width | 8,12,16,24,32,44,56mm |
| Payment | T/T before shipment |
| Shipment | on-time shipment |
| Delivery | fedex,ups,dhl,as required |
| Package | carton box with foam protect |
Photoelectric Detection, Bidirectional Counting & Preset Modes
The sensor reads the guide holes as the tape is drawn past it. Counting runs in either direction, so a reel can be taken forward or back without being lifted off the machine. Running a reel the other way is what brings an over-issued figure back down, and that is the usual case when a line returns a part-used reel to the store.
Where a fixed number of parts is being issued, the target is keyed in before the run starts and the machine stops on its own the moment that figure is reached. With no target keyed in, the count carries on until it is halted by hand, which is how a reel of unknown quantity is checked over.
The blank detection switch sits in one of two states. One state stops the machine when the sensor meets a run of empty pockets; the other lets the count pass straight through them. A part-used reel is normally run with the stopping state selected, so a short length shows up during counting rather than after the figure has been written onto a label.

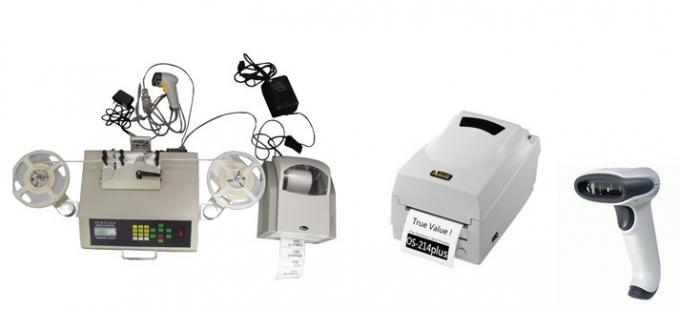

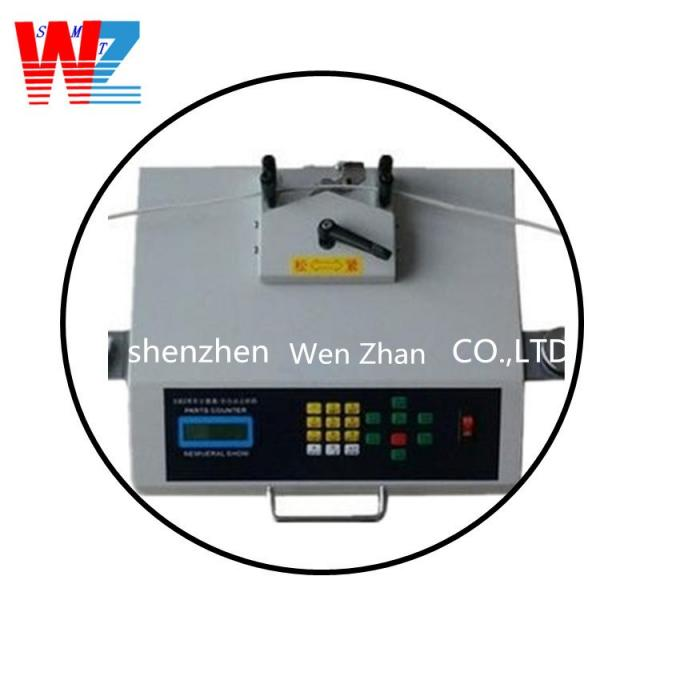

A scanner and a barcode printer can be joined to the machine, and the label can take the quantity, the part number, the batch and the time. The control panel is lettered in Chinese and in English.
Reel Width Compatibility, Voltage Support & Packaging
Seven reel widths are listed: 8, 12, 16, 24, 32, 44 and 56mm. That spread takes the narrow carrier used on small chip reels as well as the wider tape that larger parts come on. The counting range is given as -99999 to 99999 pcs, and the negative side of it is where a back-run count lands.
Supply is taken as AC220V or AC110V, and the machine weighs 10KG. It leaves the works in a carton with foam around it, ships out of Shenzhen, and the carrier is chosen from UPS, DHL or FedEx to suit the order.
How fast the machine counts, and the largest reel it will take, are not stated on this number, so neither figure is given here. Tell us the tape width and the reel size you handle, and both are checked against the machine before anything is ordered.
Tie-in product:
Can be equipped with scanning gun and bar code printer for easy management. Printable quantity, specification, batch number, time, work number.
Our Company
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Frequently Asked Questions On The YS Series SMD Counter
Q1: Where does the quantity on the display come from?
A: From the guide holes in the carrier tape, one hole to one position.
Q2: A reel has had too many parts taken off it. Can the figure be brought back?
A: Yes. Counting works in both directions, so the reel is run back to the lower figure.
Q3: What does the machine do about empty pockets?
A: The blank detection switch is set either to halt at them or to count on past them.
Q4: Which tape widths does it take?
A: Seven: 8, 12, 16, 24, 32, 44 and 56mm.
Q5: Can the count end up on a label?
A: A scanner and a barcode printer can be joined on, and the label can carry quantity, part number, batch and time.
Q6: What supply and what weight?
A: AC220V or AC110V, and 10KG.
Inquiry & SMT Reel Counter Procurement Support
- Company: WEN ZHAN Technology
- Tel / WhatsApp: +86 18823383970
- E-mail: wenzhanhucai@163.com
Tell us the tape width and reel size you handle and the supply at your site, and the machine is quoted for that set of details.
