| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.Wooden case and vacuum package 2.As your requirements |
| Delivery Period: | 3-5 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 5000 |
Name: Samsung SM481
Brand: SAMSUNG
Model: SAMSUNG SM481
Specification: SMT PICK AND PLACE MACHINE
Condition: original
Quality: top qualiy
Stock: large
Payment: T/T before shipment
Shipment: on-time shipment
Warranty: 1 year
Delivery: fedex,ups,dhl,as required

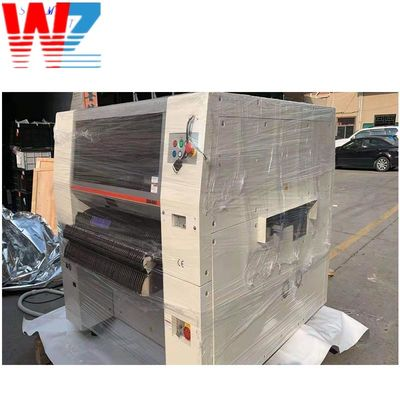

Package: wooden case
PCB size :460 (L) * 400 (W)
Chip theoretical speed :39,000CPH
Overall dimensions : 1650 X 1680 X 1530MM
weight : 1655KG

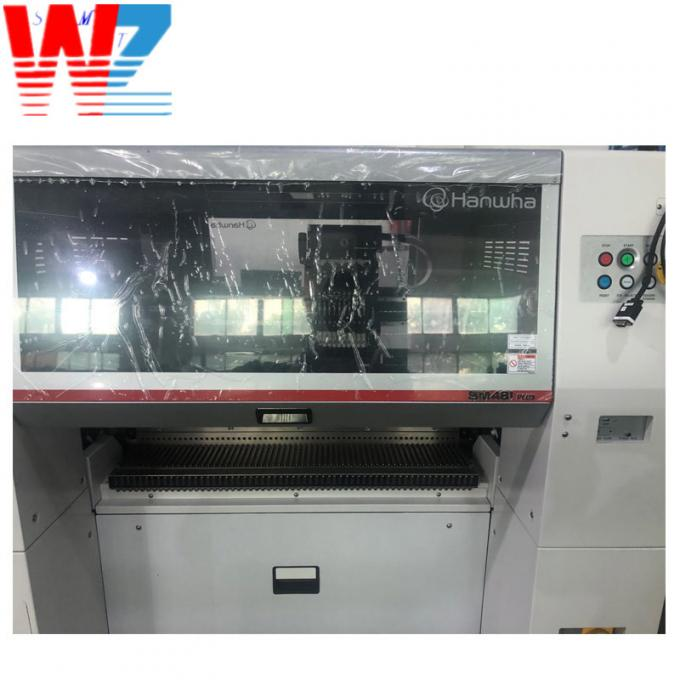

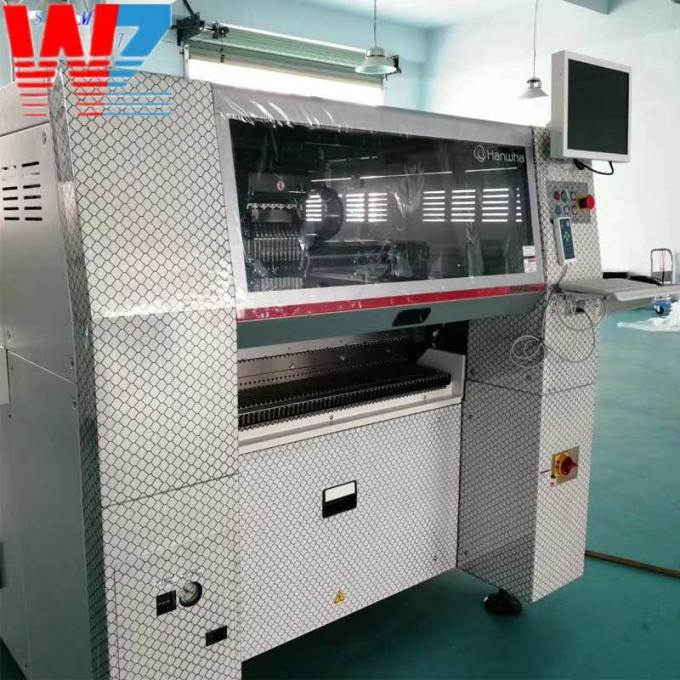

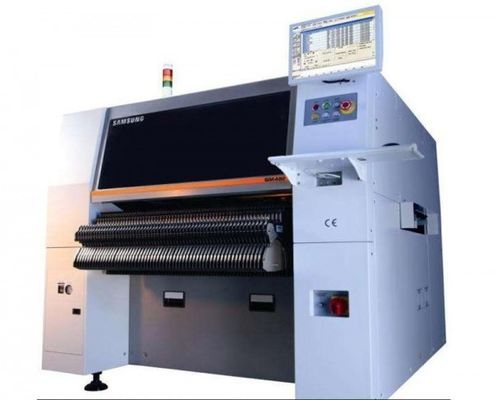

Samsung SM481 Pick and Place Machine

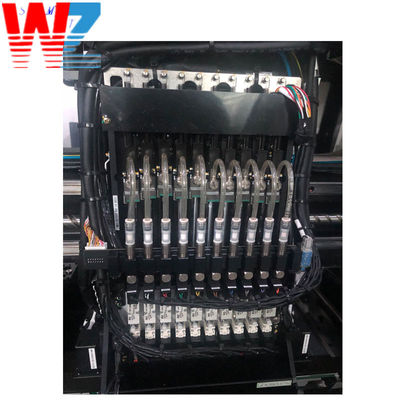

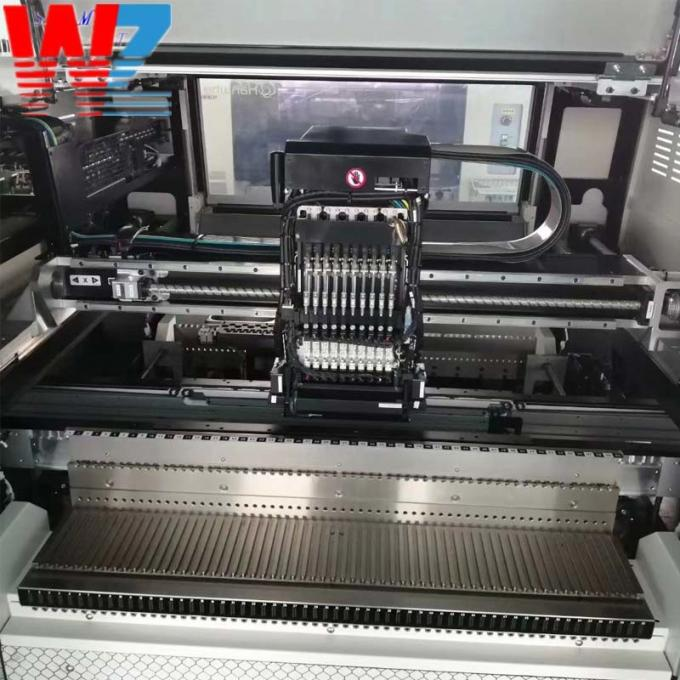

As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 38,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and □42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
SM481 parameters
Focus on the way flight vision + fixed vision (optional)
Number of axes 10 axes * 1 gantry
Mounting Speed 0603 39000 (Best Conditions)
Mounting accuracy chip ± 50um @ 3ó / chip
QFP ± 30um @ 3ó / chip
Component Range Flight Vision 0402- □ 16mmIC BGA CSP Ball Spacing 0.4
Standard Fixed Vision (FOV35) - □ 16mmIC (pitch 0.3mm)
- □ 32mm IC BGA CSP Ball Spacing 0.5
Standard Fixed Vision (FOV45) - □ 32mmIC (Pitch 0.4mm)
Focus on the way flight vision + fixed vision (optional)
Number of axes 10 axes * 1 gantry
Mounting Speed 0603 39000 (Best Conditions)
Mounting accuracy chip ± 50um @ 3ó / chip QFP ± 30um @ 3ó / chip
Component Range Flight Vision 0402- □ 16mmIC BGA CSP Ball Spacing 0.4
Standard Fixed Vision (FOV35) - □ 16mmIC (pitch 0.3mm)
- □ 32mm IC BGA CSP Ball Spacing 0.5
Standard Fixed Vision (FOV45) - □ 32mmIC (Pitch 0.4mm)
- □ 42mm BGA CSP ball pitch 1.0
Maximum height 10mm (option: 15mm)
PCB Size cm Min 5 x 4 Max 46 X 40 51 x 46 Options 61 X 51 Opti
| Model Name | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
|
Applicable PCB |
Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
