Pcb Assembly Line Smt Yamaha YV100X Pick And Place Machine

Product Details

Place of Origin: Japan

Brand Name: YAMAHA

Model Number: YV100X

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.wooden case 2.As your order

Delivery Time: 5-8 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 10 Piece/Pieces per Week

Get Best Price
Highlight:

yamaha smt pick and place equipment

,

YV100X smt pick and place equipment

,

YV100X smt placement equipment

Product Name:
YAMAHA YV100X Pick And Place Machine
Model Number:
YV100X
Quality:
Top
Package:
Wooden Case
Condition:
New
Type:
SMT Machine
Brand:
YAMAHA
Delivery:
Ups,dhl,fedex,as Your Order
Product Name:
YAMAHA YV100X Pick And Place Machine
Model Number:
YV100X
Quality:
Top
Package:
Wooden Case
Condition:
New
Type:
SMT Machine
Brand:
YAMAHA
Delivery:
Ups,dhl,fedex,as Your Order
Pcb Assembly Line Smt Yamaha YV100X Pick And Place Machine

Buy And Sell Cheap SMT Machine YAMAHA YV100X Smt Mounter Smt Pick And Place Machine



Name: YAMAHA Pick and Place Machine
Brand: YAMAHA
Model: YAMAHA YV100X Pick and Place Machine
Specification: YAMAHA YV100X Pick and Place Machine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect



1. High Speed 18000CPH(best condition)
2. High-end SMD Pick And Place Machine.
3. Support from 0402~100mm.
4. PCB Max Size: L457 × W407mm.



The YAMAHA Pick and Place Machine YSM10 is newly developed based on the three "Ones" concept and provides 1)

a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement,

and 3) an integration of three models of the YS12 type into one platform.
Simultaneously, the specifications of all three current models of the YAMAHA Pick and Place Machine YS12 series

have been integrated into one platform featuring the flexibility and mobility of the compact high-speed modular YS12;

the partly simplified version of the compact economy-modular YS12P, and the highly-versatile compact modular YS12F.
In addition, pickup and recognition errors are suppressed along with reduced loss in machine stoppage due the integration

of the common functionalities of the two high level machines.



Specification:
1. This model is a medium-speed multi-functional chip mounter, which can stick larger chip components such as 0402.0603.0805.1206.3528 and IC.QFP.SOT.SOP.SOJ.PLCC.BGA. Components.
2. The theoretical speed of this model is 0.20S per point and the theoretical speed is 18000 points per hour. The actual running speed is around 10,000-12,000 points per hour.
Five. The maximum can be attached to the PCB: max457x407mm. Minimum pasteable PCB: min50x50mm
3. At present, according to different customer needs, it can be changed to paste 1.2 meters long LED and other boards.
7. The thickness of the substrate can be attached to the PCB of 0.4mm-3.0mm
4. The conveying direction of the substrate is generally from right to left, and the direction of feeding the plate can be changed as required.
Nine. There are generally 90 types of components that can be placed, which refers to 8mm feeder.
5. In addition to the feeder can be pasted, tray; tube; bulk can be pasted
XI. There are 90 kinds of thousands of domains, referring to 8mm feeder.
6. In addition to the feeder can be pasted, tray; tube; bulk can be pasted
XI. Overall dimensions of the machine L1650xW1450x1450mm
Twelve. Three-phase AC200V; AC380V;
Thirteen. 0.55MPA
7. Weight: 1580KG

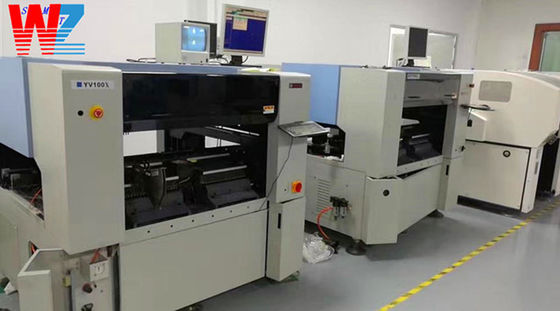

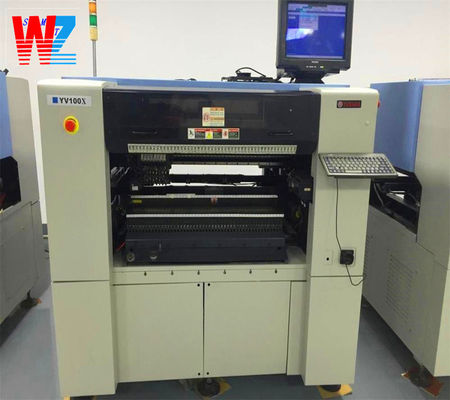

Pcb Assembly Line Smt Yamaha YV100X Pick And Place Machine 0

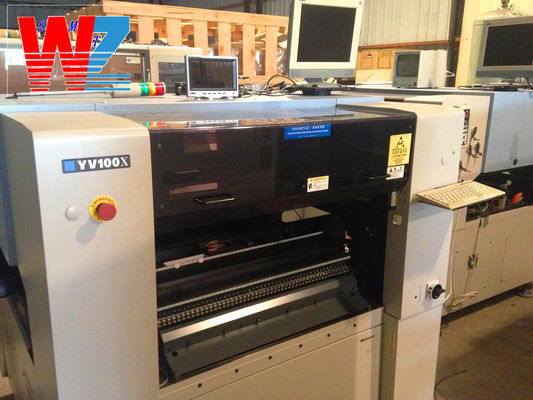

Pcb Assembly Line Smt Yamaha YV100X Pick And Place Machine 1
