SMT PCB Assembly line JUKI 2060 SMT Pick And Place Machine

Product Details:
Place of Origin: Japan
Brand Name: JUKI
Model Number: 2060
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 1.wooden case 2.As your order
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, Paypal, Credit card
Supply Ability: 10 Piece/Pieces per Week
  • Detail Information
  • Product Description

Detail Information

Product Name: SMT Pick And Place Machine JUKI 2060 Model Number: 2060
Quality: Top Package: Wooden Case
Condition: New Type: SMT Machine
Brand: JUKI Delivery: Ups,dhl,fedex,as Your Order
High Light:

JUKI 2060 SMT Pick And Place Machine


anti scratch SMT Pick And Place Machine


2060 juki pcb machine

Product Description

Buy And Sell Cheap SMT JUKI 2060 Pick And Place Machine

Name: JUKI pick and place machine
Brand: JUKI
Model: JUKI 2060 pick and place machine
Specification: JUKI 2060 pick and place machine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect

JUKI-KE2060 pick and place machine can not only correspond the IC or complex shape of the opposite sex components,

but also has a small component of the high-speed placement capability.


FUJI :QP341E CP642 CP643ME CP743 CP733 CP732 CP8
XP141 XP142 XP143 XP242 XP243 XPF-L


YV88XG,YV180X,YV180XG,YV180XGP,YV100XTG,YV100XGT,YV112,YV112 YV100II, YV100X, YV100XG,
YG100 YG100R, YG200, YG300 YG12 YG12F
YS12, YS12F,YS24, YS88 YS100 YSM10 YSM20 YSM40

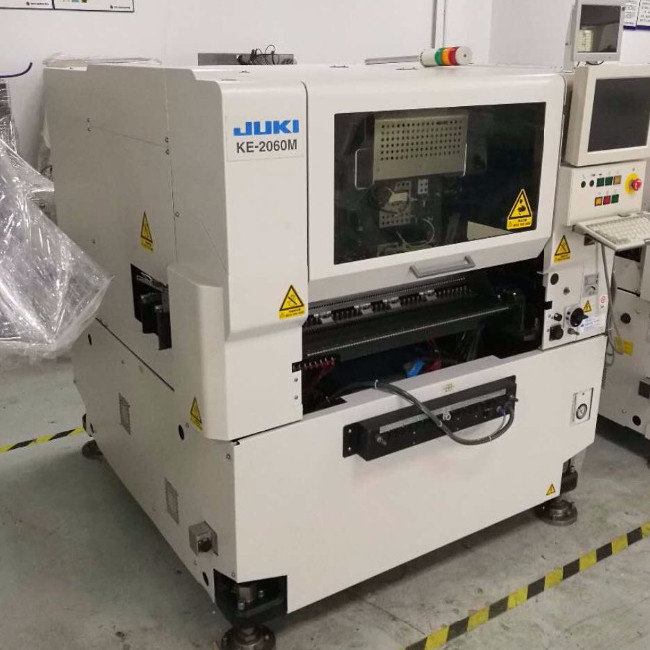

SMT PCB Assembly line JUKI 2060 SMT Pick And Place Machine 0

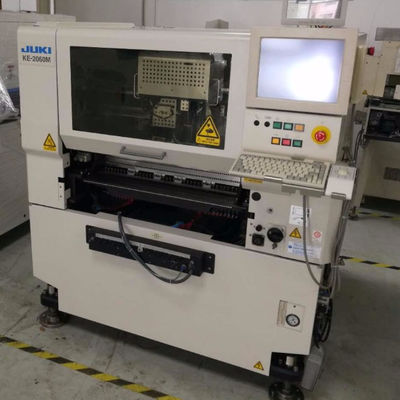

SMT PCB Assembly line JUKI 2060 SMT Pick And Place Machine 1
SMT PCB Assembly line JUKI 2060 SMT Pick And Place Machine 2

Product Details

12,500 CPH: chip (laser recognition / actual production efficiency)
1,850CPH: IC (image recognition / actual production efficiency),
3,400 CPH: IC (image recognition / use MNVC)
Laser patch head × 1 (4 nozzle) & high resolution visual mounting head × 1 (1 nozzle)
0603 chip (British 0201) chip ~ 33.5mm square components.
0402 (British 01005) chip is factory settings.
Image recognition (reflection / transparency, ball identification, segment recognition)
(510 x 460 mm) * 1 (510 x 360 mm) Lwide (510 x 360 mm) L substrate (510 x 360mm)
Laser recognition 0603 chip (inch 0201) chip ~ 33.5mm square element
Image recognition 1.0 × 0.5mm * 2 ~ 74mm square or 50 × 150mm 0402 (British 01005) chip requires option)

Component placement speed chip components 12,500CPH * 3;
IC components 1,850CPH * 3 * 4;   3,400 CPH * 5
Component placement accuracy Laser recognition ± 0.05mm
Image recognition: ± 0.03mm (± 0.04mm when using MNVC (optional)
Feature :
1.Applies two gantries equipped with 10 spindles per head as well as new flying vision.
2.The highest speed among the same class component placers,placement accuracy correction system(head offset,

C/V offset etc.).
3.It is applicable to 0402-14mm(H=12mm)ICs.
4.Reinforced its applicability to odd shaped parts by applying a ß-staged light system.
5.Dual Lane System:PCB Loading Time of  "ZERO" Maximiaes actual productivity by minimizing the PCB transfer time

by adopting

a first-in-first-out type shuttle inlet conveyor.
6.It has improved actual productivity and placement quality by applying high speed and high precision electrically

driven feeders.
7.It is designed to be compatible with SM series pneumatic feeders.
it maximizes the customer's operational convenience.
8.Parameter:Can accommodate120pcs 8mm Feeder( Docking Cart)

Related Product

We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,

nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!

The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine

SMT PCB Assembly line JUKI 2060 SMT Pick And Place Machine 3
