SMT MACHINE SAMSUNG HANWHA SMT SM482Plus Pick And Place Machine

MOQ: 1pcs
Price: Negotiable
Standard Packaging: 1.wooden case 2.As your order
Delivery Period: 3-5 days
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 10 Piece/Pieces per Week
Detail Information
Product Description
Detail Information
Place of Origin
Busan, South Korea
Brand Name
SAMSUNG/ HANWHA
Model Number
SM482Plus SM481Plus SM471Plus
Product Name:
SM482Plus SM481Plus SM471Plus SMT Pick And Place Machine
Brand:
Samsung
Model Number:
SM481Plus SM482Plus SM471Plus
Condition:
Used, New
Core Components:
Motor
Warranty:
3 Months
Quality:
Top Quality
Package:
Wooden Case
Type:
SMT Pick And Place Machine
Delivery:
Ups,dhl,fedex,as Your Order
Highlight:

SM482Plus smt pick and place machine

,

30000CPH smt pick and place machine

,

SM482Plus smt placement machine

Product Description

SMT MACHINE SAMSUNG HANWHA SMT SM482Plus Pick And Place Machine



The SM482Plus pick and place machine is an advanced automated equipment used in the electronics manufacturing industry for high-speed and precise placement of electronic components onto printed circuit boards (PCBs). It offers a range of functionality and features that enhance efficiency, accuracy, and productivity in the assembly process.



Name: Hanwha pick and place machine
Brand: SAMSUNG-Hanwha
Model: SM482Plus/SM481Plus/SM471Plus
Specification: SMT pick and place machine
Condition: brand new and brand used
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In 5 days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect



Specifications SAMSUNG-HANWHA SMT pick and place machine
Model SM471Plus SM481Plus SM482Plus
Alignment Flying Vision Flying Vision+stage vision Flying Vision+stage vision
Spindles 10 Spindles × 2 Gantries 10 Spindles × 1 Gantry 6 Spindles × 1 Gantry
Placement Speed 78,000CPH(Optimum) 40,000CPH(Optimum) 30,000CPH(Optimum)
Placement Accuracy ±40μm@μ±3σ ±40μm@μ±3σ ±40μm@μ±3σ
Applicable Parts 0402 ~ 14mm(H 12mm) 0402 ~ 42mm(H 15mm) 0402 ~ 55mm(H 15mm)
Applicable PCB(L × W) Max. 510 × 460(Standard) Max. 460 × 400(Standard) Max. 460 × 400(Standard)
Max. 610 × 460(Option) Max. 1500 × 460(Option) Max. 1200 × 510(Option)
Dimension(L.D.H) 1650×1690×1458 1650×1680×1530 1650×1680×1458
Mass(Kg) Approx. 1820 Approx. 1655 Approx. 1600

Functionality:

1. Component Placement: The SM482Plus pick and place machine is designed to accurately place a wide range of electronic components onto PCBs. It utilizes robotic arms, vacuum nozzles, and vision systems to pick components from feeders or trays and precisely position them onto designated locations on the PCB. This feature ensures accurate component alignment and placement, minimizing the risk of assembly errors.
2. High-Speed Placement: The machine is capable of high-speed component placement, maximizing production throughput and efficiency. It can achieve rapid pick-and-place operations, allowing for fast assembly of PCBs and meeting high-volume production requirements.
3. Component Compatibility: The SM482Plus pick and place machine supports a broad range of electronic components, including surface mount devices (SMDs) such as resistors, capacitors, integrated circuits (ICs), and various package types. It can handle components of different sizes, shapes, and orientations, accommodating diverse assembly requirements.
4. Vision System Integration: The machine often incorporates vision systems for component alignment and inspection. The vision system uses cameras and image processing algorithms to precisely align components with solder pads on the PCB. It also allows for real-time inspection of component placement accuracy, ensuring quality control during the assembly process.
5. Multi-Head Placement: The SM482Plus pick and place machine may feature multiple placement heads. This enables simultaneous placement of multiple components, further enhancing production speed and efficiency. The multi-head configuration allows for the assembly of complex PCBs with a high component density.
6. Programmable Control: The machine is equipped with programmable control systems. It allows operators to define and adjust placement parameters, such as pick-and-place positions, component orientation, and speed profiles. This flexibility enables customization to match specific PCB layouts and component requirements, optimizing placement accuracy and productivity.

Usage Range:
The SM482Plus pick and place machine is used in various applications within the electronics manufacturing industry, including:

1. PCB Assembly: It serves as a key component in automated PCB assembly lines. The machine facilitates the precise placement of electronic components onto PCBs, ensuring efficient and accurate assembly processes.
2. High-Volume Production: The SM482Plus pick and place machine is well-suited for high-volume production runs. Its high-speed placement capability and efficient handling of diverse components make it ideal for meeting large-scale manufacturing demands.
3. Surface Mount Technology (SMT) Assembly: The machine is commonly used in surface mount technology assembly processes. It efficiently handles SMD components and supports the assembly of complex PCBs with densely populated components, such as those found in consumer electronics, automotive, telecommunications, and other electronic devices.
4. Multi-Product Manufacturing: The SM482Plus pick and place machine is suitable for multi-product manufacturing scenarios. It allows for quick changeovers between different PCB designs or product variants, enabling efficient production of diverse electronic assemblies.
5. High-Precision Applications: The machine is utilized in applications that require high placement accuracy, such as medical devices, aerospace electronics, or high-end consumer electronics. It ensures precise component alignment and placement, meeting the strict quality standards of these industries.

The SM482Plus pick and place machine plays a vital role in the automated assembly of electronic components onto PCBs. It offers high-speed, accurate, and flexible placement capabilities, contributing to efficient production processes and ensuring high-quality electronic assemblies.

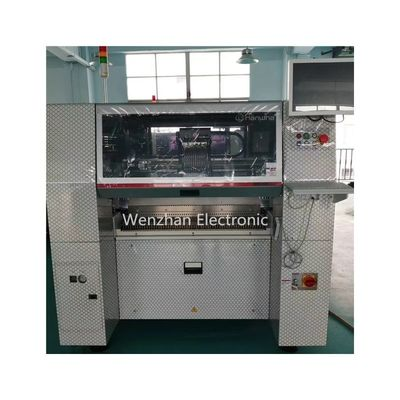

SMT MACHINE SAMSUNG HANWHA SMT SM482Plus Pick And Place Machine 0

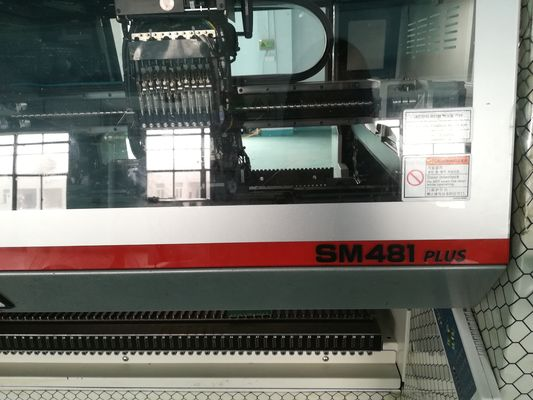

SMT MACHINE SAMSUNG HANWHA SMT SM482Plus Pick And Place Machine 1

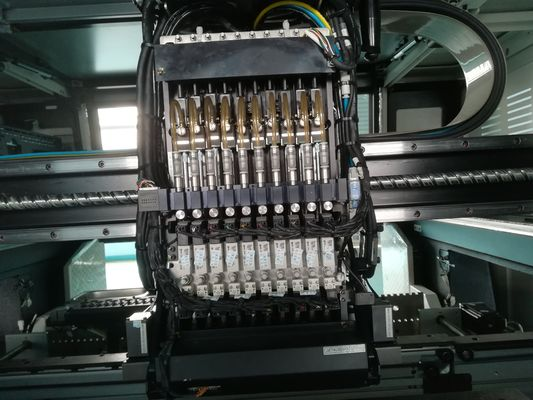

SMT MACHINE SAMSUNG HANWHA SMT SM482Plus Pick And Place Machine 2

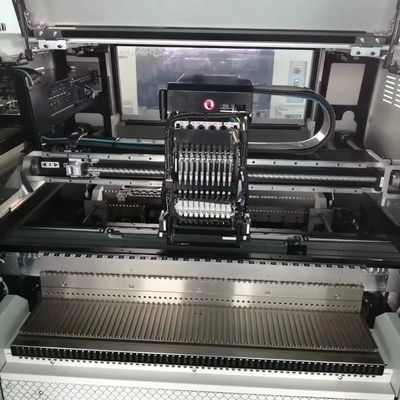

SMT MACHINE SAMSUNG HANWHA SMT SM482Plus Pick And Place Machine 3
