| MOQ: | 1pcs |
| Price: | 73000$ |
| Standard Packaging: | 1.carton box with foam protect 2.as your order |
| Delivery Period: | 3-5 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 2000 Piece/Pieces per Week |

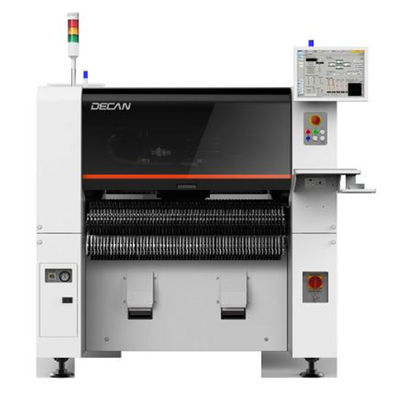

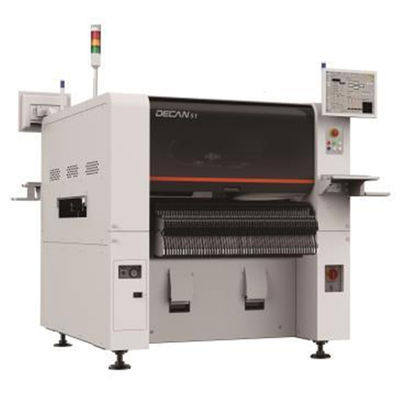

SMT Pick And Place Machine SAMSUNG Hanwha DECAN S1 S2
The DECAN S2 is a new model in the DECAN range from Hanwha Techwin. Due to todays technology getting smaller and more compact, the demand for more accurate and repeatable machines has driven the development of the NEW DECAN S2
Capable of placing 03015 components with Placement Accuracy of ±25µ@3σ/QFP, ±28µ@3σ/03015 Chip
Another development is the conveyor option improvements allowing placement of PCB's up to 1200mm x 460mm (optional)
Features:
Fast Electric Feeders which automatically adjust their pocket positions for ultimate synchronised picking
Front and back operation as standard
Large PCB Size of up to 1200mm x 460mm
03015 component recognition as standard
120 x 8mm Feeder Capacity
High Accuracy ±25µ@3σ/QFP, ±28µ@3σ/03015 Chip
Small Footprint of just 1430mm x 1740mm x 1485mm
5KVA Max Power

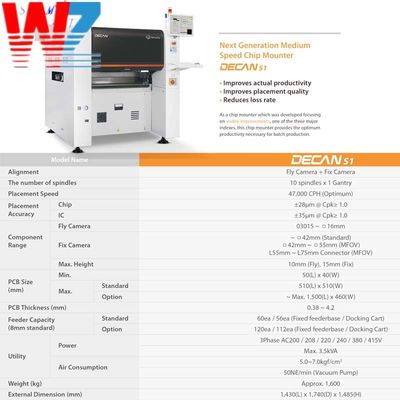

| Product name | SAMSUNG Hanwha DECAN S1 S2 pick and place machine |
| Brand Name | samsung hanwha |
| Model | DECAN S1 S2 |
| Type | smt pick and place machine |
| Core Components | Hanwha DECAN S1 |
| Model Number | DECAN S1 S2 |
| PCB Size | L510xW460mm |
| Place of Originl | South Korea |
| Application | for smt line |
| High Speed | 92,000 CPH(HS10 head) |
Video
Video
Video
Video
Video
Video
Video
Video
Video
|
|
| MOQ: | 1pcs |
| Price: | 73000$ |
| Standard Packaging: | 1.carton box with foam protect 2.as your order |
| Delivery Period: | 3-5 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 2000 Piece/Pieces per Week |
SMT Pick And Place Machine SAMSUNG Hanwha DECAN S1 S2
The DECAN S2 is a new model in the DECAN range from Hanwha Techwin. Due to todays technology getting smaller and more compact, the demand for more accurate and repeatable machines has driven the development of the NEW DECAN S2
Capable of placing 03015 components with Placement Accuracy of ±25µ@3σ/QFP, ±28µ@3σ/03015 Chip
Another development is the conveyor option improvements allowing placement of PCB's up to 1200mm x 460mm (optional)
Features:
Fast Electric Feeders which automatically adjust their pocket positions for ultimate synchronised picking
Front and back operation as standard
Large PCB Size of up to 1200mm x 460mm
03015 component recognition as standard
120 x 8mm Feeder Capacity
High Accuracy ±25µ@3σ/QFP, ±28µ@3σ/03015 Chip
Small Footprint of just 1430mm x 1740mm x 1485mm
5KVA Max Power
| Product name | SAMSUNG Hanwha DECAN S1 S2 pick and place machine |
| Brand Name | samsung hanwha |
| Model | DECAN S1 S2 |
| Type | smt pick and place machine |
| Core Components | Hanwha DECAN S1 |
| Model Number | DECAN S1 S2 |
| PCB Size | L510xW460mm |
| Place of Originl | South Korea |
| Application | for smt line |
| High Speed | 92,000 CPH(HS10 head) |
