| MOQ: | 1 set/sets |
| Price: | 50000~75000$ |
| Standard Packaging: | 1.Wooden case and vacuum package 2.As your requirements |
| Delivery Period: | 3 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 5000 |

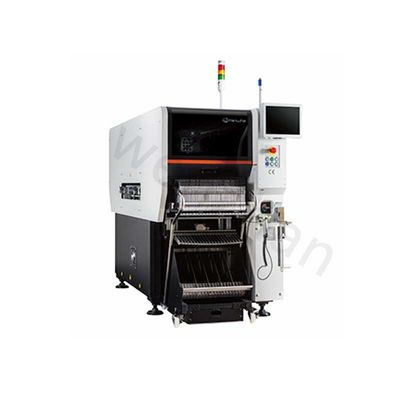

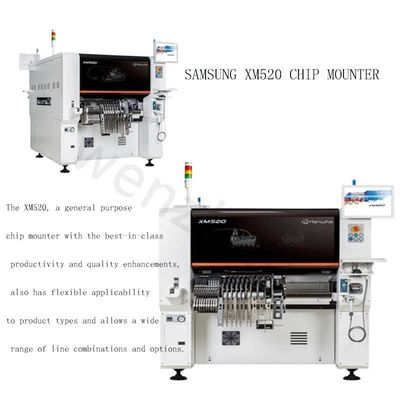

SMT SAMSUNG HANWHA XM520 HS CHIP MOUNTER MACHINE FOR SMT PCB Assembly Line LED
The HM520 series mos are a state-of-the-art high-speed modular with extreme flexibility.
· Actual productivity is highest among machines of the same class
· Optimized to high quality production
· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution
Specifications
Alignment :Fix Camera
Number of Spindles: 20 spindles x 2 Gantry (Rotary Type)
Placement Speed: 80,000 CPH
Placement Accuracy: ±25 μm @ Cpk ≥ 1.0 (Chip)
Component Range: 0201 ~ □ 6 mm
High Speed
20 Spindle Head (Rotary Type)
Recognizes 20 spindles quickly at a with the fix camera by designing the head to be and light.
High Reliability
Prevents Non-insertion by the Side View Camera
Checks for the existence of a nozzle and the posture of a picked component during production, and inspects the state before and after the component placement to prevent non-placement of the component.
Flexible Production
Family Job Change
Minimizes the mo changing by arranging the feeders and nozzles in common when producing family mos.
Easy Operation
LED Rank / Random
Possible to register components different by LED rank and arrange placement points at random by LED or.
other machine
We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .
wenzhan Techonologies Co.,Ltd
In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.
In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.
EXHIBITION PHOTO :
Why Choose Us?
It is precisely because wenzhan technology has the following advantages over the same industry that
more and more customers choose wenzhan as their preferred supplier.
1. Professional pre-sales advice support
2. Excellent after-sales technical service
3. Flexible payment and return policy
4. One stop solution for SMT accessories
5. Stock in the factory with sufficient stock and fast delivery
Video
Video
Video
Video
Video
Video
Video
Video
Video
|
|
