The electronics industry has entered an era where product lifecycles shrink, component counts explode, and board designs change almost weekly. For EMS providers and OEMs alike, the ability to reconfigure a production line quickly is the single biggest driver of profitability. Rigid, single-purpose placement machines — the old workhorses of the SMT floor — are being pushed aside by a new generation of modular systems that can be reshaped around the job at hand.

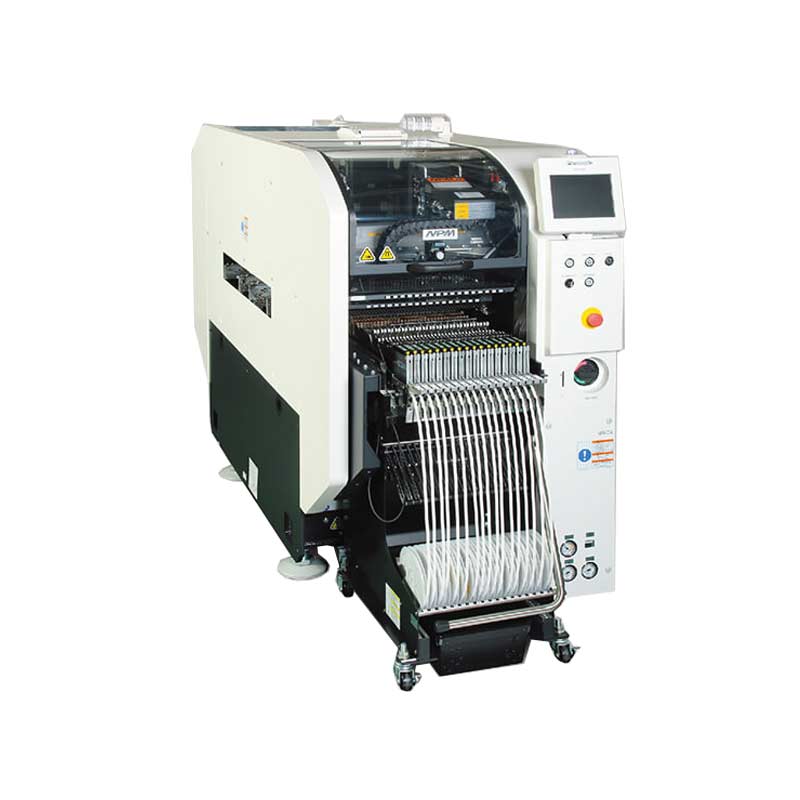

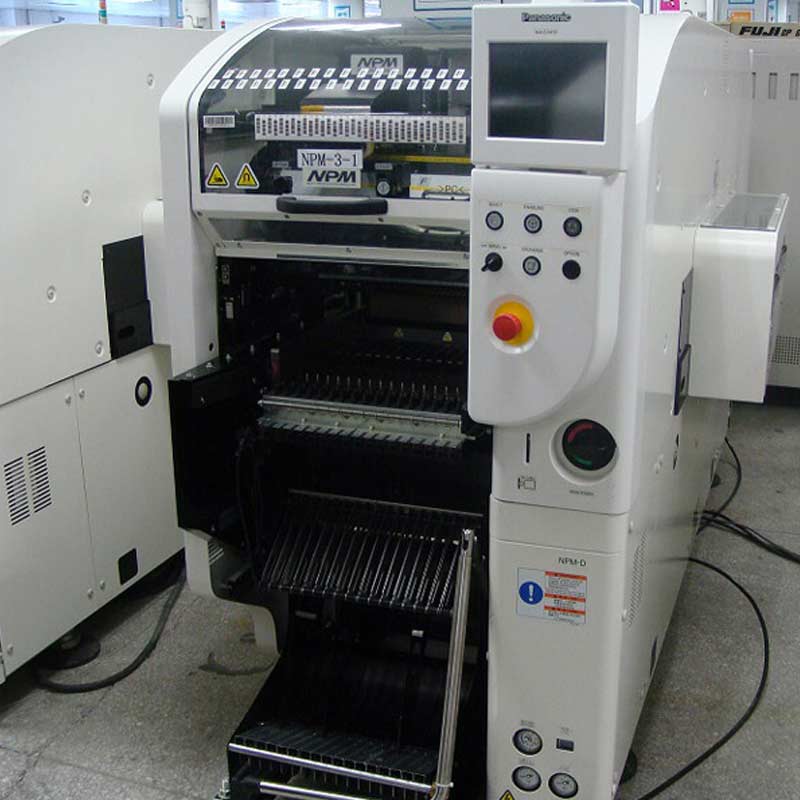

The Panasonic NPM-D3 is precisely such a system. As part of Panasonic's NPM series, it represents a mature, battle-tested platform that has powered some of the world's most demanding electronics factories. With its dual-lane conveyor, dual-beam design, and tool-free head exchange, the NPM-D3 turns the traditional "line of machines" into a single, flexible placement cell.
Before examining the solution, it is essential to understand why traditional mounting lines struggle in today's market:
The Mixed-Model Trap: High-mix production forces frequent changeovers. When a line is dedicated to a single board type, switching to a new product means halting the line, swapping feeders, and re-validating programs — often losing hours of productive time.
Micro-Component Yield Loss: As components shrink to 0201 (0.6 × 0.3 mm) and below, pick-up and placement errors rise sharply. On older machines, a high "抛料率" (component throw-away rate) silently eats into margins through wasted components and increased rework.
Line Balancing & Upgrade Costs: A typical line pairs high-speed machines with multi-function machines. If the balance is wrong, one machine becomes a permanent bottleneck. Worse, expanding capacity traditionally requires buying another full machine — a heavy capital burden.
The NPM-D3 attacks all three problems at their root: modularity, dual-lane independence, and scalable head configurations.
The NPM-D3 is designed around one philosophy: the line should adapt to the product, not the other way around.

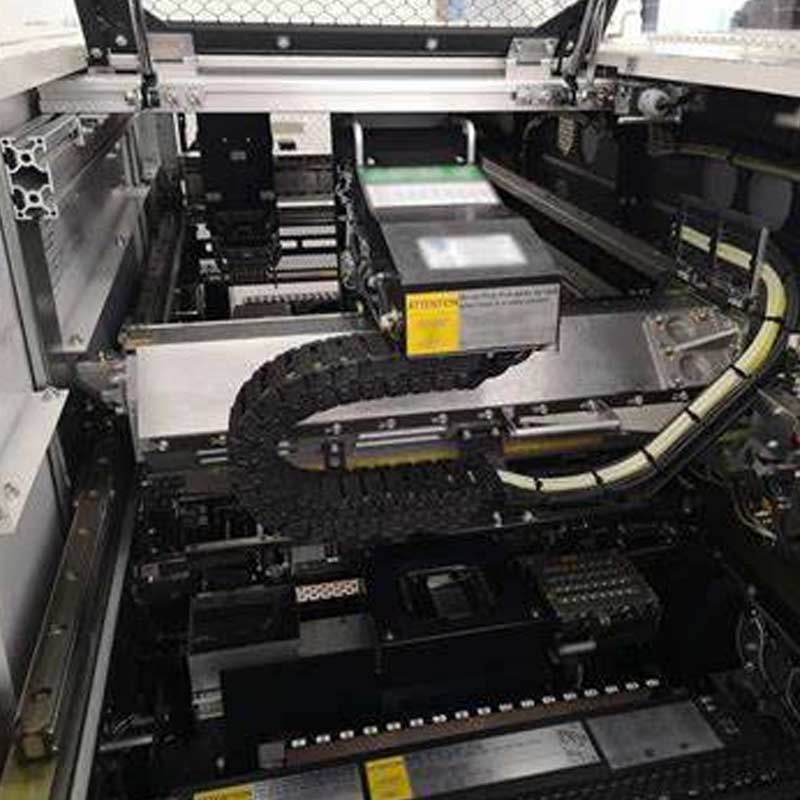

The NPM-D3 features a dual-lane conveyor with two independent beams (heads). In "independent mode," each beam works on a different lane simultaneously — effectively running two different board types in one machine at the same time. In "alternating mode," the two beams take turns on a single lane, eliminating board-transfer loss entirely. This is the foundation of the machine's impressive 90,000+ CPH output.
The NPM-D3 supports two interchangeable placement heads:
16-Nozzle Head (V3 Lightweight): Optimized for high-speed placement of small chips, delivering class-leading tact time.
8-Nozzle Head: Handles larger, heavier components (up to 100 × 100 mm and 28 mm tall) with precision and force control.
Because heads are exchanged without tools, the same machine body can be reconfigured between high-speed and multi-function roles in minutes — turning line balancing from a crisis into a routine operation.
With a placement accuracy of ±25 µm, the NPM-D3 is certified for 03015 / 0201 (0.6 × 0.3 mm) and 0402 chip components. Its multi-function recognition camera performs chip, BGA, and QFP inspection in a single scan, reducing recognition time while maintaining the accuracy required for advanced packaging.
From the smallest 0201 chip resistors to massive 100 × 100 mm connectors and 28 mm-tall components, the NPM-D3 covers the full range on a single platform — eliminating the need for a separate multi-function machine in most lines.
The NPM-D3's combination of speed and flexibility makes it the preferred choice for four high-stakes industries:
From ECUs to ADAS sensor boards, automotive PCBA demands zero-defect reliability. The NPM-D3's ±25 µm precision and traceability features support the strict IATF 16949 quality regimes of Tier-1 suppliers.
5G base stations and RF modules feature extreme component density and mixed package types. The NPM-D3's ability to run different board types on each lane is ideal for the multi-variant production typical of the communications industry.
For implantable and diagnostic electronics, placement accuracy is a matter of patient safety. The NPM-D3 provides the repeatable precision and full traceability required for ISO 13485 environments.
Flagship smartphones, tablets, and wearables demand 0201/03015 capability at high speed. The dual-lane design lets manufacturers keep high-volume flagship lines running while introducing new models — without sacrificing output.
A placement machine is only as good as the line around it. Our professional team provides complete support to ensure your NPM-D3 delivers maximum ROI.
We don't just deliver machines; we design production systems. Our engineers can configure a complete turn-key SMT line around your NPM-D3 — including solder paste printers, reflow ovens, AOI/SPI inspection, and conveyors — precisely matched to your board sizes and throughput targets.
Every factory has different needs. We offer flexible service packages, from Turn-Key Setup (installation, calibration, and operator training) to Ongoing Optimization (periodic performance audits and software support to keep your NPM-D3 at peak efficiency).
Backed by our global support network, we provide 24/7 remote diagnostics, rapid spare parts fulfillment, and on-site engineering visits — ensuring your production line stays up and running.
The Panasonic NPM-D3 represents a strategic shift in how electronics manufacturers think about placement capacity. It is not simply a faster mounter; it is a modular platform that grows and adapts with your product portfolio. For manufacturers facing the twin pressures of miniaturization and product variety, the NPM-D3 is a proven, low-risk investment.
Ready to redefine your SMT line? Contact our professional team today for a free consultation and a customized NPM-D3 solution proposal.
