YAMAHA

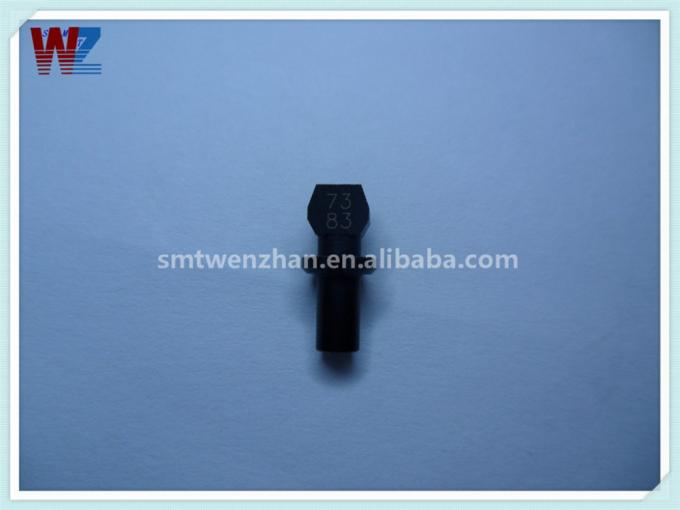

Yamaha YV100X Nozzle 73A KV8-M7730-00X SMT Part
About This Yamaha YV100X 73A SMT Nozzle
The 73 tip is the one a YV100X head fits when the part is bigger than a chip. It picks by vacuum at the tip end and sets the component down on the pad, then releases it and rises away.
On this number the size is written both ways, 73# and 73A, and the parts number behind it is one tip. Assembleon catalogues carry the same tip under their own reference, so a line running a Philips-badged machine can order from the same shelf.
Three figures accompany the 73A: 4.0, 3.0 and 2.0, all in millimetres. The dimension behind each figure is not stated, so none is assumed.
Key Specifications & Yamaha Part Number Mapping
Specifications
| Item | Value |
| --- | --- |
| Product Name | YAMAHA YV100X 73# 73A NOZZLE |
| Brand | YAMAHA |
| Type | SMT Machine Parts |
| Condition | New, Original |
| Package | Foam Package+Plastic BOX+Carton Box |
| Package Type | 1.Foam Package+Plastic BOX+Carton Box 2.As Your Order |
| Selling Units | Single Item |
| Single Package Size | 20X8X6 Cm |
| Single Gross Weight | 0.500 Kg |
| Delivery | Dhl,fedex,etc... |
| Warranty | 1 Month |
The product name, brand, type, packaging size, shipping weight and the one-month period are stated in the same terms throughout, with only letter case differing, so nothing here contradicts itself.
Where the three identifiers sit:
| Reference | Number as listed |
| --- | --- |
| Yamaha parts number | KV8-M7730-00X |
| Assembleon / Philips reference | PA 2962/45 (9965 000 02777) |
| Figures listed for the 73A tip | 4.0 / 3.0 / 2.0 |
Ordering by any one of the three reaches the same tip. What each figure measures is not stated, so no dimension is attached to them.
Component Pickup, Tip Dimensions & Machine Compatibility
Pickup happens at the tip. Vacuum is drawn through the nozzle, the tip face closes on the component, and the head carries it to the pad before the vacuum is broken. A tip that is worn, blocked or the wrong seat for the part shows itself as pickup misses, as parts that shift on the way, or as a nozzle that will not let go cleanly.
YV100X is the machine named on this number. Compatibility runs wider than that, into the Assembleon families and the Philips-badged machines that share the same tips, and the series groups are set out below.

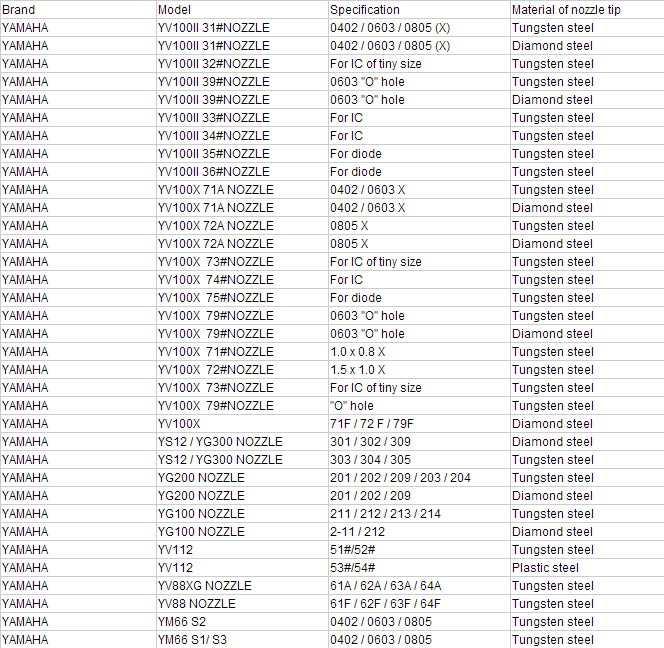

Yamaha nozzle part number:
| Part Number | Description as listed |
| --- | --- |
| KV8-M7710-A1X | NOZZLE 71A ASSY. |
| KV8-M7720-A1X | NOZZLE 72A ASSY. |
| KV8-M7730-00X | NOZZLE 73A |
| KV8-M7740-A0X | NOZZLE 74A |
| KV8-M7760-00X | NOZZLE 76A |
| KM0-M711A-31X | TYPE 31 |
| KM0-M711C-02X | TYPE 32 |
| KM0-M711D-00X | TYPE 33 |
| KM0-M711E-00X | TYPE 34 |
| KG7-M71AB-A0X | TYPE 35 |
| KV8-M71N1-A0X | NOZZLE 71F ASSY 1 TYPE71F A |
| KV8-M71N2-A0X | NOZZLE 72F ASSY 1 TYPE72F A |
| KV8-M71N3-A0X | NOZZLE 73F ASSY 1 TYPE73F |
| KGT-M7710-A0X | NOZZLE 201A ASSY. 1 Type 201A |
| KGT-M7720-A0X | NOZZLE 202A ASSY. 1 Type 202A |
| KGT-M7730-A1X | NOZZLE 203A ASSY. 1 Type 203A |
| KGT-M7760-A0X | NOZZLE 206A ASSY. 1 Type 206A |
| KGT-M7790-A0X | NOZZLE 209A ASSY. 1 Type 209A |
| KV8-M711N-A0X | NOZZLE & SHAFT ASSY. 1 |
| KV8-M71U0-01X | NOZZLE ASSY. 1 71/ 72/ 73F |
| KV8-M71N1-A0X | NOZZLE 71F ASSY. 1 |
| KV8-M71U5-00X | SCREW 2 |
| KV8-M71N2-A0X | NOZZLE 72F ASSY. 1 |
| KV8-M71N3-A0X | NOZZLE 73F ASSY. 1 |
| KV8-M87XD-A0X | NOZZLE 73F-D ASSY. 1 Op. |
| KV8-M71U8-00X | BLOCK, NOZZLE 1 |
| KV8-M71R1-10X | SHAFT 1 1 |
| KV8-M71R1-20X | SHAFT 1 1 |
| KV8-M71R1-30X | SHAFT 1 1 |
| KV8-M712N-A0X | NOZZLE & SHAFT ASSY. 1 |
| KV8-M71U0-10X | NOZZLE ASSY. 1 71/ 79/ 73F |
| KV8-M71N9-A0X | NOZZLE 79F ASSY. 1 |
| KV8-M713N-A0X | BLOCK & NOZZLE ASSY |
| KV7-M7710-A1X | NOZZLE 61A ASSY. |
| KV7-M7713-00X | O-RING |
| 90200-02J015 | O-RING |
| KV7-M7720-A1X | NOZZLE 62A ASSY. |
| KV7-M7730-00X | NOZZLE 63A |
| KV7-M7740-A0X | NOZZLE 64A ASSY. |
| KV7-M7741-00X | BODY. NOZZLE 64A |
| KGB-M7742-00X | O-RING |
| 90990-17J013 | O-RING |
| KV7-M7750-A0X | NOZZLE 65A ASSY. |
| KV7-M7751-00X | BODY. NOZZLE 65A |
| KGA-M7752-00X | O-RING |
| 90990-17J015 | O-RING |
| KV7-M7760-00X | NOZZLE 66A |
| KV7-M77GX-A0X | CIRCLE NOZZLE 6A |
| KV7-M7790-A0X | NOZZLE 69A ASSY. |
Machine Assembleon MG-Series
| P/N | Description as listed |
| --- | --- |
| KGT-M7710-A0 | Nozzle,#201 0.6 / 0.8 |
| 9498 396 01480 | Nozzle,#202 1.0 / 1.7 |
| KGT-M7790-A0 | Nozzle,#209 1.2 / 0.65 |
Machine
| P/N | Description as listed |
| --- | --- |
| PA 2962/47 (5322 360 10493) | Nozzle,#71A (0.6/0.8) |
| PA 2962/48 (5322 360 10494) | Nozzle,#72A (1.0/1.7) |
| PA 2962/45 (9965 000 02777) | Nozzle,#73A (4.0/3.0/2.0) |
| PA 2962/44 (5322 360 10495) | Nozzle,#74A (O-ring) |
| PA 2962/46 (5322 360 10496) | Nozzle,#76A, MELF |
| PA 2962/38 (5322 360 10484) | Nozzle,#71F |
| PA 2962/39 (5322 360 10485) | Nozzle,#72F |
| PA 2962/40 (5322 360 10486) | Nozzle,#73F |
| SPECIAL | - |
Machine Assembleon Topaz, Emerald
| P/N | Description as listed |
| --- | --- |
| 5322 360 10198 (PA2962/75) | Nozzle,#31 (UFO Tip) without Spring |
| 5322 360 10433 | Nozzle,#31 (Round Tip) Special type, without Spring |
| 5322 360 10425 (PA2962/78) | Nozzle,#31 (X Tip, 1.0/1.2) Spring loaded |
| 5322 360 10199 (PA 2962/71) | Nozzle,#32-1 with Reflector |
| 5322 360 10201 (PA 2962/72) | Nozzle,#32-2 (4.0/3.0/2.0) |
| 5322 360 10202 (PA 2962/73) | Nozzle,#33 |
| 5322 360 10203 (PA 2962/74) | Nozzle,#34 |
| 5322 360 10272 (PA2962/76) | Nozzle,#35, Melf |
| SPECIAL | Nozzle,Connector Nozzles |
Machine Assembleon Emerald-X(i)II
| P/N | Description as listed |
| --- | --- |
| PA 2962/97 | Nozzle,61A 0.9 / 0.5 |
| PA 2962/98 | Nozzle,62A 1.0 / 1.7 |
| 5322 360 10476 (PA 2962/93) | Nozzle,63A |
| 5322 360 10497 | Nozzle,64A |
| 5322 360 10477 | Nozzle,65A |
| KV7-M71N1-A0X | Nozzle,61F 0.6 / 0.8 |
| KV7-M71N2-A0X | Nozzle,62F 1.0 / 1.7 |
| KV7-M71N3-A1X | Nozzle,63F |
| KV7-M71N4-A0X | Nozzle,64F |
| KV7-M71N5-A0X | Nozzle,62F |
Machine Assembleon Sapphire, Comet
| P/N | Description as listed |
| --- | --- |
| 5332 360 10335 | Nozzle,Type 51 0.9 / 0.5 |
| 5322 479 60083 | Nozzle,Type 52 1.4 / 0.8 |
| 5322 479 60084 | Nozzle,Type 53 3.0 / 2.0 |
| 5322 360 10289 | Nozzle,Type 54 6.0 / 4.0 |
| 5322 360 10219 | Nozzle,Type 55 10.0 / 8.0 |
Packaging Standards, Single-Item Dispatch & One-Month Warranty
Each tip ships as a single item, packed in foam, then a plastic box, then a carton. That is the first packing option; the second is left open to whatever the order asks for. Single package size is put at 20 by 8 by 6 centimetres and single gross weight at half a kilogram, so a handful of tips adds up quickly on an air waybill.
Delivery runs on DHL, FedEx and similar carriers, which leaves the choice with the order rather than fixing one. Say which carrier your freight account is with if it matters.
The period stated for this item is one month. The cover behind it, and the date it runs from, is confirmed when the order is placed rather than assumed.
Frequently Asked Questions On The 73A Yamaha Nozzle
Q1: Which machine is this tip for?
A: The YV100X is the machine named on this number. The tip also appears in the Assembleon lists further up.
Q2: Are 73 and 73A two different tips?
A: No. Both spellings name the same tip on this number, one as a size reference and one as the assembly reference.
Q3: What do 4.0, 3.0 and 2.0 measure?
A: They are the three figures listed with the 73A. Which dimension each belongs to is not stated.
Q4: Can a Philips or Assembleon machine order this?
A: Yes, under PA 2962/45 or 9965 000 02777. Both reach the same tip as the Yamaha number.
Q5: How is one piece packed?
A: Foam, then a plastic box, then a carton. Single-item size and weight are in the specifications.
Q6: Where are the other series numbers?
A: In the series groups on this number, from 61A through the 200 series and the Assembleon Type 31 to 55 range.
