In the rapidly evolving world of electronics, manufacturers are no longer just fighting for speed; they are fighting for versatility. The rise of 5G infrastructure, autonomous driving, and sophisticated medical wearables has pushed SMT (Surface Mount Technology) to its limits. Traditional pick and place machines often struggle to balance high output with the frequent changeovers required for today’s "high-mix, low-volume" market.

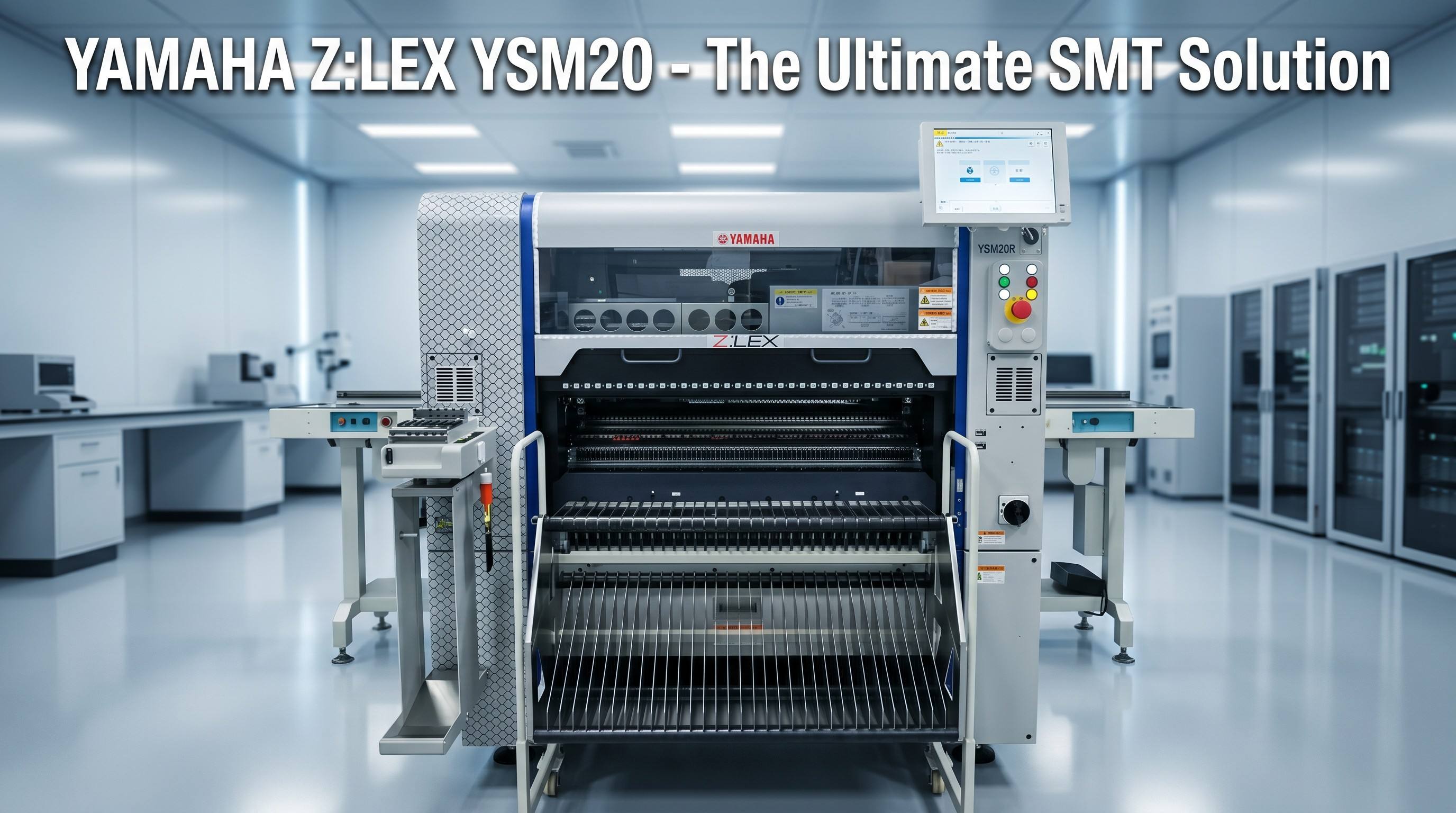

Enter the YAMAHA YSM20 (Z:LEX). Built on the revolutionary "Z:LEX" concept—meaning Z-axis linkage, Light, Efficient, and eXpandable—this machine is not just a mounter; it is a strategic asset for any factory aiming for the future.
The modern SMT production floor is a battlefield of constraints. Industry leaders face three critical "pain points" that can cripple profitability:
The Complexity of Component Miniaturization: As components shrink to 03015 (0.3mm x 0.15mm) or even smaller, traditional machines suffer from high pick-up error rates and placement deviations. A single misaligned component can lead to expensive rework or total board failure.
The High-Mix Dilemma: Customers today demand frequent product updates and smaller batches. This forces manufacturers to switch production lines multiple times a day. If a machine takes hours to recalibrate and re-feeder, the resulting downtime devours the profit margin.
Capacity vs. Space: Most factories have limited floor space. Increasing capacity usually requires adding more machines, which leads to higher power consumption and complex logistics.
The YAMAHA YSM20 is engineered specifically to eliminate these bottlenecks by merging the speed of a dedicated high-speed mounter with the flexibility of a multi-purpose machine.
The YAMAHA YSM20 is widely recognized as the "World’s Fastest" in its class, but its real value lies in its balanced performance.

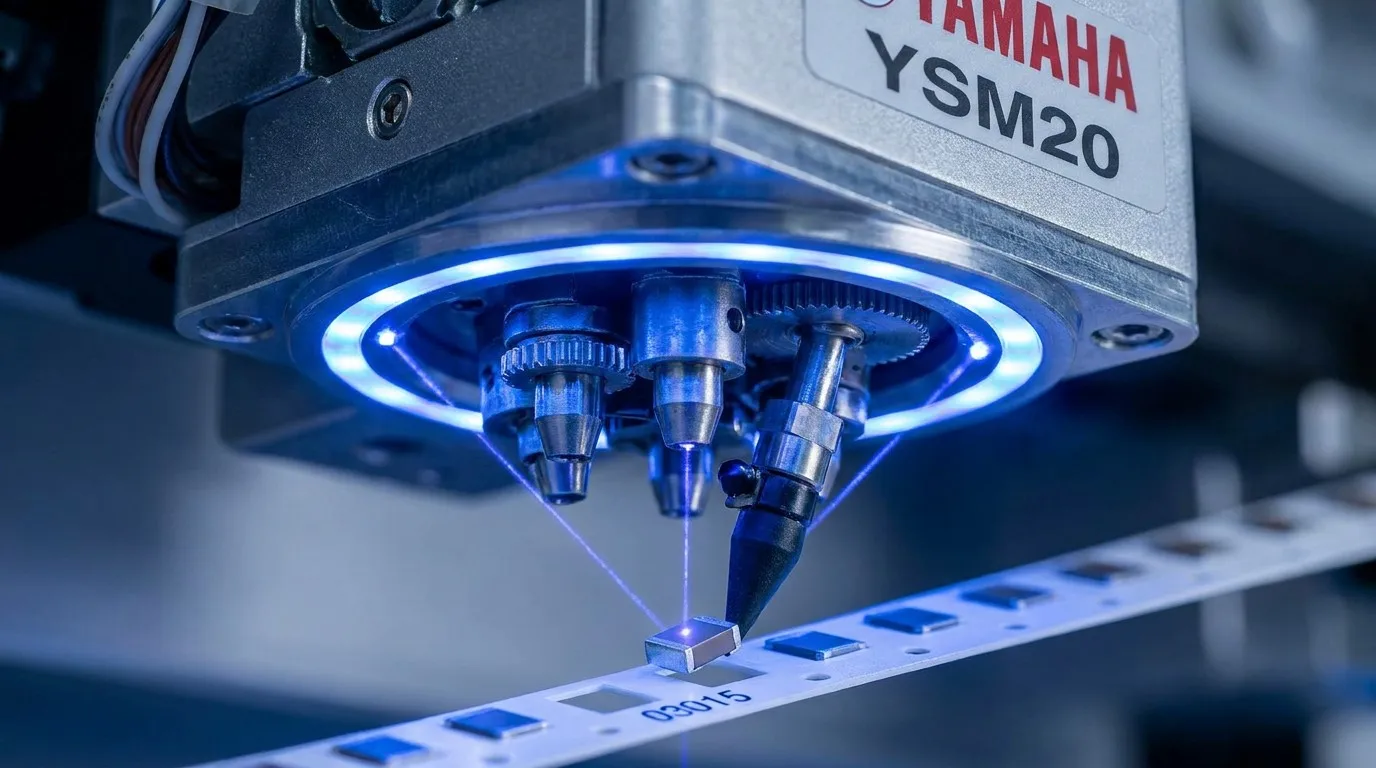

Equipped with the sS (Super Speed) head, the YSM20 can reach a mounting speed of up to 90,000 CPH. This allows manufacturers to maintain high-volume output without sacrificing the precision required for dense PCBA layouts.
The YSM20 features a dual-beam configuration that allows for simultaneous picking and placing. This architectural choice minimizes travel time and maximizes head utilization. Whether you are dealing with a simple LED board or a complex 5G base station module, the YSM20 adapts its workflow in real-time.
One of the most innovative features is the ALF technology. By eliminating the need for traditional tape splicing, the YSM20 reduces human error and drastically cuts down on changeover time. Feeders can be loaded on the fly, ensuring that the machine never stops for material replenishment.
Where does the YAMAHA YSM20 truly shine? Its precision and flexibility make it indispensable in the following high-stakes industries:
From Engine Control Units (ECU) to Advanced Driver Assistance Systems (ADAS), automotive PCBA requires zero-defect reliability. The YSM20’s advanced vision system and force-control mounting ensure that every component is placed with surgical accuracy, meeting the strict IATF 16949 standards.
5G antennas and base stations feature extremely high component density. The ability to handle 03015 chips while maintaining high speed is crucial. The YSM20’s modular heads can switch between tiny chips and large connectors (up to 100mm) without changing the entire machine setup.
Precision in medical devices, such as pacemakers or diagnostic tools, is a matter of life and death. The YSM20 provides the traceability and placement accuracy required for these high-complexity boards.
At Wenzhan, we believe that the machine is only half of the solution. To truly optimize your production, you need a partner who understands the entire SMT ecosystem.

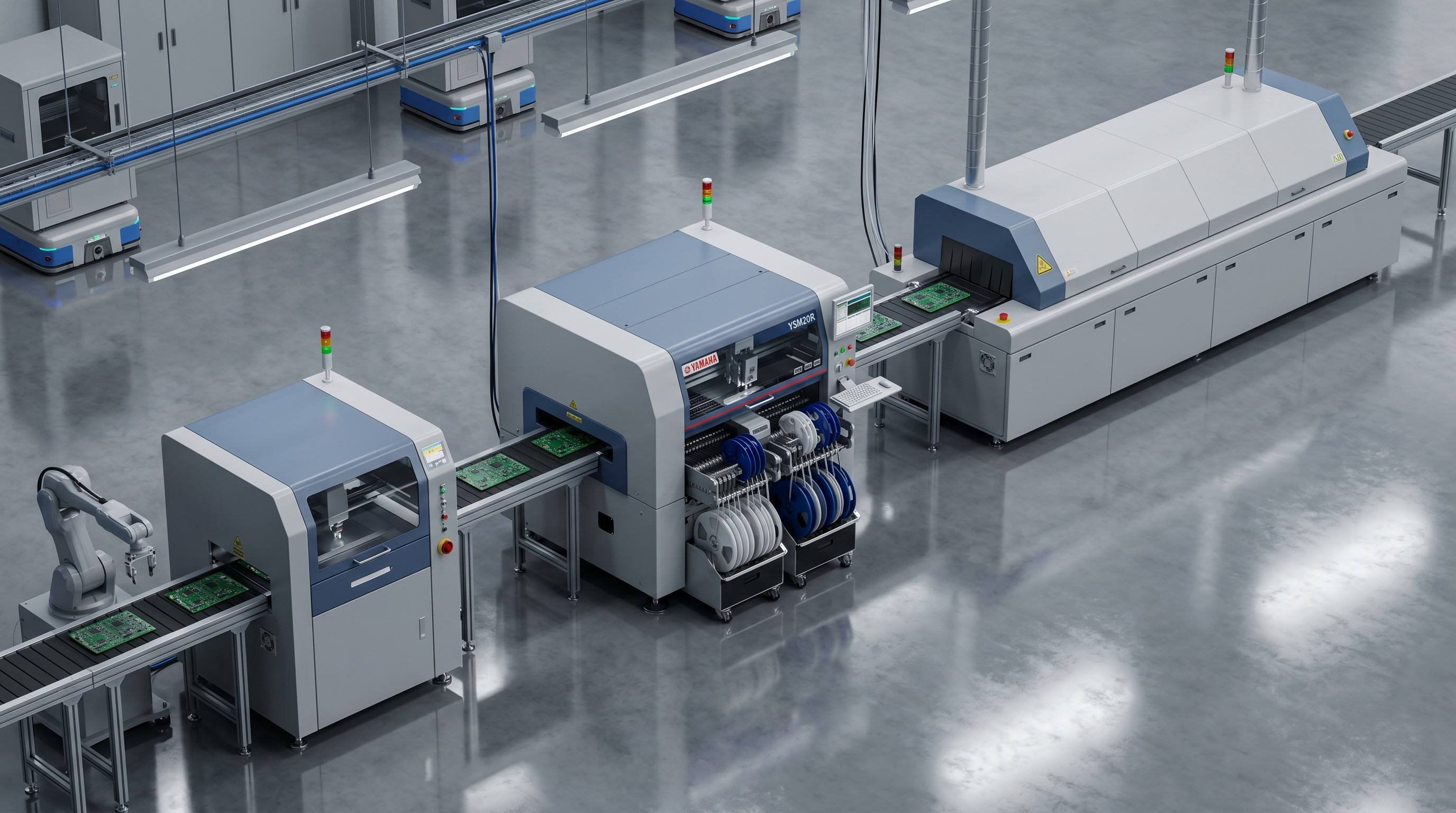

We don't just sell machines; we design workflows. Our engineers can configure a complete SMT line—including stencil printers, reflow ovens, and AOI inspection—tailored to your specific product dimensions and throughput goals.
Every factory is different. We offer customized service contracts that range from "Turn-key Setup" (where we handle everything from installation to staff training) to "Ongoing Optimization" (regular maintenance and software updates to keep your YSM20 at peak performance).
With a presence in multiple countries, Wenzhan provides 24/7 technical support. Whether it’s a remote diagnostic or an on-site repair, our team ensures that your production line stays up and running.
The YAMAHA YSM20 (Z:LEX) is the bridge between today’s challenges and tomorrow’s opportunities. By choosing the YSM20 and partnering with Wenzhan, you are not just buying a pick and place machine—you are investing in a more agile, precise, and profitable future.
Are you ready to revolutionize your SMT line? Contact Wenzhan today for a free consultation and a customized SMT solution proposal.
