Transitioning a printed circuit board from a digital design to a fully assembled physical product requires absolute precision. At the heart of this complex transformation is pick and place machine programming. Whether you manage a small-batch prototype lab or direct a high-volume manufacturing floor, the robotic equipment needs exact instructions. The machine must know exactly what component to pick, where to place it, and at what specific orientation. Translating raw engineering data into flawless machine-readable instructions is the only way to achieve this. We will walk you through the exact files required, the step-by-step programming workflow, and equipment optimization strategies.
Pick and place programming is the methodical translation of a digital circuit design into a sequence of physical, mechanical movements. The programming software acts as the central nervous system of the assembly process. It dictates how the robotic mounting head navigates the X and Y axes. It tells the machine which specific vacuum nozzle to select for a given component. Furthermore, it identifies which feeder slot holds the required part. Without this meticulously crafted data, even the most advanced robotic assembly systems become useless. They rely entirely on the provided coordinates to calculate their physical trajectory.
Industry standard practices generally divide this programming into online and offline methodologies. Online programming involves teaching the machine manually using its built-in interface, teach pendant, and downward-looking camera system. An operator physically jogs the machine head to each placement location on a bare board to record the coordinates. This hands-on approach can be effective for extremely simple boards. However, it forces the machine to halt production during the setup phase, leading to costly downtime. For agile environments, utilizing a Desktop Pick And Place Machine with intuitive teaching features can somewhat mitigate this delay during prototyping.
In stark contrast, offline programming has become the definitive standard for modern manufacturing. Engineers utilize dedicated computer-aided manufacturing software on a separate workstation to process engineering data. The software automatically generates placement coordinates, optimizes the routing path, and assigns feeders. Once the program is finalized, it is pushed to the machine via a network connection.
Looking at broader manufacturing trends, the surface mount technology sector is experiencing a rapid shift toward AI-assisted offline programming. Modern algorithms and digital twin simulations now predict feeder bottlenecks and collision risks before a single board is populated. This predictive capability allows the assembly line to continuously run current jobs while the next product is being prepared in a virtual environment. Smart factories are leveraging these data-driven insights to push overall equipment effectiveness to unprecedented levels.
To successfully program any assembly equipment, process engineers must provide specific datasets. These critical files bridge the gap between electrical engineering design and mechanical assembly.
The Bill of Materials serves as the foundational document of circuit board assembly. It is a comprehensive, highly structured list of every single component required to populate the bare board. The programming software requires this document to be formatted correctly, typically as a clean CSV or Excel spreadsheet. Crucial data points extracted from this list include unique reference designators, exact manufacturer part numbers, and physical package sizes. This data ensures the machine is loaded with the correct electrical values and knows precisely which nozzle to deploy.
While the component list dictates what to place, the Centroid file tells the machine exactly where to place it. Frequently referred to as a Component Placement List or XY Data, this file provides the spatial map for the robotic head. It calculates the exact geometric center of every surface-mount component. A standard Centroid file must include the reference designator to cross-reference with your component list. It also requires the physical X and Y coordinates relative to the board origin point, the required rotation angle, and the designated layer indicating top or bottom placement.
Assembly machines do not directly read standard Gerber files to place components. Gerbers are essentially two-dimensional image layers used strictly for fabricating the bare fiberglass board. Modern programming environments heavily rely on intelligent CAD formats like ODB++ or IPC-2581 instead. These advanced formats contain integrated component and coordinate data to streamline importation. Engineers frequently utilize Gerber viewers during the programming phase to verify fiducial mark locations, check diode polarities, and visually confirm that the imported centroid coordinates align perfectly with the exposed copper pads.
Translating raw engineering data into a humming, active assembly line requires a highly systematic approach. The following workflow outlines the standard operating procedure for programming modern assembly equipment.
The entire process begins with rigorous data hygiene. Engineers must meticulously clean the spreadsheets, ensuring there are no missing fields, hidden characters, or formatting anomalies. Once the data is pristine, it is imported into the machine software. The system then merges the component list and Centroid files. This step digitally links the physical XY coordinates to the specific part numbers via their shared reference designators.
This phase is arguably the most critical step in the entire programming sequence. The imported parts must be accurately linked to the internal component library of the machine. This centralized database contains the physical parameters of every part, including its length, width, Z-axis thickness, and lead pitch. If a new custom component is introduced, the engineer must define these dimensions manually using digital calipers.
Handling complex microprocessors requires specific attention here. For instance, when setting up an IC Tray Pick And Place Machine, the library must define the exact matrix spacing of the waffle tray. The vision algorithm must also be instructed to inspect the individual solder balls of a BGA rather than just the outer plastic dimensions.
Once the machine understands the physical geometry of the components, it needs to know exactly where to find them on the factory floor. The software assigns specific components to designated feeder slots on the carriage. Intelligent feeder allocation strategies maximize efficiency. Frequently used components, such as standard decoupling capacitors, are grouped together and placed as close to the conveyor as possible. This drastically minimizes the distance the robotic head must travel.
Printed circuit boards are never loaded into the conveyor system with microscopic perfection. The machine relies on fiducial marks to compensate for mechanical shifts. These are small, exposed copper dots designed into the board. The engineer programs the downward-looking camera to recognize these global fiducials. The vision system calculates the exact X, Y, and rotational offset of the physical board, mathematically adjusting the entire placement program in real-time.
With the data matched and feeders physically assigned, the software takes over to calculate the most efficient path for the placement head. This step acts as an automated solution to the classic traveling salesperson problem. It is specifically designed to minimize head travel distance and reduce the overall cycle time per board. Engineers run a virtual simulation within the software to catch potential collisions, verify nozzle availability, and identify erratic movements before sending the program to the production floor.
The final step before mass production is physical verification. The operator runs a single bare board through the machine. Double-sided tape is often utilized instead of active solder paste so components can be easily removed if errors occur. This First Article is then meticulously inspected under a microscope or an automated optical inspection machine. Engineers rigorously check for correct rotation, polarity alignment, and precise X/Y centering before officially approving the program.
While the core principles of data extraction remain consistent, specific software workflows and optimization strategies must be carefully adapted based on the hardware architecture being utilized on your floor. Selecting the right equipment and programming strategy is vital for operational efficiency.
Below is a core comparison table detailing how programming parameters shift across different equipment grades:
| Equipment Category | Key Programming Parameters & Features | Ideal Production Scenario |
|---|---|---|

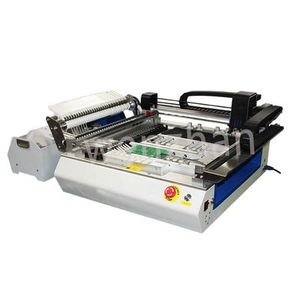

| Desktop / Compact Models | Simplified vision teaching, manual tape advance inputs, sequential run programming due to limited feeder slots. | Prototyping, maker spaces, low-volume agile manufacturing. |
| IC Tray Specialists | Advanced matrix coordinate mapping, automated tray elevator logic, high-resolution upward vision for fine-pitch leads. | Boards densely populated with microprocessors, FPGAs, and moisture-sensitive components. |
| Industrial Multi-Head Mounters | 8-head vertical optimization, dynamic feeder allocation across multiple modules, full AI route simulation. | High-speed, high-mix factory floors demanding maximum throughput. |
For high-speed, high-mix manufacturing, factories rely on the robust architecture of an industrial SMT Pick And Place Machine. Programming these heavy-duty, 8-head vertical systems is highly complex. The focus shifts dramatically toward multi-head optimization, where a single gantry carries numerous nozzles simultaneously. The software dynamically allocates feeders across multiple machine modules in a single line to perfectly balance the workload.
Achieving high yield rates heavily relies on the software ecosystem driving your assembly line. Generally, the software used falls into two primary categories: original equipment manufacturer tools and third-party computer-aided manufacturing platforms.
Proprietary programming interfaces are designed specifically for their own hardware architectures, offering flawless integration. They understand the exact kinematics of the robotic mounting heads and the specific camera resolutions. However, if a manufacturing facility operates a mixed line with equipment from multiple different vendors, relying solely on proprietary software creates dangerous data silos.
To solve the issue of mixed-equipment environments, smart factories utilize third-party software acting as universal translators. Industry-leading platforms ingest raw design files and translate that data into the specific machine code required by almost any brand on the floor. There is a growing industry trend where these third-party tools are deeply integrated with cloud-based manufacturing execution systems. This integration allows for real-time inventory tracking, component traceability, and predictive maintenance across the entire factory.
Even with sophisticated software and pristine design data, programming errors can occasionally halt production. Understanding these common pitfalls allows process engineers to implement preventative measures and resolve issues swiftly during the initial setup.
The most frequent programming error encountered is component rotation and polarity mismatches. A component might be placed 90 degrees or 180 degrees off its intended axis, leading to reversed polarities on diodes or integrated circuits. This typically stems from a discrepancy between the digital CAD library and the physical packaging of the component governed by EIA-481 tape-and-reel standards. If the digital zero-degree orientation does not match the physical packaging orientation, the machine will place the part incorrectly. Programmers must visually verify these polarities during the first run and manually apply rotation offsets.
Z-axis height issues are another common culprit for production delays. If a part is programmed with an incorrect thickness in the component library, the machine will either drop the part from too high or drive the part too forcefully into the board. Dropping a part causes it to bounce or tombstone during reflow. Driving it too hard can crack fragile ceramic capacitors. Verifying digital datasheets against physical caliper measurements during library creation is absolutely essential to prevent these impact failures.
Finally, fiducial recognition failures can cause a machine to stop entirely. The vision system may fail to locate the copper reference points due to poor machine lighting, oxidized copper pads reducing contrast, or simply entering the wrong centroid coordinates. Adjusting the camera ring light angles, tweaking coaxial lighting intensity, or changing the recognition algorithm from a strict shape-match to an edge-detection protocol usually resolves these optical issues.
Optimizing your programming workflow is an ongoing process of refinement. Implementing standardized best practices ensures that every new product introduction is smoother and faster than the last. It eliminates the guesswork that often plagues the assembly floor.
First, standardize your design outputs. The efficiency of machine programming begins in the engineering department. Designers should consistently export coordinate data from the exact same origin point, typically the bottom-left corner of the board outline. Inconsistent origins force manufacturing engineers to calculate mathematical offsets manually, introducing a high risk of human error.
Maintain strict hygiene within your component library. Treat this database as the holy grail of your production line. Remove duplicate entries, audit component heights regularly, and lock verified data entries so they serve as a reliable baseline for all future assemblies. A clean library drastically reduces the time spent defining custom parts.
Foster open communication with your layout designers. A robust design for manufacturing feedback loop is essential. Insist on clear, unambiguous polarity markings on the silkscreen layer. A highly visible dot indicating Pin 1 on a microchip, or a bold line for a cathode, allows the machine operator to instantly verify placement accuracy during the critical first article inspection.
A centroid file, frequently referred to as a Component Placement List or XY data file, is a critical digital document used in automated manufacturing. It contains the exact spatial coordinates for the geometric center of every surface-mount component on a printed circuit board. In addition to physical coordinates, it includes the required rotation angle and the specific board layer, acting as the primary navigational map for the robotic placement head.
Yes, it is technically possible, but it is a highly inefficient and labor-intensive process. Without the digital coordinate map provided by CAD or Centroid data, an operator is forced to perform manual online programming. This involves using the machine camera and a joystick to physically drive the placement head to every single pad on a blank circuit board to record coordinates. While viable for extremely simple prototype boards, it is entirely impractical for modern, high-density electronics.
The time required depends entirely on the quality of the input data and the state of your component library. If you are utilizing clean CAD data, a well-maintained component database, and advanced offline programming software, a highly complex board can often be programmed and simulated in 30 minutes to a few hours. Conversely, if the component list is poorly formatted or you must rely on manual visual teaching, setting up the exact same board could take several days.
Pick and place machines utilize two main types of software. The first is OEM proprietary software built directly into the machine interface, used for machine control, vision teaching, and basic program adjustments. The second is offline Computer-Aided Manufacturing software installed on external workstations. These offline platforms translate raw CAD, Gerber, and BOM data into the specific machine code required for assembly.
Camera calibration involves teaching the machine the exact spatial relationship between the camera lens, the placement nozzle, and the board surface. Engineers run a calibration routine using a specialized glass calibration jig or a board with high-contrast geometric markers. The system captures multiple images at different lighting angles to map out optical distortions, ensuring the X, Y, and Theta coordinates perfectly align with physical reality.
This phenomenon is the single most common programming error encountered on the assembly floor. It usually occurs because there is a fundamental disconnect between the digital design environment and the physical packaging of the component. The zero-degree orientation defined in the CAD software often differs from how the physical component is loaded into the tape-and-reel packaging by the manufacturer. Programmers must catch these discrepancies during the first test run and manually adjust the rotation offsets in the software to correct the alignment.
